IP67 Waterproof Power supply
12V / 24V IP67 Power Supply
1)non-dimmable
2)short circuit, overload, overvoltage, over temperature, over-current automatic protection
inShareplus, devoted to LED lighting products manufacturing and developing since 2010, focused on LED Ceiling Light,Low Voltage Power Supply (6V 12V 24V), LED Under Cabinet Light, LED Open Sign,UV light, LED Aluminum Channel, All products are widely used in commercial, industrial, residential lighting. With high quality, we are greatly appreciated in a variety of different markets throughout the world.
inShareplus Power Supply
24V/12V Switching Power Supply
24V Waterproof Power Supply
12V IP67 Power Supply
12V 300W Waterproof Power Supply

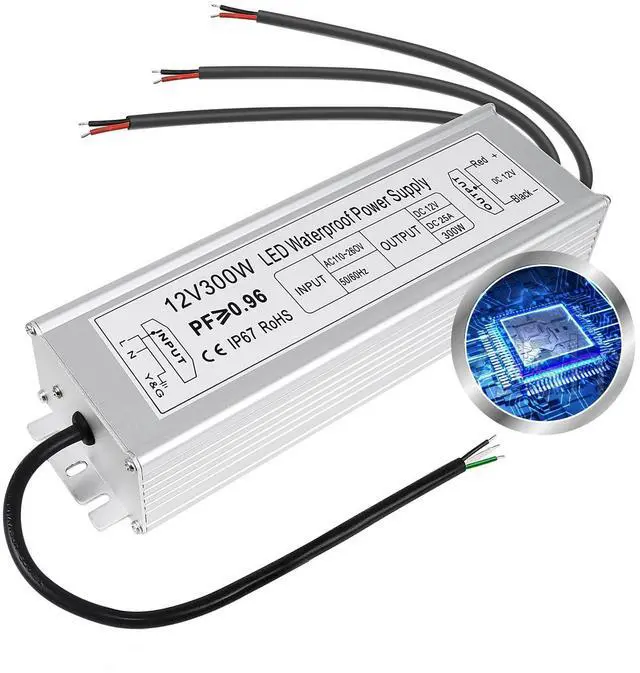

InShareplus 12V 25A 300W waterproof dc power supply is constant voltage power supply; Compatible with LED light bars, surveillance cameras, LED display lights; Indoor and outdoor lamps; Advertising signs; Wireless routing etc
- The total wattage of outdoor lights or other items shall not exceed the maximum wattage of the power supply (300W)
- 12V LED waterproof power driver cannot be dimmable, and cannot be used together with dimmer and constant current lamp
- Average power score - Line 18 is used for power supply; There are three output lines, each with the same power (100W)

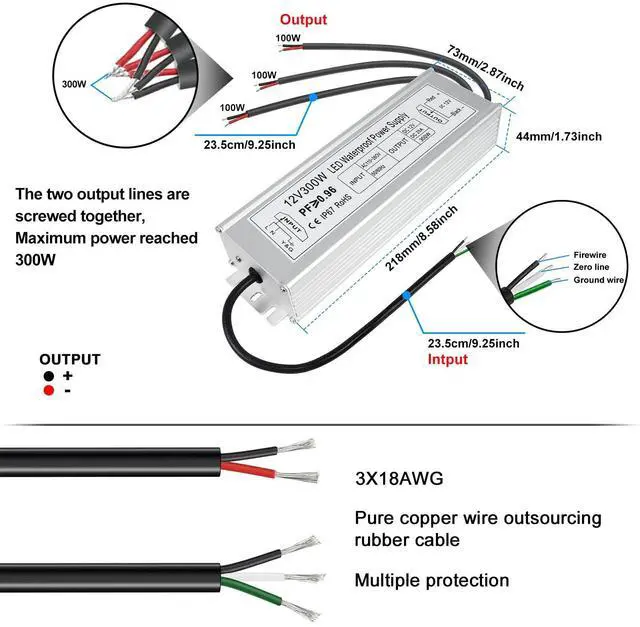

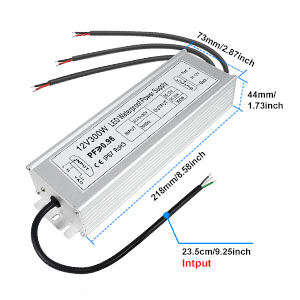

- The output lines of the same power supply can be used in parallel, and the positive and negative poles of the three output lines can be connected accordingly (red line to red line, black line to black line). There are three wires on the output end, each with a red wire and a black wire. The maximum output power of each wire is 100W. If you want to use an output higher than 100W, you need to connect the three wires together by twisting the red wire with the other red wire, and the black wire with the other black wire. The red wire is the live wire, and the black wire is the neutral wire. Please note that in order to prevent the power supply from working at full load, keep the power usage around 80%.
12V 25A 300W Waterproof DC Power Supply Suitable for 12V LED projects, computer projects, outdoor use,LED strip lights

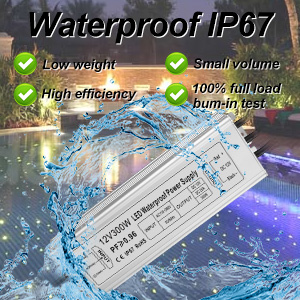

Waterproof IP67

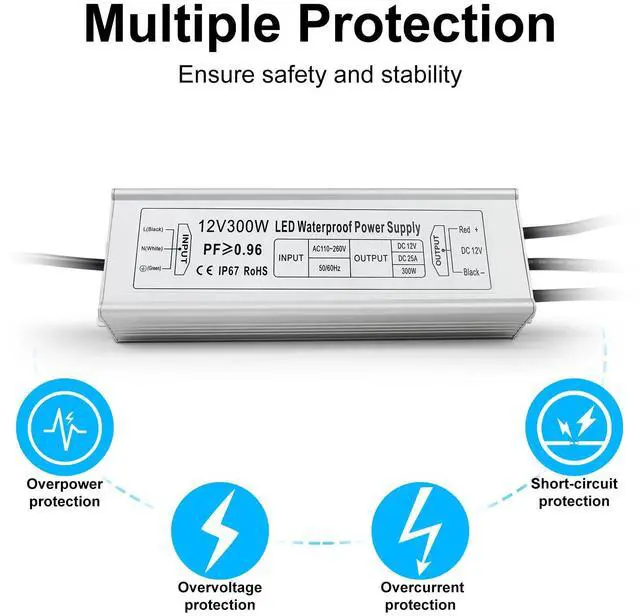

- Protection function: short circuit, overload, overvoltage, over temperature, over-current automatic protection;
- Protection type: Hiccup mode, automatic recovery after troubleshooting;
- Aluminum alloy metal shell, easy to dissipate heat and ensure stability;
- 100% full load aging test. Small size, light weight, working efficiency up to about 86%
- Natural air convection cooling, IP67 fully sealed package
Specifications
- Input voltage range: 110-260V AC 50/60HZ
- Output power: 300W
- utput: 12V DC 25AW
- waterproof: IP67
- Work efficiency: 86%
- Operating temperature: - 20~+60 ? 20%~90% RH (non condensing)
Wide application
Suitable for LED light strip; Security camera; Computer project; Outdoor lamp; Interior lamps; Industrial use; LED display lights and any other 12V DC LED lights
Warm Tips !
Do not disassemble or modify the LED light source !
Keep children away from high-voltage power supply !
Please use it under the guidance of professional electricians !

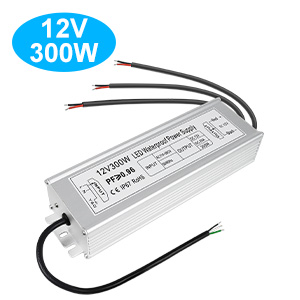

12V 300W Waterproof Power Supply
InShareplus 12V 25A 300W waterproof dc power supply is constant voltage power supply; Compatible with LED light bars, surveillance cameras, LED display lights; Indoor and outdoor lamps; Advertising signs; Wireless routing etc
- The total wattage of outdoor lights or other items shall not exceed the maximum wattage of the power supply (300W)
- 12V LED waterproof power driver cannot be dimmable, and cannot be used together with dimmer and constant current lamp
- Average power score - Line 18 is used for power supply; There are three output lines, each with the same power (100W)
- The output lines of the same power supply can be used in parallel, and the positive and negative poles of the three output lines can be connected accordingly (red line to red line, black line to black line). There are three wires on the output end, each with a red wire and a black wire. The maximum output power of each wire is 100W. If you want to use an output higher than 100W, you need to connect the three wires together by twisting the red wire with the other red wire, and the black wire with the other black wire. The red wire is the live wire, and the black wire is the neutral wire. Please note that in order to prevent the power supply from working at full load, keep the power usage around 80%.
12V 25A 300W Waterproof DC Power Supply Suitable for 12V LED projects, computer projects, outdoor use,LED strip lights
Waterproof IP67
- Protection function: short circuit, overload, overvoltage, over temperature, over-current automatic protection;
- Protection type: Hiccup mode, automatic recovery after troubleshooting;
- Aluminum alloy metal shell, easy to dissipate heat and ensure stability;
- 100% full load aging test. Small size, light weight, working efficiency up to about 86%
- Natural air convection cooling, IP67 fully sealed package
Specifications
- Input voltage range: 110-260V AC 50/60HZ
- Output power: 300W
- utput: 12V DC 25AW
- waterproof: IP67
- Work efficiency: 86%
- Operating temperature: - 20~+60 ? 20%~90% RH (non condensing)
Wide application
Suitable for LED light strip; Security camera; Computer project; Outdoor lamp; Interior lamps; Industrial use; LED display lights and any other 12V DC LED lights
Warm Tips !
Do not disassemble or modify the LED light source !
Keep children away from high-voltage power supply !
Please use it under the guidance of professional electricians !
