Switching power supply with linear power supply ripple

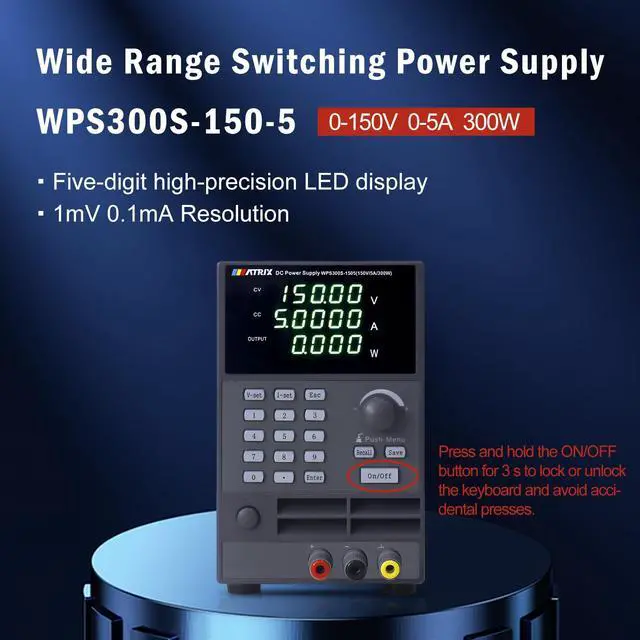

The WPS300S series wide range programmable DC power supplies are switching power supplies but have the same low ripple and noise as linear DC power supplies.
The WPS300S-150-5 has a ripple of < 10mVrms < 3mArms, and the WPS300S-80-10 has a ripple of < 8mVrms < 5mArms. Enhances bench power supply stability and ensures efficient dc power supply operation.

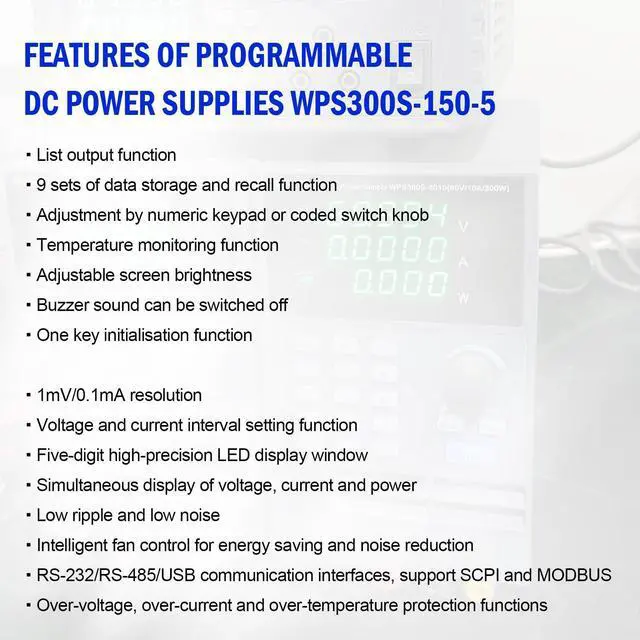

WPS300S DC POWER SUPPLY FEATURED FUNCTIONS
MATRIX DC POWER SUPPLIES
 WPS300S-150-5 |  WPS300S-80-10 |  MPS-100 DC Power Supply |  MPS-100C DC Power Supply |  MPS-3264 DC Power Supply |  MPS-3005H-3 Power Supply | |
|---|---|---|---|---|---|---|
Customer Reviews | — | — | — | — | — | — |
Price | — | — | — | — | — | — |
Rated input voltage | AC 220V/110V ± 10% | AC 220V/110V ± 10% | AC 110V ± 10% | AC 110V ± 10% | AC 110V ± 10% | AC 220V/110V ± 10% |
Rated output | 0-150V/ 0-5A | 0-80V/ 0-10A | 0-30V/ 0-5A | 0-30V/ 0-5A | 0-32V/0-6A+2.5/3.3/5V/3A+5V/2A | 0-30V/0-5A+ 5V/3A |
Rated output power | 300W | 300W | 150W | 150W | 409W | 315W |
Swtiching or Linear | Swtiching DC POWRE SUPPLY | Swtiching DC POWRE SUPPLY | LINEAR DC POWER SUPPLY | LINEAR DC POWER SUPPLY | Swtiching DC POWRE SUPPLY | LINEAR DC POWER SUPPLY |
Interface | RS-232, RS-485, USB | RS-232, RS-485, USB | None | RS-232, RS-485 | None | None |
Setting resolution | 1mV 0.1mA | 1mV 0.1mA | 1mV 0.1mA | 1mV 0.1mA | 10mV 1mA | 10mV 1mA |
Ripple and noise | 10mVrms 3mArms | 8mVrms 5mArms | 5mVrms 3mArms | 5mVrms 3mArms | 10mVrms 5mArms | 2mVrms 5mArms |
Size(inch) | 4.4*6.7*9.8 | 4.4*6.7*9.8 | 7.3*4.1*11.6 | 7.3*4.1*11.6 | 8.7*5.9*13 | 9.8*5.9*13 |
Weight(lb) | 4.4 | 4.4 | 9.9 | 9.9 | 7.7 | 19.8 |
MATRIX
Reliable, durable, and stable power supply
ABOUT MATRIX
MATRIX is an innovative enterprise founded in 2003, that focuses on the research and development of DC power supplies, providing our users with more reliable, durable, and stable products. Certified by authoritative organizations such as CE, ROHS, and KC.
Our service
Matrix offers a 3-year of after-sales service for all MATRIX-branded products.
When did we start?
We dedicated in researching, developing, producing and selling of DC power supplies since 2003.
What makes our products unique?
Technologically, there are some new designs such as preset current without short circuits, intelligent temperature control fan, coded switch, independent control of each channel, and getting into series or parallel mode by pressing one key, etc.
Our philosophy
Value first, quality is fundamental, and customers are supreme.
