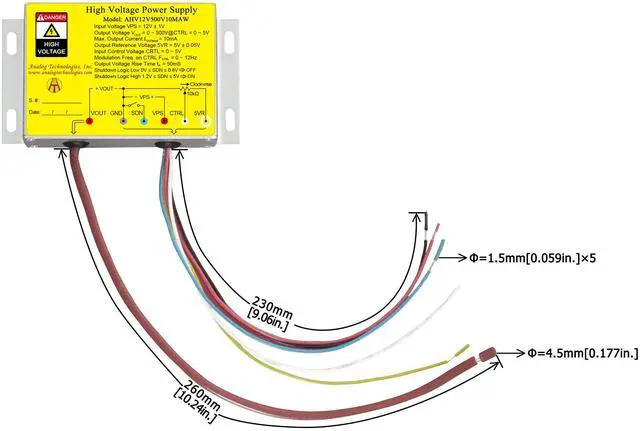

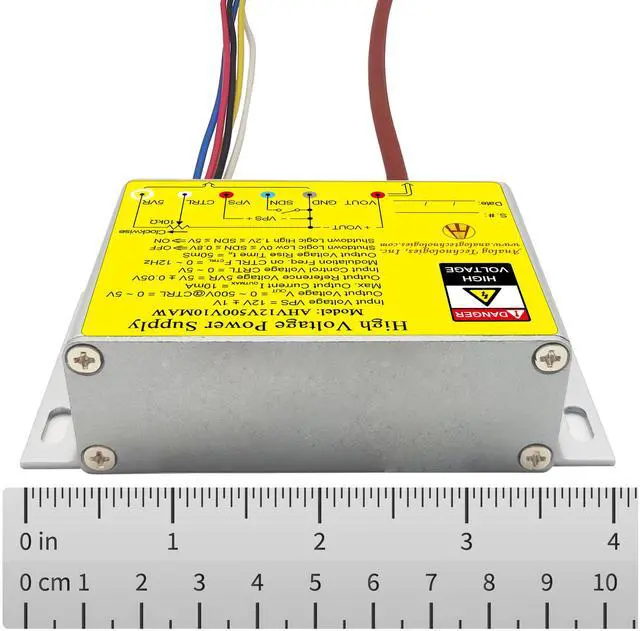

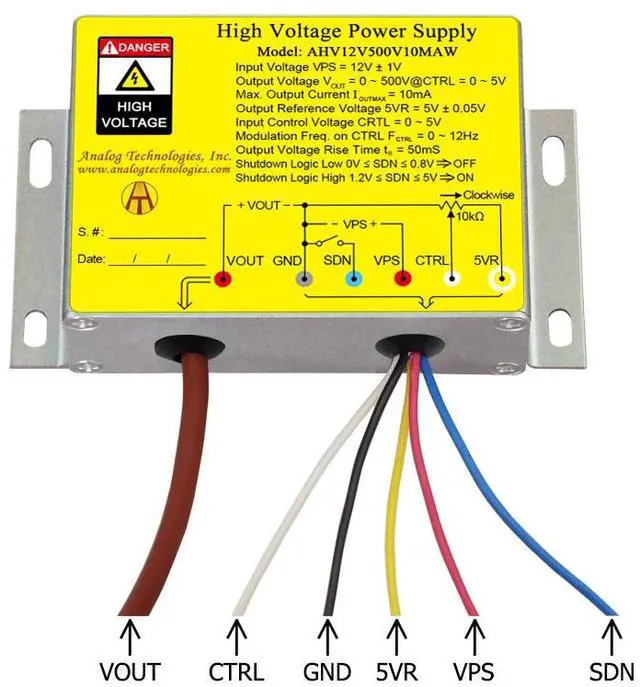

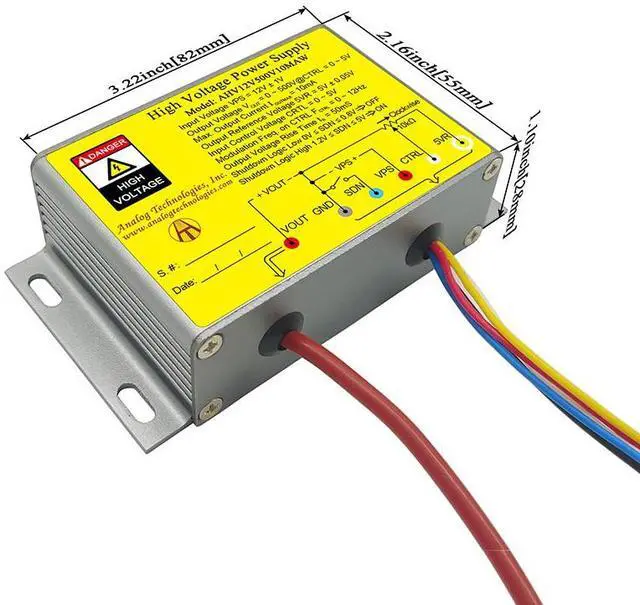

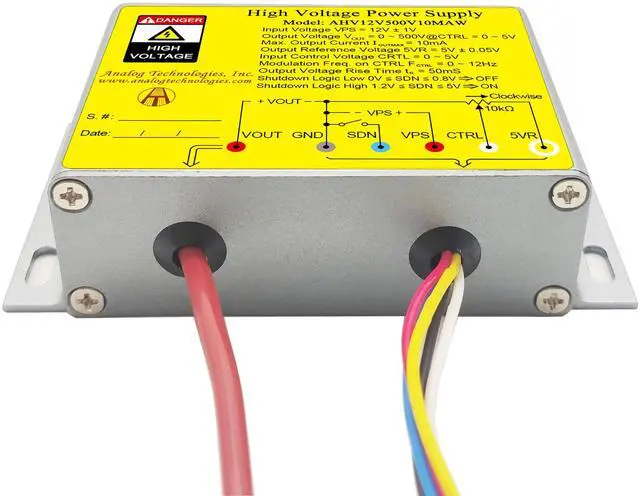

AHV12V500V10MAW DC-DC HV Power Supply Module 12V Input 0-500V 10mA Control
- Engineered for reliability: Designed to deliver consistent power output, ensuring stable performance for industrial applications.
- Robust construction: Built with high-quality materials to withstand demanding environments and extend operational lifespan.
- Precision voltage regulation: Maintains accurate voltage levels to protect sensitive industrial equipment from power fluctuations.
- Easy integration: Compact form factor and standardized connectors enable seamless installation into existing systems.
- Manufacturer assurance: Backed by Analog Technologies, Inc., ensuring trusted quality and dependable support.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
FEATURES
Input Power Voltage: 12V ± 1V
Input Current Range: 140mA to 600mA
Output Voltage: 0 to 500V@CTRL = 0 to 5V
Max. Output Current: 10mA
Reference Voltage: 5V ± 0.05V
Input Control Voltage: 0 to 5V
Electronic Shutdown Control Available
Zero EMIs and Good Heat Sinking by Metal Enclosure
APPLICATIONS This power module, AHV12V500V10MAW, is designed for achieving DC-DC conversion from low voltage to high voltage as a power supply source. It can be used for:
X-ray Machine
Spectral Analysis
Nondestructive Inspection
Semiconductor Manufacturing Equipment
Particle Accelerator
Capillary Electrophoresis
Particles Injection
Physical Vapor Phase Deposition
Electrospinning Preparation of Nanofiber
Glass / Fabric Coating
DC Reactive Magnetron Sputtering
