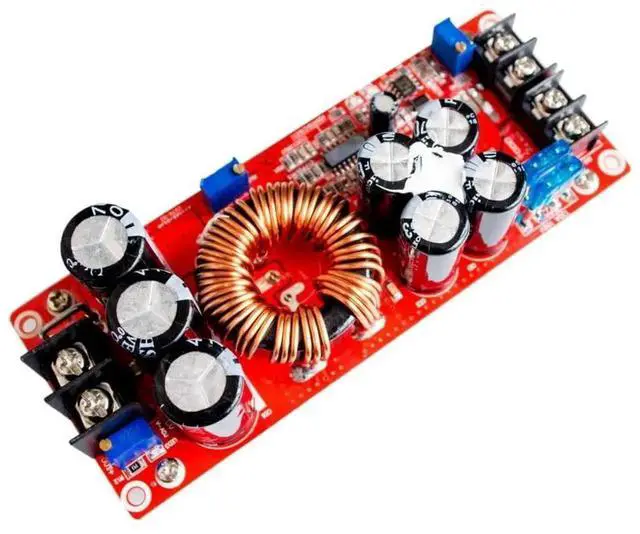

1200W 20A DC-DC Boost Converter, 8-60V to 12-83V Step-up Power Supply Module, CC/CV Adjustable Voltage Regulator with Heat Sink for Solar Panel, Car Battery Charging
Limited time offer, ends 07/30 By TechCore Supply
- 1200W high power, wide voltage input/output
- Input: DC 8-60V; Output: DC 12-83V continuously adjustable
- Maximum current: 20A; Peak power: 1200W (at 48V input)
- Conversion efficiency: 92% -97%, low power consumption, low heat generation
- Constant voltage/constant current (CC/CV) dual-mode
- Constant current range: 0.5-18A (± 0.3A), suitable for lithium battery charging
- Built in voltage/current regulating potentiometer, precise and controllable output
- Static current is only 15mA, low no-load loss
- Multiple protections, secure and stable
- Input reverse protection (150A MOS transistor), short circuit protection (40A fuse)
- Overcurrent/Overvoltage/Overheating Protection, Temperature Range * * -40 ~+85 **
- Low voltage protection (adjustable from 9-50V) to prevent battery over discharge
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
1200W 20A DC-DC Boost Converter is a high-power non-isolated step-up module designed for efficient voltage boosting and battery charging. With a wide input range of 860V DC and adjustable output of 1283V DC, it delivers up to 20A current and 1200W peak power, ideal for solar systems, electric bikes, car batteries, and industrial power supplies.
This module supports constant voltage (CV) and constant current (CC) modes, making it perfect for lithium battery charging. The built-in potentiometers allow precise adjustment of output voltage and current. With a high conversion efficiency of 92%97% and low quiescent current of 15mA, it saves energy and reduces heat generation.

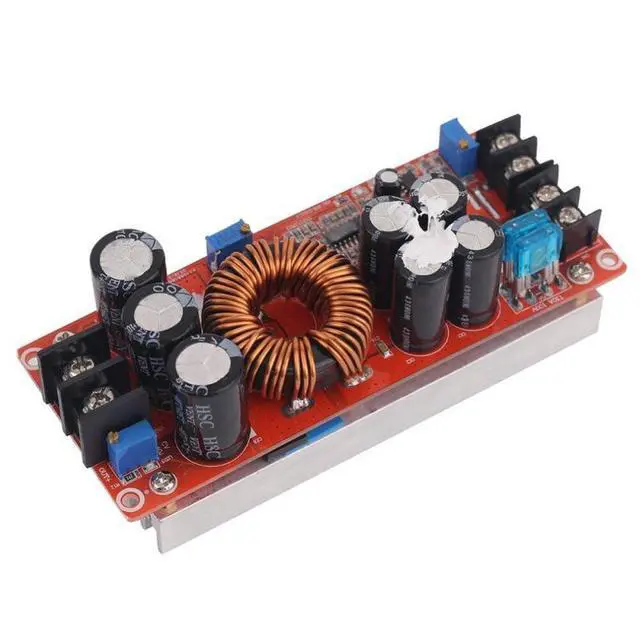

Equipped with a large aluminum heat sink and multiple protection featuresincluding reverse polarity, short circuit, overcurrent, overvoltage, and overtemperature protectionensures safe and stable operation even under heavy loads. The compact size and mounting holes enable easy installation in various projects.
Key Specifications:
- Input Voltage: DC 860V
- Output Voltage: DC 1283V (adjustable)
- Max Current: 20A
- Peak Power: 1200W
- Efficiency: 92%97%
- Mode: CC/CV (Constant Current/Constant Voltage)
- Protection: Reverse polarity, short circuit, overcurrent, overvoltage, overtemperature
- Size: 130 × 52 × 46mm
- Application: Solar panel, e-bike, car battery, laptop, industrial power
Package Includes: 1 × 1200W 20A Boost Converter Module (User manual not included)
