DC-DC Boost Converter, 10V-60V to 12V-90V 30A Step-up Power Supply Module, CC/CV Adjustable Voltage Regulator with Cooling Fan for Solar EV Battery Charger

AJMRTC DC-DC Boost Converter, 10V-60V to 12V-90V 30A Step-up Power Supply Module, CC/CV Adjustable Voltage Regulator with Cooling Fan for Solar EV Battery Charger

AJMRTC 30A DC Boost Converter, 10-60V Input 12-90V Output Step-up Power Module

AJMRTC High Power 30A Step-up Converter, 10-60V to 12-90V CC/CV DC Voltage Regulator Board for Industrial Equipment E-Bike Solar System

1. Wide Voltage Range & 30A High Current
2. Wide input voltage DC 10V-60V, adjustable output DC 12V-90V. Max continuous current up to 30A, delivers strong power output for heavy load applications. High conversion efficiency up to 92%~97%, low energy loss.
3. CC/CV Dual Working Modes
4. Supports Constant Current and Constant Voltage modes. Equipped with independent potentiometers to adjust output voltage, current and under-voltage protection. Perfect for various types of battery charging and stable power supply.
5. Smart Cooling System
6. Built-in temperature controlled cooling fan and large aluminum heat sink. Fan automatically turns on when temperature rises, effectively dissipating heat during long-time full-load operation, stable and durable.
7. Multiple Safety Protections
8. Comes with reverse polarity protection, short circuit, over current, over voltage, over temperature and low voltage protection. Effectively protects the module and connected devices, safe to use in complex working environments.
9. Wide Application Scenarios
10. Ideal for solar power system, electric bike, electric vehicle, car power supply, industrial equipment, high power LED driver, DIY adjustable power supply and other DC step-up projects.

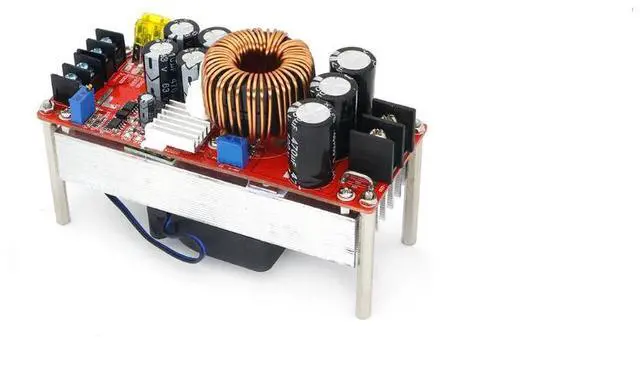

AJMRTC 30A DC-DC Step-up Boost Converter is a high-power non-isolated voltage lifting module. It accepts wide DC input from 10V to 60V, and provides continuously adjustable output voltage from 12V to 90V with maximum 30A output current.

This converter supports CC/CV dual modes, which is professional for lithium battery and lead-acid battery charging. With high conversion efficiency, it reduces heat generation and saves power consumption. The smart temperature-control fan plus thick aluminum heat sink ensures excellent heat dissipation performance, supporting stable 24-hour continuous operation.

Multiple built-in protection functions including reverse connection, short circuit, over current, over voltage, over temperature and under voltage protection greatly improve safety. Compact structure with reserved mounting holes is easy to install.
