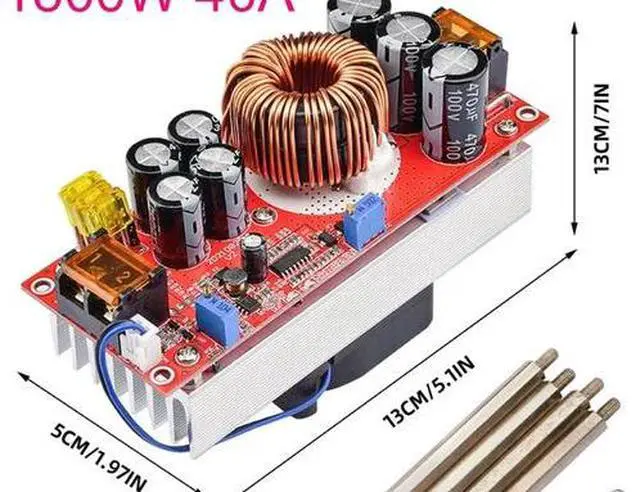

1800W 40A DC-DC Boost Converter, 10-60V to 12-90V Step-up Power Supply Module, CC/CV Adjustable Voltage Regulator with Smart Cooling Fan for Solar Panel, E-Bike, Battery Charging
- Input: DC 10-60V; Output: DC 12-90V continuously adjustable
- Maximum input current: 40A; maximum output current: 22A
- Peak power: 1800W; Conversion efficiency: 92% -97%
- Constant voltage/constant current (CC/CV) dual-mode, precise charging
- Constant current range: 0.8-20A (± 0.3A), suitable for lithium/lead-acid batteries

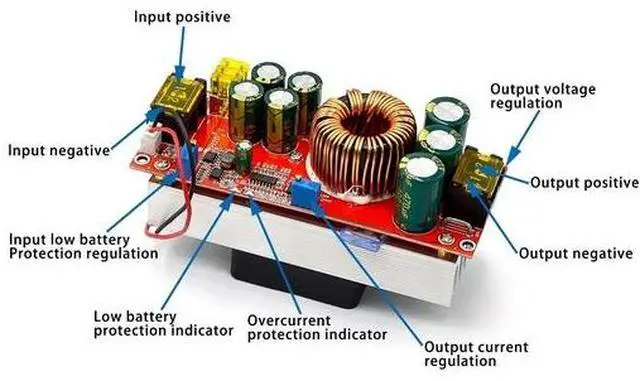

- Three turn potentiometer: voltage, current, and low voltage protection are independently adjustable
- Static current of only 15mA, low no-load loss, more energy-efficient
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
1800W 40A DC-DC Boost Converter is a high-power non-isolated step-up module designed for heavy-duty voltage boosting and battery charging. With a wide input range of 1060V DC and adjustable output of 1290V DC, it delivers up to 22A output current and 1800W peak power, ideal for solar systems, electric bikes, industrial equipment, and battery charging.
This module features constant voltage (CV) and constant current (CC) dual modes, making it perfect for lithium/lead-acid battery charging. The built-in precision potentiometers allow independent adjustment of output voltage, current, and low-voltage protection. With a high conversion efficiency of 92%97% and low quiescent current of 15mA, it minimizes energy loss and heat generation.

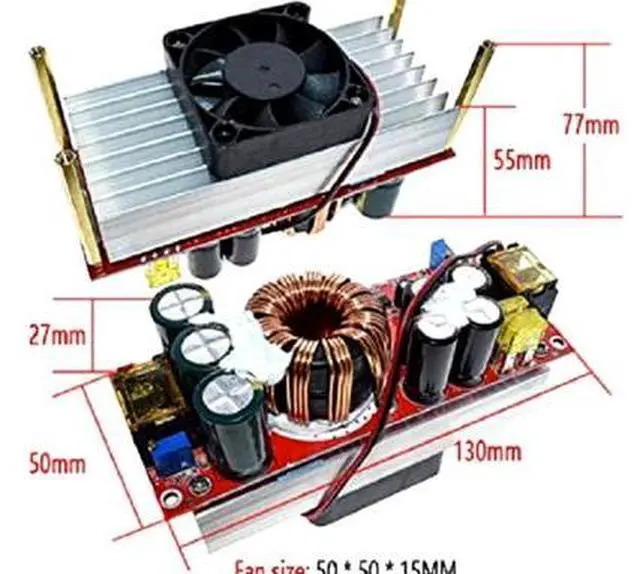

Equipped with a smart temperature-controlled fan (activates at 60°C) and a large aluminum heat sink, the module ensures stable operation even under full load. Multiple protection featuresincluding reverse polarity, short circuit, overcurrent, overvoltage, overtemperature, and undervoltage protectionguarantee safe and reliable performance in various applications.
Key Specifications:
- Input Voltage: DC 1060V
- Output Voltage: DC 1290V (adjustable)
- Max Input Current: 40A
- Max Output Current: 22A
- Peak Power: 1800W
- Efficiency: 92%97%
- Mode: CC/CV (Constant Current/Constant Voltage)
- Protection: Reverse polarity, short circuit, overcurrent, overvoltage, overtemperature, undervoltage
- Cooling: Smart temperature-controlled fan
