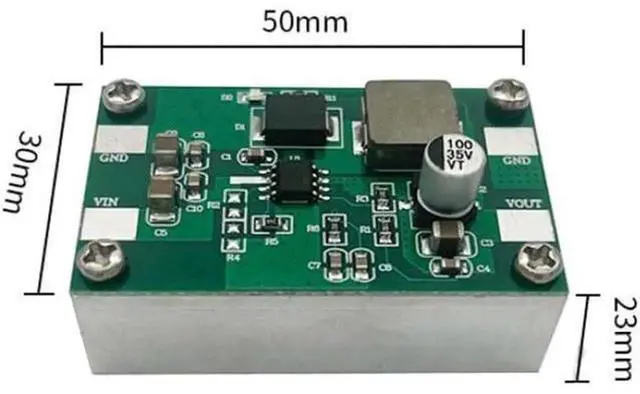

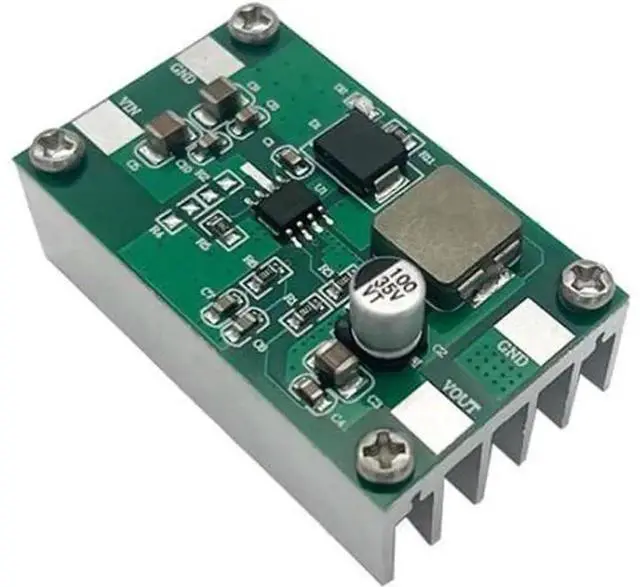

TPS54560 Step-Down Switching Power Supply Module, 15V Output High Current DC-DC Buck Converter Board, TPS54360 Compatible Adjustable Voltage Regulator Module for Industrial Equipment DIY Electronic Ci

This DC-DC buck switching power supply module uses TI TPS54560 main control chip and outputs stable 15V DC voltage, fully compatible with TPS54360 circuit solutions. It converts wide-range input direct current into constant 15V regulated voltage, providing reliable power supply for single-board computers, monitoring equipment, LED light strips, industrial control circuits and DIY electronic projects.

The TPS54560 chip features excellent load capacity and high energy conversion efficiency, greatly reducing heat generation compared with linear power supplies. The circuit board is equipped with optimized filter inductors and low-ESR capacitors to suppress voltage ripple, ensuring clean and steady output current without interference to sensitive electronic components.

Multiple safety protection functions are integrated on the module: overcurrent protection limits output current under overload conditions; overvoltage protection cuts off power when abnormal high voltage occurs; short-circuit auto-shutdown prevents chip burnout during wiring errors. All-round protection extends the service life of both the power module and connected loads.

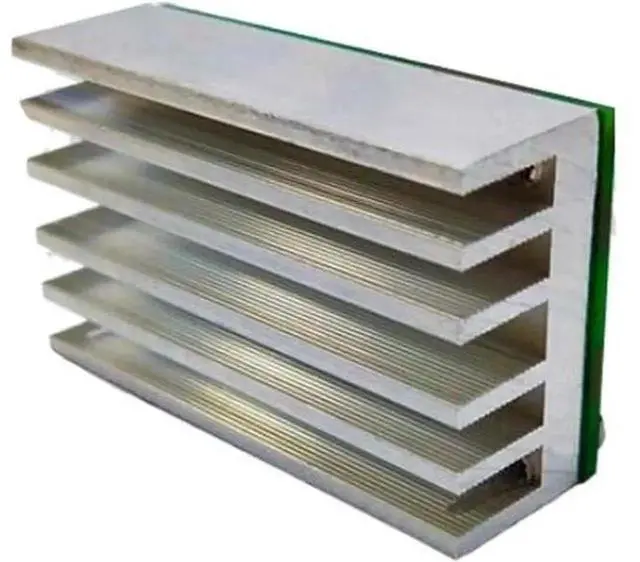

The module comes with a small auxiliary heat sink attached to the power tube, which accelerates heat dissipation during high-load continuous work and avoids overheating shutdown. Standard screw terminal blocks simplify input and output wiring, no complicated soldering required for quick installation.

It supports a broad DC input range and can be matched with vehicle power supplies, lithium battery packs and industrial DC adapters. Small size saves installation space inside equipment casings. Ideal replacement power module for old linear regulators, DIY robot power systems, surveillance camera power supply and laboratory circuit test benches.
