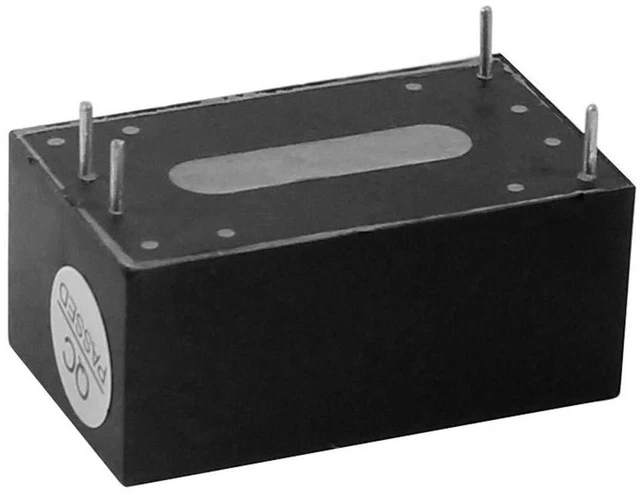

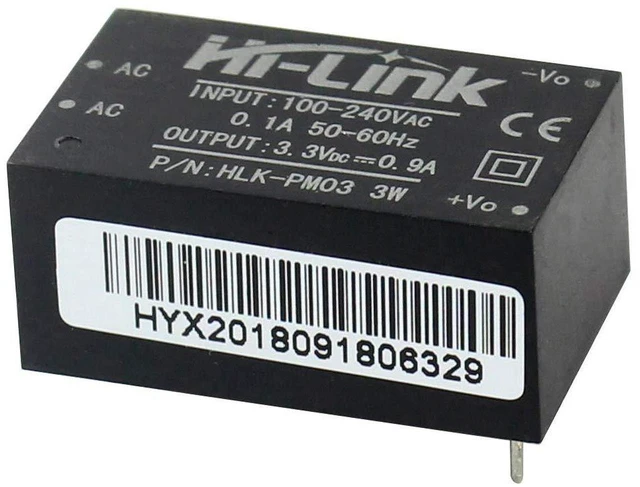

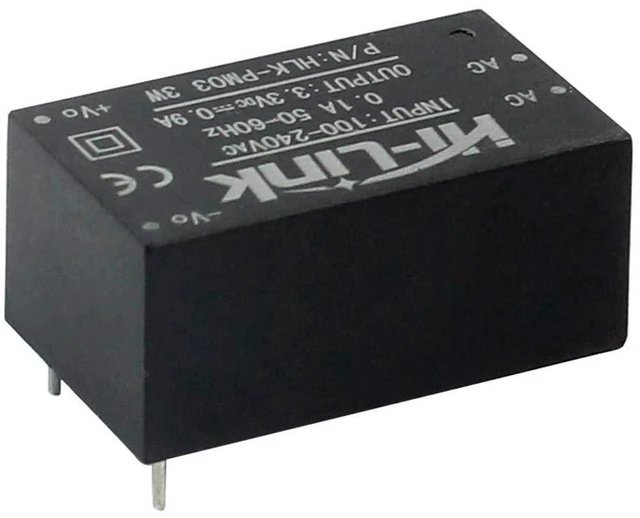

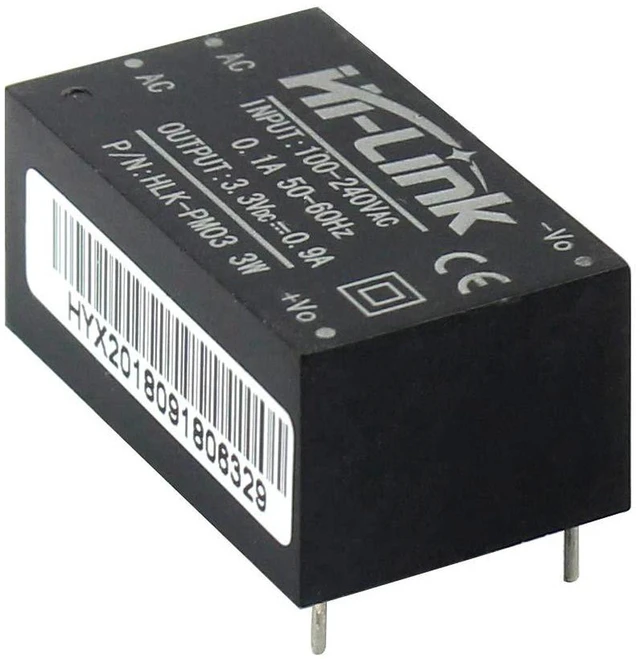

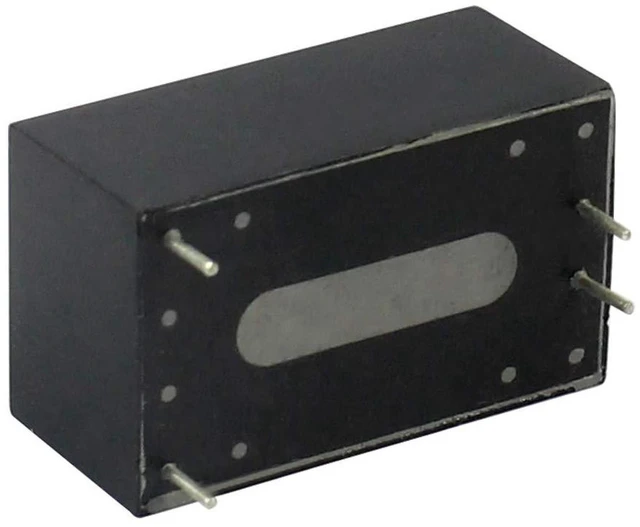

AJMRTC HLK-PM03 AC-DC Isolated Power Supply Module, 100-240V AC to 3.3V DC 3W Step Down Buck Switching Converter for Smart Home Switch, IoT Sensor, PCB Embedded Circuit
- - Wide universal AC input 100-240V, stable regulated 3.3V DC single output, rated 3W, max 1A
- - 3000VAC isolation between input and output, suppress ground loop noise for sensitive circuits
- - Compact fully encapsulated through-hole module, low ripple and low no-load power consumption <0.1W
- - Built-in short-circuit and over-current protection with automatic recovery after fault removal
- - CE, RoHS compliant, ideal for smart switches, IoT modules, small industrial control boards
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
AJMRTC HLK-PM03 isolated AC-DC power module converts mains AC voltage into clean 3.3V DC power for low-voltage electronics. The integrated isolation design separates high-voltage AC side and low-voltage DC side to improve circuit safety and anti-interference ability. It comes sealed in a mini plastic housing, ready for direct soldering onto PCBs. It is widely adopted in intelligent household switches, wireless sensors, relay drive circuits and other embedded low-power projects.
Specifications
- Brand: AJMRTC
- Model: HLK-PM03
- Input Voltage: 100~240VAC 50/60Hz
- Output: 3.3V DC, 3W, 1A max
- Isolation Voltage: 3000VAC
- Output Type: Regulated single channel
- Package: 4-pin through-hole encapsulated module
- Dimension: 34.8 × 20.5 × 15 mm
- No-load Loss: Less than 0.1W
- Protection: Short circuit, over current, auto recovery
- Certification: CE, RoHS
- Operating Temperature: -25 ~ +60
- Application: Smart home switch, IoT sensor, embedded PCB, relay drive, small industrial control
- Note: Non-waterproof; suitable for indoor fixed PCB installation only
