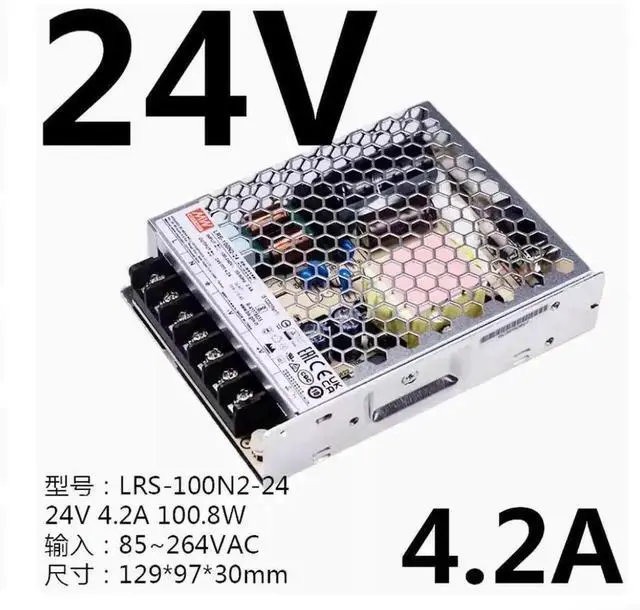

1PCS MEAN WELL LRS-100N2 Series 100W High Peak Power Switching Power Supply, Optional LRS-100N2-12/24/36/48V, 200% Peak Load, Natural Convection Cooling Industrial AC-DC Converter
- Original Mean Well LRS-100N2 100W enclosed power supply, supports 200% peak power for 5 seconds to handle motor and equipment startup inrush current
- Universal 85~264VAC wide AC input, withstands 300VAC surge voltage for 5 seconds with no damage, strong anti-interference performance
- Four voltage options available: 12V/8.5A, 24V/4.2A, 36V/2.8A, 48V/2.1A, all with 30mm ultra-thin 1U low-profile metal housing
- Fanless natural air cooling design, works reliably from -30 to +70, built-in short circuit, overload, overvoltage and overheat full protections
- High efficiency up to 90.5%, no-load power consumption below 0.5W, complies with UL, TUV, CE safety and EMC Class B standards
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
This is MEAN WELL LRS-100N2 series 100W single output industrial switching power supply, upgraded version of classic LRS series with prominent 200% short-time peak load capability, perfectly solving the overload tripping problem caused by instantaneous high current when driving motors, solenoids, LED strips and automation devices.
It adopts full-range 85-264VAC global mains input, compact 129×97×30mm slim metal mesh casing for passive heat dissipation without cooling fans, reducing failure points and extending service life. Complete multi-protection circuits guarantee stable 24/7 continuous operation in factory automation, security monitoring, LED lighting, control cabinets and electronic instruments.
Four fixed DC voltage models for selection: LRS-100N2-12, LRS-100N2-24, LRS-100N2-36, LRS-100N2-48. Fully certified by international safety regulations, ideal cost-effective enclosed power solution for various industrial and commercial DC power supply projects.
