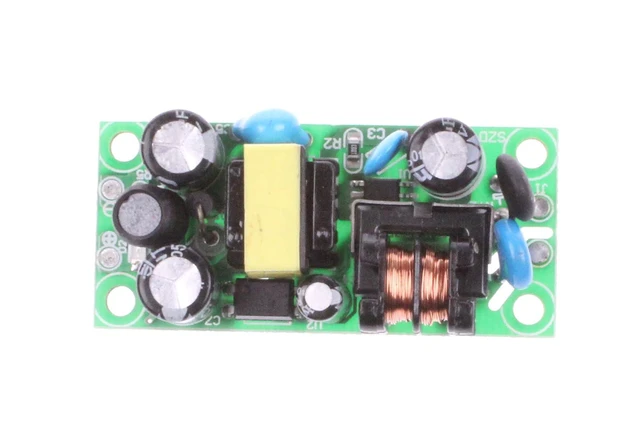

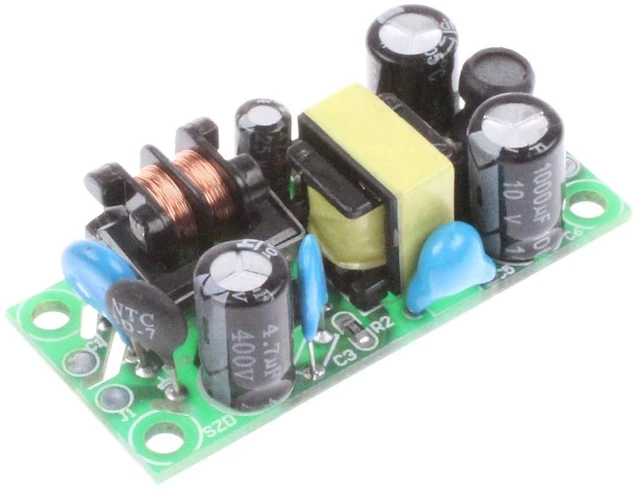

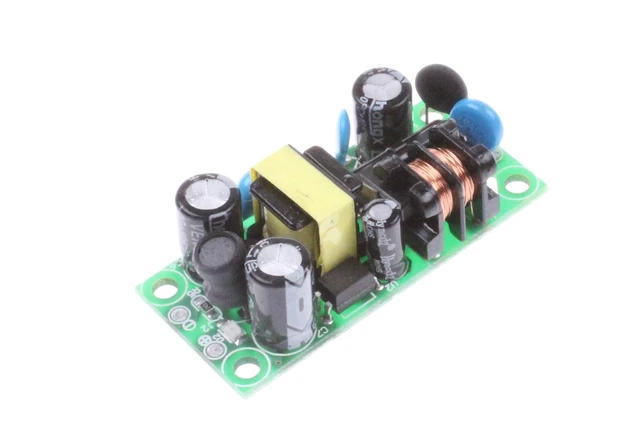

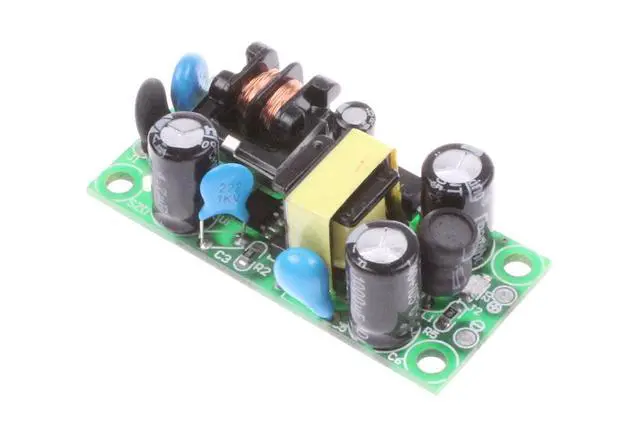

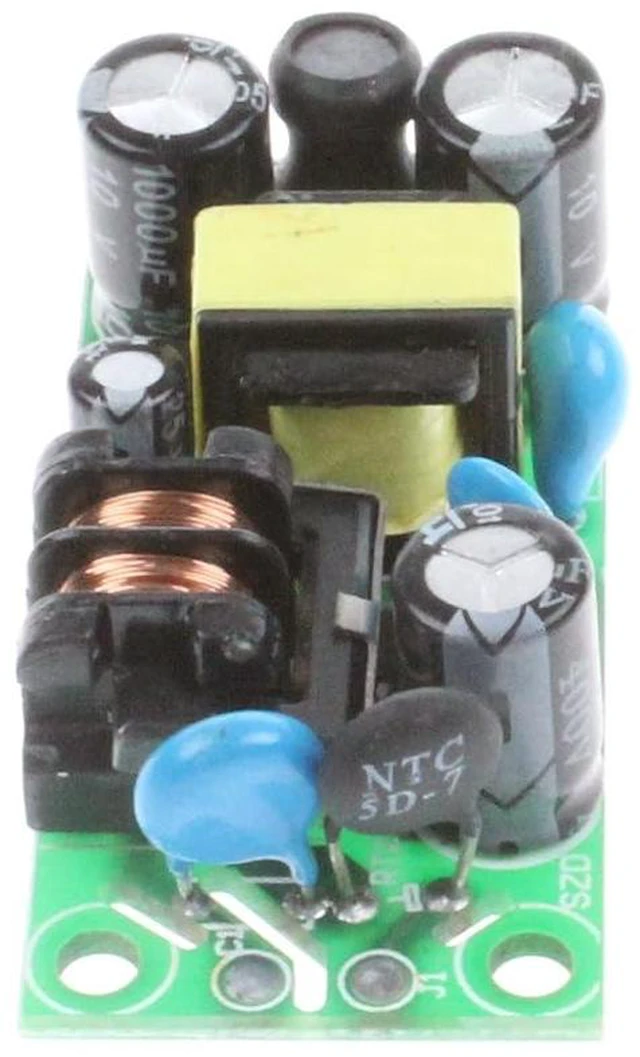

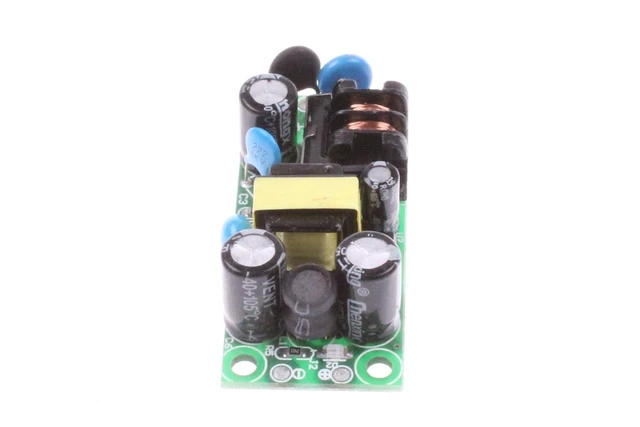

AC to DC Precision DC 5V 1A 5W Power Supply Module AC 120V 85V-265V 50 60Hz to 5V Isolated Industrial Grade Built-in Power Module (5V 1A)
Limited time offer, ends 09/06 By StarVelocity Technology
- The power supply has a temperature protection, over-current protection and short circuit protection, AC85 ~ 265V wide voltage input, DC5V output, compact, 431 precision regulator. with EMI filter circuit.; Input Voltage: AC 120V 85-265V 50/60HZ (full load); Output voltage: DC 5V±0.2V. Output current: 1A ; Power: 5W;; Reliability: Environment 25 ° C under 80% load MTBF more than 100,000 hours. Size: 50*25*17mm. Installation method: A. Pins can be directly soldered to the PCB at the input and output side. B. Mounting holes are fixed; Size: 50*25*17mmLWH.Working temperature: -20°C- +60°C;Relative humidity: 40-90 %RH;
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Description: The power supply has a temperature protection, over-current protection and short circuit protection, AC 120V 85 ~ 265V wide voltage input, DC5V output, compact, 431 precision regulator. with EMI filter circuit.
Parameter: 1.
Use environment Working temperature: -20°C- +60°C;
Relative humidity: 40-90 %RH;
2.
Input characteristics (test conditions: full load conditions)
Input voltage range: AC 85-265V;
Input current: 0.054 (AC110V) A, 0.027 (AC220V) A;
Input surge current: 20A;
3.
Output characteristics Output voltage: +5V± 0.2V;
Minimum current: 0A;
Maximum current: 1000mA;
Peak current: 1100mA;
Ripple: 60mV;
Output power: 5W ( 5.5W Max);
Output efficiency: 85%;
Output rise time: 10ms;
4. Protection function
Restore after trigger protection: restart Output over power protection; Short circuit protection; Temperature protection; Overcurrent protection; 5. Reliability requirements Environment 25 ° C under 80% load MTBF more than 100, 000 hours
Package Included: 1pcs AC-DC Power Module Supply
Parameter: 1.
Use environment Working temperature: -20°C- +60°C;
Relative humidity: 40-90 %RH;
2.
Input characteristics (test conditions: full load conditions)
Input voltage range: AC 85-265V;
Input current: 0.054 (AC110V) A, 0.027 (AC220V) A;
Input surge current: 20A;
3.
Output characteristics Output voltage: +5V± 0.2V;
Minimum current: 0A;
Maximum current: 1000mA;
Peak current: 1100mA;
Ripple: 60mV;
Output power: 5W ( 5.5W Max);
Output efficiency: 85%;
Output rise time: 10ms;
4. Protection function
Restore after trigger protection: restart Output over power protection; Short circuit protection; Temperature protection; Overcurrent protection; 5. Reliability requirements Environment 25 ° C under 80% load MTBF more than 100, 000 hours
Package Included: 1pcs AC-DC Power Module Supply
