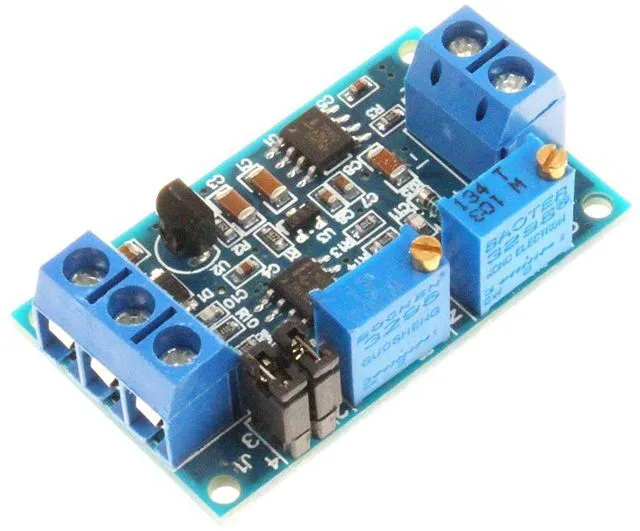

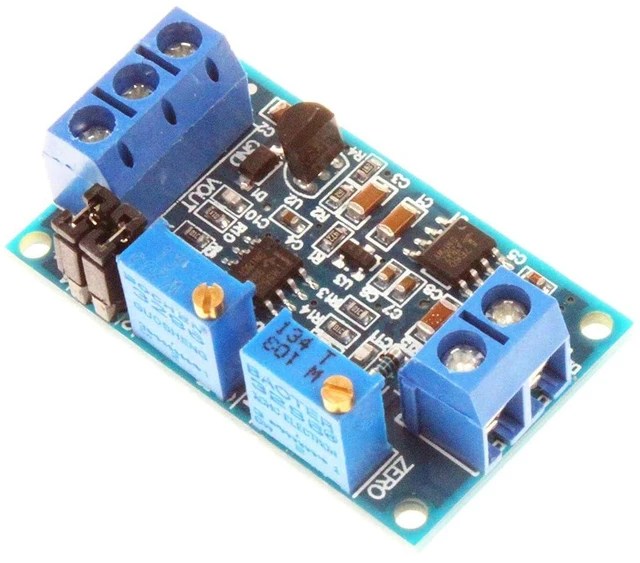

Current to Voltage Converter Signal Conversion Module 4-20mA 0-20mA to 0-3.3V 0-5.0V 0-10.0V Amp to Volt Transmitter Board
Limited time offer, ends 09/06 By StarVelocity Technology
- current to voltage converter module will be powered by 7-36V, current input range is 4-20mA/0-20mA, voltage output range is 0-3.3V/0-5V/0-10V.; Usage: In the process of signal transmission, the voltage signal will be weaker with the increase of transmission distance. Current transmission can avoid the signal weakening.; High accuracy: The current signal sampling resistor adopts high-precision color ring resistance, offers high accuracy, small temperature drift and high power.; Adjustable: Zero and full range can be adjusted as your needs; the module is with high stability, good linearity, industrial grade.; Reserve connection protection: It is designed with reverse connection protection, if wires connect reversely, it will protect the module from burning.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Current to Voltage Converter Signal Conversion Module User
Manual https: //1drv. ms/b/c/4a0865b22350d05c/IQBc0FAjsmUIIIBK
KwEAAAAAAZX4mOn3Z83c7GN5Z5IFby8? e=iona4t
Product Introduction: 1.

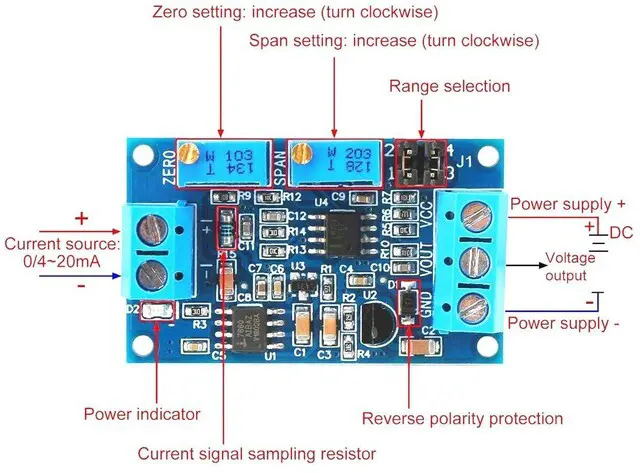

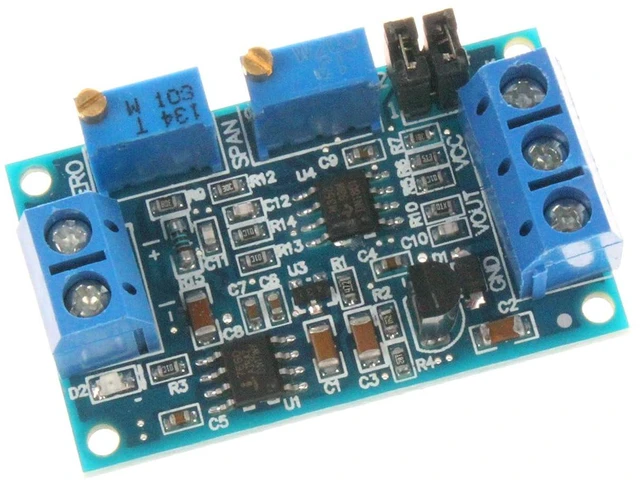

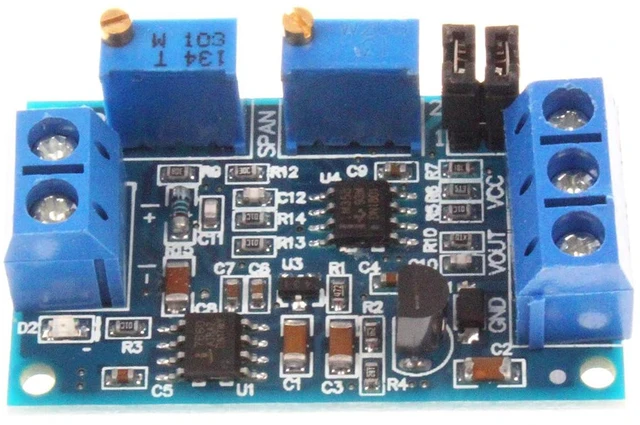

Power Supply Voltage: 7-36V 2. After power on, D2 lamp should be on; if not, please check the connection. The board has reverse connection protection function. 3. When the input current is the minimum (0mA or 4mA), please adjust the ZERO potentiometer to let VOUT output be the minimum ( 0.0V or other voltage) 4. When the input current is the maximum (20mA), please adjust the SPAN potentiometer to let VOUT be the maximum ( 3.3V or 5V, 10V; when the input is 4-20mA, output minimum is 2.5V )
Adjustment Range:
4-20mA: 1.0
- 2.5V: J1 1, 2 pin short circuit connect (plug jumper cap); 3, 4 pin short circuit connect (plug jumper cap).
2.0 - 3.3V: J1 1, 2 pin disconnect (unplug jumper cap); 3, 4 pin disconnect (unplug jumper cap).
3.0 -5V: J1 1, 2 pin short circuit connect (plug jumper cap); 3, 4 pin short circuit connect (plug jumper cap).
4.0 -10V: J1 1, 2 pin short circuit connect (plug jumper cap); 3, 4 pin disconnect (unplug jumper cap) 0-20mA: 1.0
- 3.3V: J1 1, 2 pin short circuit connect (plug jumper cap); 3, 4 pin short circuit connect (plug jumper cap).
2.0 -5V: J1 1, 2 pin short circuit connect (plug jumper cap); 3, 4 pin short circuit connect (plug jumper cap) 3.0 -10V: J1 1, 2 pin short circuit connect (plug jumper cap); 3, 4 pin disconnect (unplug jumper cap)
Package Included: 1pcs Current to Voltage Converter Signal Conversion Module
Manual https: //1drv. ms/b/c/4a0865b22350d05c/IQBc0FAjsmUIIIBK
KwEAAAAAAZX4mOn3Z83c7GN5Z5IFby8? e=iona4t
Product Introduction: 1.
Power Supply Voltage: 7-36V 2. After power on, D2 lamp should be on; if not, please check the connection. The board has reverse connection protection function. 3. When the input current is the minimum (0mA or 4mA), please adjust the ZERO potentiometer to let VOUT output be the minimum ( 0.0V or other voltage) 4. When the input current is the maximum (20mA), please adjust the SPAN potentiometer to let VOUT be the maximum ( 3.3V or 5V, 10V; when the input is 4-20mA, output minimum is 2.5V )
Adjustment Range:
4-20mA: 1.0
- 2.5V: J1 1, 2 pin short circuit connect (plug jumper cap); 3, 4 pin short circuit connect (plug jumper cap).
2.0 - 3.3V: J1 1, 2 pin disconnect (unplug jumper cap); 3, 4 pin disconnect (unplug jumper cap).
3.0 -5V: J1 1, 2 pin short circuit connect (plug jumper cap); 3, 4 pin short circuit connect (plug jumper cap).
4.0 -10V: J1 1, 2 pin short circuit connect (plug jumper cap); 3, 4 pin disconnect (unplug jumper cap) 0-20mA: 1.0
- 3.3V: J1 1, 2 pin short circuit connect (plug jumper cap); 3, 4 pin short circuit connect (plug jumper cap).
2.0 -5V: J1 1, 2 pin short circuit connect (plug jumper cap); 3, 4 pin short circuit connect (plug jumper cap) 3.0 -10V: J1 1, 2 pin short circuit connect (plug jumper cap); 3, 4 pin disconnect (unplug jumper cap)
Package Included: 1pcs Current to Voltage Converter Signal Conversion Module
