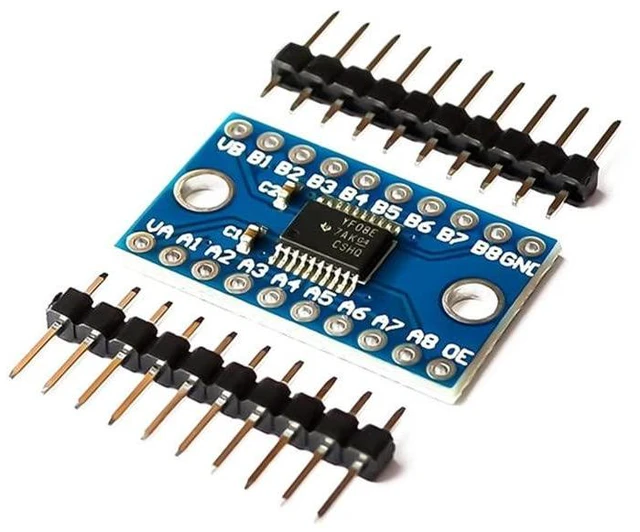

TXS0108E High Speed Full Duplex 8 Channel Level Conversion Module 3. 3V 5V 8-Bit 8 CH Logic Level Bi-Directional Converter Module (Pack of 10)
Limited time offer, ends 09/06 By StarVelocity Technology
- TXS0108E 8 Channel Level Conversion Module work in both open-drain and push-pull modes, with max data throughput of about 2Mbps (open-drain) and 60Mbps (push-pull) for 3v3 to 5v translation, serial communication interface is compatible with UART/IIC/SPI port, which is easy to connect.; 8 digit bi-directional 3.3V-5V/5V-3.3V logic level converter board, it can bidirectionally transfer with 8 channels between high logic voltage and low logic voltage.; High-speed shifter, tie the OE pin directly up to 3.3v to WORK.The level converter provide serial interface+ is very easy to use.; VCCA side voltage range: 1.2V-3.6V; VCCB side voltage range: 1.65v-5.5v; 3.3V going to VA; 5V going to VB; 3.3V going to 0E, OE active high enable IO recommended by a low voltage side of the IO port.; Manufacturer's One-year 3V device, 3.3V SCM and 5V device. It can also apply in the level conversion between MCU and SD card, MCU and iic/spi serial port devices.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
*Feature: *Provide two-channel communication capability *VCCA side support voltage: 1.2V - 3.6V *VCCB side support voltage: 1.65 v- 5.5 v *Can provide 3.3 -5V, 1.8 - 3.3 v and other common level conversion capability *The A port is designed to track VCCA. VCCA accepts any supply voltage from 3.6 V. *The B port is designed to track VCCB. VCCB accepts any supply voltage from 5.5 V. *This allows for low-voltage bidirectional translation between any of the 2.5 -V, 3.3 -V, and 5-V voltage nodes. *When the output-enable (OE) input is low, all outputs are placed in the high-impedance state. *Ensure the high-impedance state during power up or power down, OE should be tied to GND through a pulldown resistor; the minimum value of the resistor is determined by the current-sourcing capability of the driver.

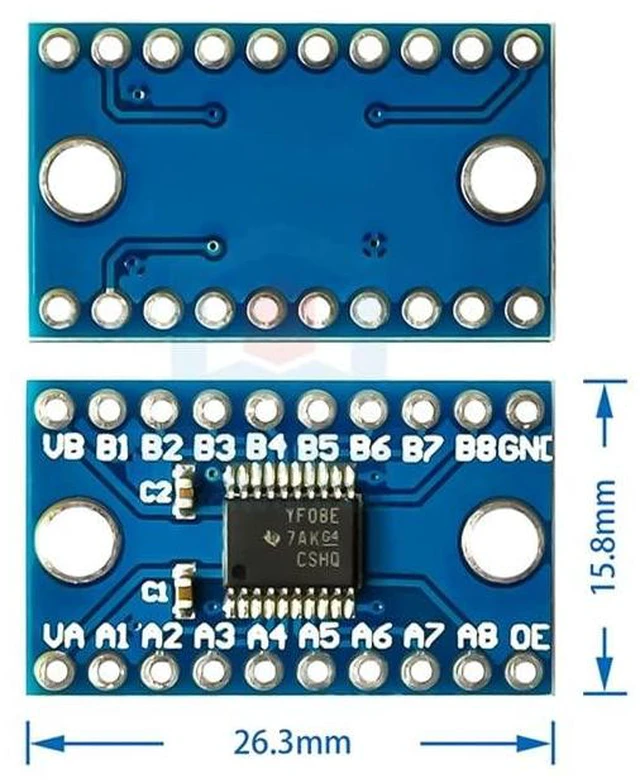

*Module Size: 26.3 x 15.8 x 3mm LWH *Module
Weight: 2.0
grams / 1pcs *Applications: *5V and 3.3V MCU module * 3.3V and 5V MCU module *Compatible and other communications support *MCU and SD card communication level conversion *SCM and iic, spi serial device level converter *OE active high enable IO recommended by a low voltage side of the

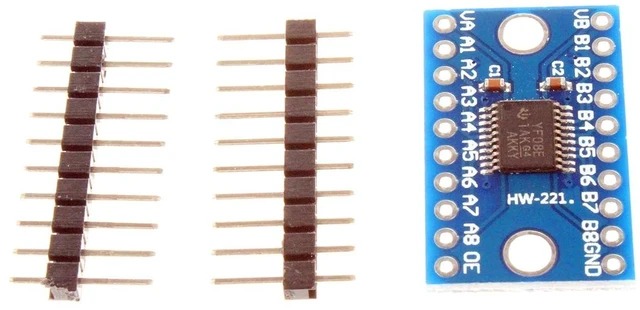

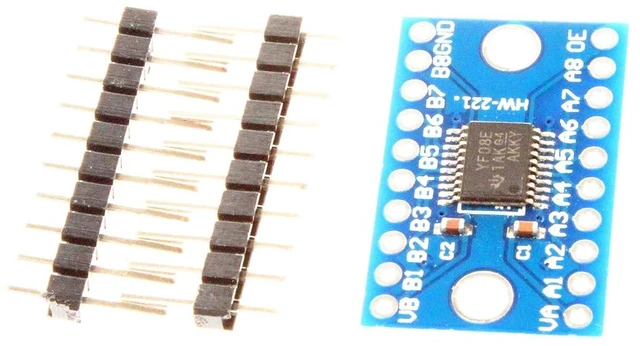

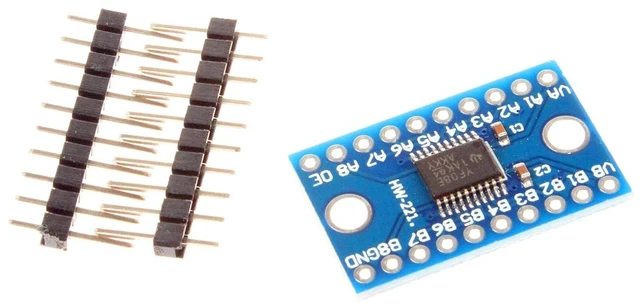

IO port *Package included: *10Pcs TXS0108E High Speed Full Duplex 8 Channel Level Conversion Module
*Module Size: 26.3 x 15.8 x 3mm LWH *Module
Weight: 2.0
grams / 1pcs *Applications: *5V and 3.3V MCU module * 3.3V and 5V MCU module *Compatible and other communications support *MCU and SD card communication level conversion *SCM and iic, spi serial device level converter *OE active high enable IO recommended by a low voltage side of the
IO port *Package included: *10Pcs TXS0108E High Speed Full Duplex 8 Channel Level Conversion Module
