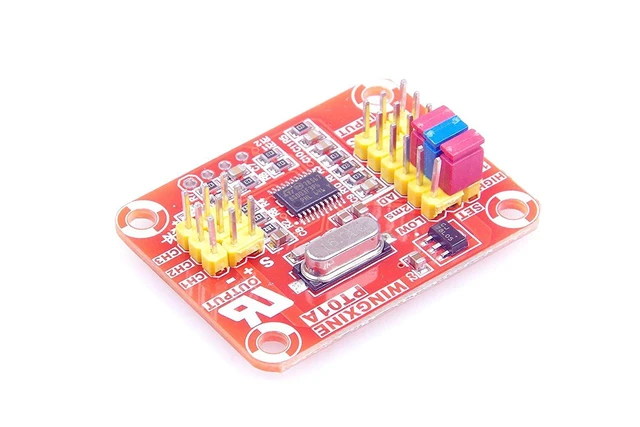

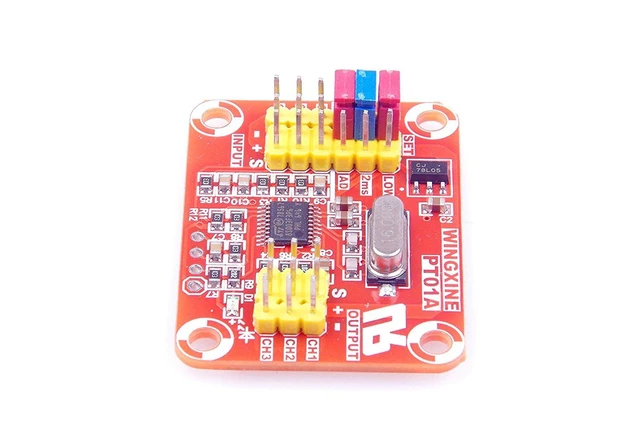

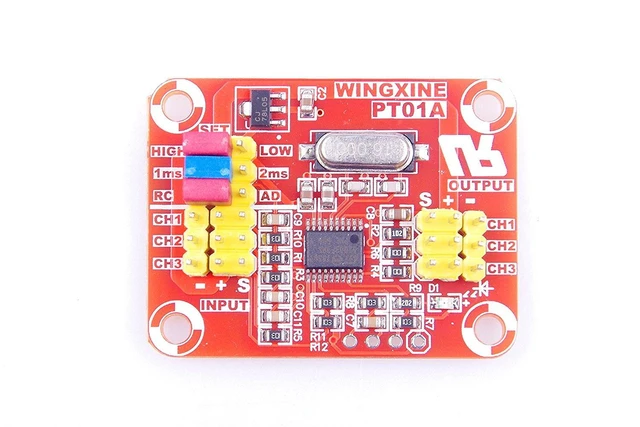

Multifunction Signal Converter Module Servo Signal to Voltage and PWM Signal, Pulse Signal To Analog Voltage PWM Converter For Servo Test Signal Calibration
Limited time offer, ends 09/06 By StarVelocity Technology
- Test servos :Analog voltage signal to PPM signals , PPM signal to Analog voltage signals , PPM signal to PWM signal.; Operating Voltage : ± DC 5V Low jumper position ; DC7V to DC15V (High jumper position);; Limit input Voltage:4.5V(MIN) , 5.5V (MAX) (Low jumper position); 6.0V(MIN) , 15V(MAX)(High jumper position);; Limit output Current : 6.5.a / 7.5a; Current: 10mA; Dimensions:42x31x12mm / 1.65x1.22x0.47 inch(L*W*H)
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

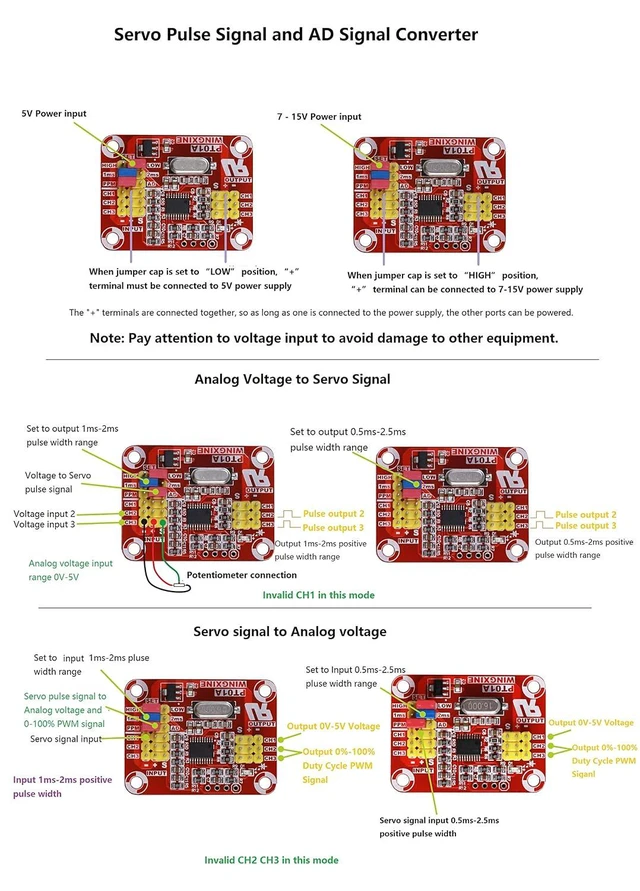

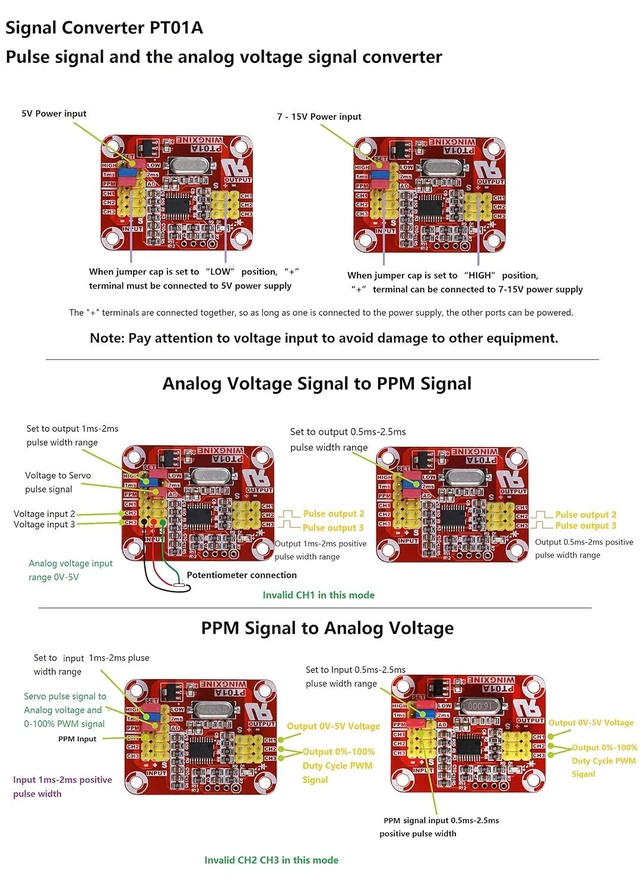

Multifunction Signal Converter Module Wiring Diagram https: //1drv. ms/u/c/4a0865b22350d05c/IQBc0FAjsmUIIIBK5gAAAAAA
AdBRYF
FrT7Mr-fBkY19uZic? e=ewW9iM
Test servos: Analog voltage signal to PPM signals PPM signal to Analog voltage signals PPM signal to PWM signal Receiver signal to analog voltage signal: CH1
Receiver signal input range: 1000s - 2000s / 500s - 2500s. (Set by jumper cap).
Analog voltage output range: 0V - 5V.
Conversion characteristics: synchronous conversion with input signal frequency, fast real-time response. Analog voltage signal to receiver signal: CH2, CH3
Receiver signal input range: 1000s - 2000s / 500s - 2500s. (Set by jumper cap).
Analog voltage input range: 0V - 5V.
Conversion characteristics: two channels full speed synchronous conversion, ultra-low delay response speed.
Note: Two functions are not used at the same time, use one function by jumper cap setting, the other function is disabled.
Features Operating Voltage: DC 5V ±Low jumper position; DC7V to DC15V (High jumper position); Limit input
Voltage: 4.5V (MIN), 5.5V (MAX) (Low jumper position); 6.0V (MIN), 15V (MAX) (High jumper position); Limit output
Current: 6.5. a / 7.5 a;
Current: 10mA Weight7g;
Dimensions: 42x31x12mm / 1.65 x 1.22 x 0.47 inch (L*W*H)
Application: Calibration servo signal Potentiometer or joystick control servo RC control motor speed controller
Package Included: 1Pcs Multifunction Signal Converter Module
AdBRYF
FrT7Mr-fBkY19uZic? e=ewW9iM
Test servos: Analog voltage signal to PPM signals PPM signal to Analog voltage signals PPM signal to PWM signal Receiver signal to analog voltage signal: CH1
Receiver signal input range: 1000s - 2000s / 500s - 2500s. (Set by jumper cap).
Analog voltage output range: 0V - 5V.
Conversion characteristics: synchronous conversion with input signal frequency, fast real-time response. Analog voltage signal to receiver signal: CH2, CH3
Receiver signal input range: 1000s - 2000s / 500s - 2500s. (Set by jumper cap).
Analog voltage input range: 0V - 5V.
Conversion characteristics: two channels full speed synchronous conversion, ultra-low delay response speed.
Note: Two functions are not used at the same time, use one function by jumper cap setting, the other function is disabled.
Features Operating Voltage: DC 5V ±Low jumper position; DC7V to DC15V (High jumper position); Limit input
Voltage: 4.5V (MIN), 5.5V (MAX) (Low jumper position); 6.0V (MIN), 15V (MAX) (High jumper position); Limit output
Current: 6.5. a / 7.5 a;
Current: 10mA Weight7g;
Dimensions: 42x31x12mm / 1.65 x 1.22 x 0.47 inch (L*W*H)
Application: Calibration servo signal Potentiometer or joystick control servo RC control motor speed controller
Package Included: 1Pcs Multifunction Signal Converter Module
