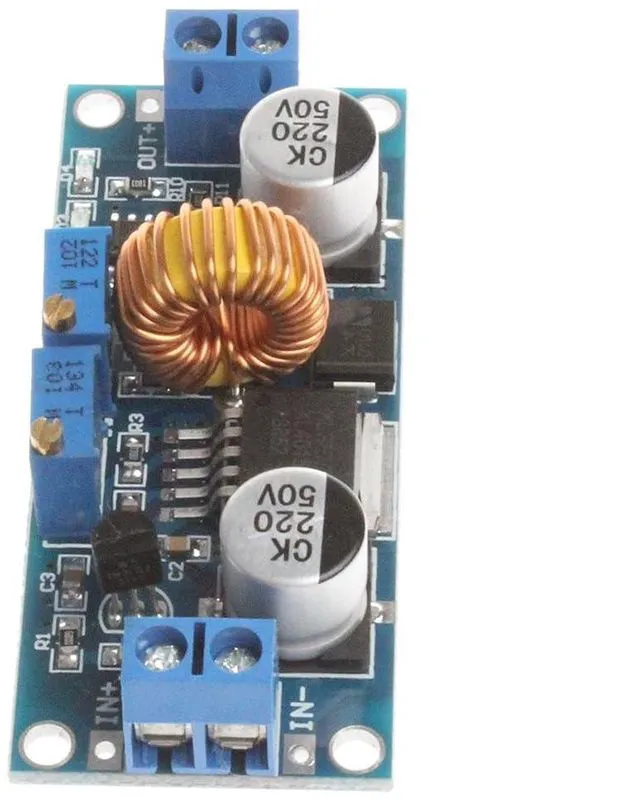

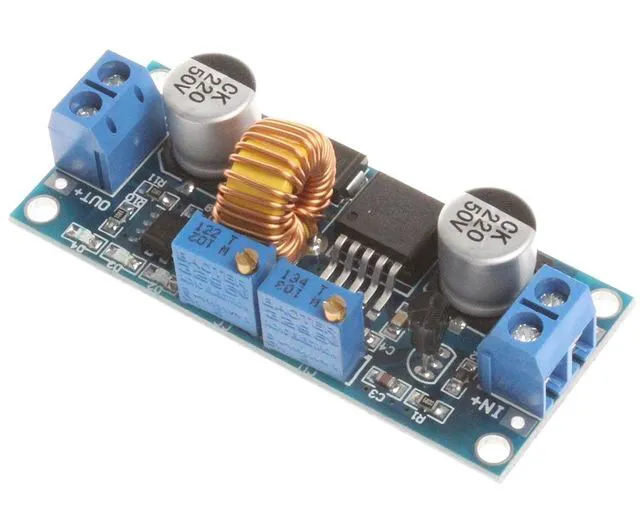

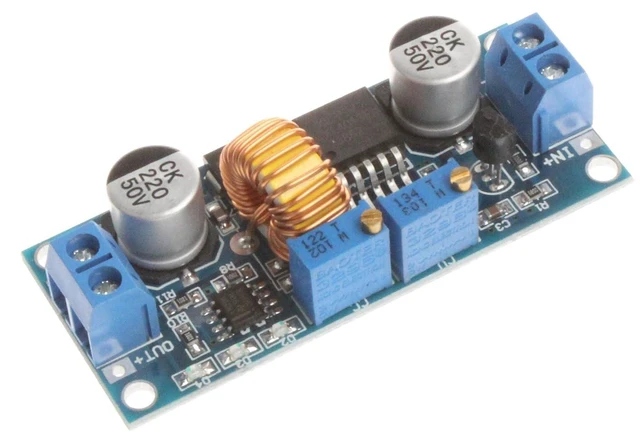

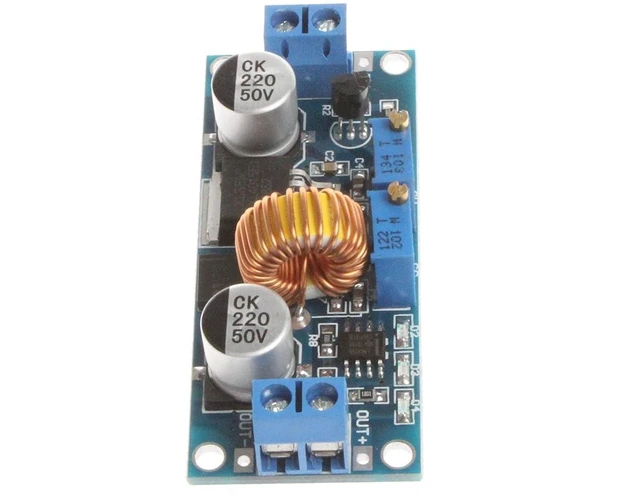

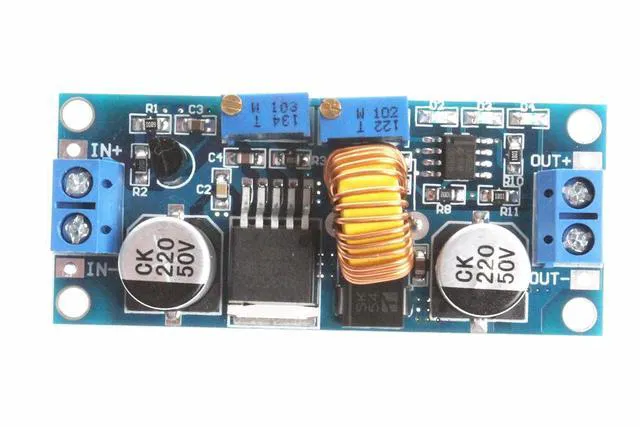

DC to DC 5A 75W Buck Power Supply Module CC CV 5V - 36V Buck to 1.2V - 32V Output ADJ 75W Max Constant Voltage Constant Current Step-Down Power Supply Module LED Driver Board

DC-DC 5A 75W Buck Power Supply Module User
Manual https: //1drv. ms/b/c/4a0865b22350d05c/IQBc0FAjsmUIIIB
KxAAAAAAA
AadtEZq5BITHMS
VnSl3fruE? e=dbpCXR
Module features:
1. High power, high efficiency, 5A, low ripple;
2.
Three-in-one: used as a common step-down module with overcurrent protection; used as a charger for various voltage lithium batteries, batteries, nickel-cadmium nickel-hydrogen batteries (batteries), for solar panels, wind power generation Machine and other occasions; used as a high-power LED constant current drive module;
3. There are two modes of constant voltage and constant current, and there are indicators to indicate which mode the module is currently in;
4. When used as a lithium battery charger, you can set the float voltage and charge current, and the indicator light indicates whether it is charging or is full;
5. With current limiting protection, the module will not burn out even if the output is short circuited.
Module parameter Input voltage: DC 5V - 36V.
Output voltage: DC 1.25V - 32V continuously adjustable.
Output current: adjustable, 5A (recommended for use within 4.5A ).
Output power: 75W (recommended to use within 50W, please reduce power when using large differential pressure).
Working temperature: -40~+85 °C.
Working frequency: 180KHz.
Conversion efficiency: 96%.
Short circuit protection: Yes (limit current 8A).
Over temperature protection: Yes (automatically turn off the output after over temperature).
Input reverse connection protection: None, (If necessary, please input a large current diode in the input string).
Installation method: 4 pieces of 3mm twisted wire.
Wiring method: terminal block or soldering terminal, V-IN is input, V-OUT is output.
Module size: length 68.2 mm width 38.8 mm height 15mm.
Weight: 35g.
Note: When using this module for more than 3A, 35W, please strengthen the heat!!! Package Included 1Pcs DC-DC 5A 75W Buck Power Supply Module
