ADS1232 24-Bit A D Analog to Digital Converter Module Ultra Low Noise
Limited time offer, ends 09/06 By StarVelocity Technology
- The ADS1232 is precision 24-bit analog-to-digital converters (ADCs). With an onboard, low-noise programmable gain amplifier (PGA), precision delta-sigma ADC and internal oscillator, the ADS1232 provide a complete front-end solution for bridge sensor applications including weigh scales, strain gauges and pressure sensors; The ADS1232 also includes an onboard temperature sensor to monitor ambient temperature. The onboard, low-noise PGA has a selectable gain of 1, 2, 64, or 128 supporting a full-scale differential input of ±2.5V, ±1.25V, ±39mV, or ±19.5mV. The delta-sigma ADC has 23.5-bit effective resolution and is comprised of a 3rd-order modulator and 4th-order digital filter. Two data rates are supported: 10SPS (with both 50Hz and 60Hz rejection) and 80SPS.; The ADS1232 can be clocked externally using an oscillator or a crystal. There is also an internal oscillator available that requires no external components. Offset calibration is performed on-demand and the ADS1232 can be put in a low-power standby mode or shut off completely in power-down mode.; All of the features of the ADS1232 are operated through simple pin-driven control. There are no digital registers to program in order to simplify software development. Data are output over an easily-isolated serial interface that connects directly to the MSP430 and other microcontrollers.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
ADS1232 data-sheet https: //1drv. ms/b/c/4a0865b22350d05c/IQBc0FAjsmUIIIBKpwAAAAAAAbJ2y0goU4udUadPYdXv7tA? e=Xoilfy Features Complete Front-End for Bridge Sensors Up to 23.5 Effective Bits Onboard, Low-Noise
PGA RMS Noise: 17nV at 10SPS (PGA = 128) 44nV at 80SPS (PGA = 128) 19.2 -Bit Noise-Free Resolution at Gain = 64 Over 100dB Simultaneous 50Hz and 60Hz
Rejection Flexible Clocking: Low-Drift Onboard Oscillator (±3%) Optional External Crystal Selectable Gains of 1, 2, 64, and 128 Easy Ratiometric MeasurementsExternal Voltage Reference up to 5V Selectable 10SPS or 80SPS Data Rates Two-Channel Differential Input with Built-In Temperature Sensor (ADS1232) Four-Channel Differential Input (ADS1234) Simple Serial Digital
Interface Supply Range: 2.7V to 5.3V -40°C to +105°C Temperature Range APPLICATIONS Weigh Scales Strain Gauges Pressure Sensors Industrial Process

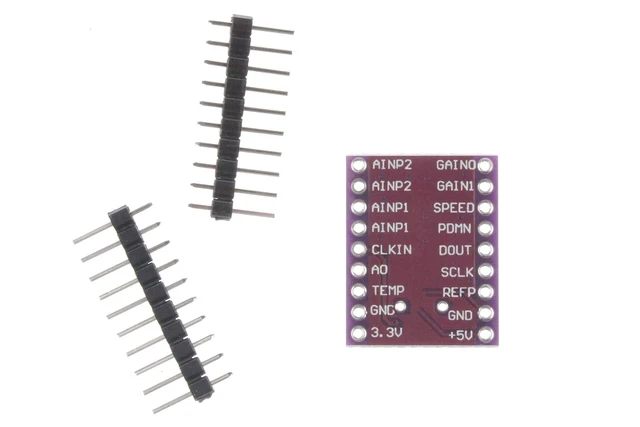

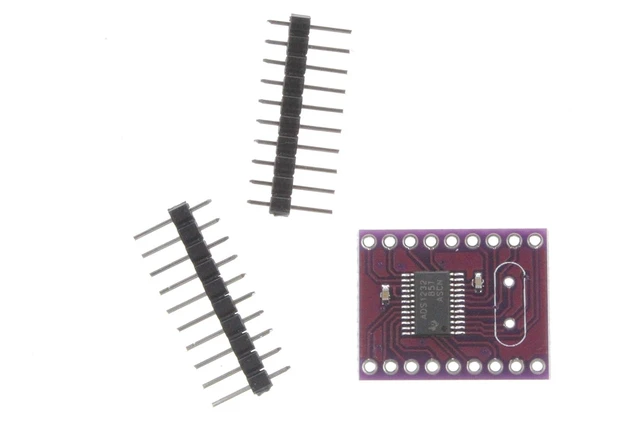

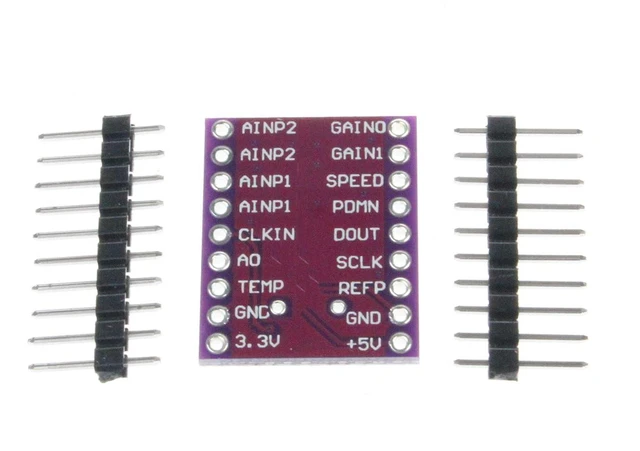

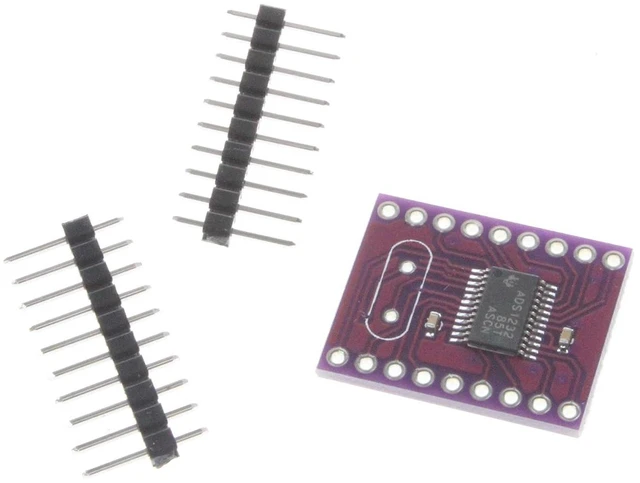

Control Package Included: 1Pcs ADS1232 24-Bit A/D Analog to digital Converter Module
PGA RMS Noise: 17nV at 10SPS (PGA = 128) 44nV at 80SPS (PGA = 128) 19.2 -Bit Noise-Free Resolution at Gain = 64 Over 100dB Simultaneous 50Hz and 60Hz
Rejection Flexible Clocking: Low-Drift Onboard Oscillator (±3%) Optional External Crystal Selectable Gains of 1, 2, 64, and 128 Easy Ratiometric MeasurementsExternal Voltage Reference up to 5V Selectable 10SPS or 80SPS Data Rates Two-Channel Differential Input with Built-In Temperature Sensor (ADS1232) Four-Channel Differential Input (ADS1234) Simple Serial Digital
Interface Supply Range: 2.7V to 5.3V -40°C to +105°C Temperature Range APPLICATIONS Weigh Scales Strain Gauges Pressure Sensors Industrial Process
Control Package Included: 1Pcs ADS1232 24-Bit A/D Analog to digital Converter Module
