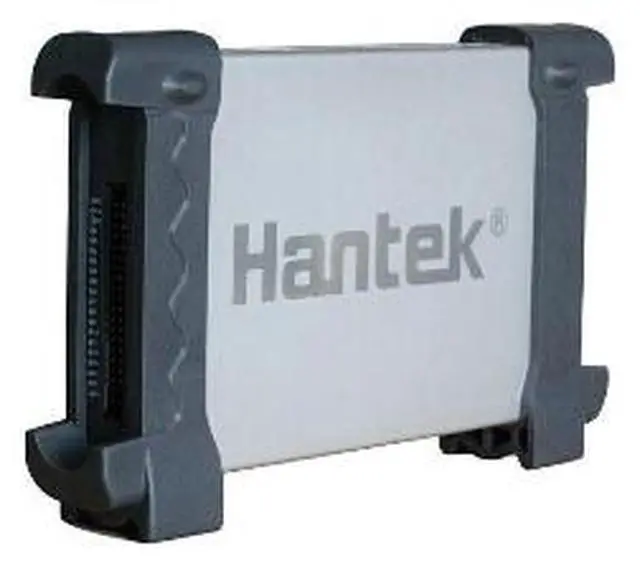

Hantek 4032L 32 Channel, 400MSa/s PC USB Logic Analyzer,2G DDR2 Memory Depth Hantek4032L

Introduction:
Hantek4032L combines the function of logic analyzer,bus analyzer, and logic probe etc. in one.It's suitable for various digital circuits development, testing, analysis and debug, is an able aider for electronics development & electronic measuring engineers, and teaching and research work at college.It's 2Gbit memory depth (DDR2), 400MSa/s sampling rate, and 150MHz bandwidth can meet your various needs.

Overview:
?Hantek4032L combines the function of logic analyzer, bus analyzer, and logic probe etc. in one.
?It's suitable for various digital circuits development, testing, analysis and debug, is an able aider for electronics
development & electronic measuring engineers, and teaching and research work at college.
?It's 2Gbit memory depth (DDR2), 400MSa/s sampling rate, and 150MHz bandwidth can meet your various needs.
?The innovative trigger mode and new analysis measurement tool make your measurement simple and efficient.
?It can set edge, level, bus, data width etc. Trigger mode, easy to use.
?Its innovative data analysis function makes your analyze UART, SPI, and I2C etc. data more easy and relax.
?The strong protocol secondary analytic capability is able to export files in CSV, TXT, DOC format, which facilitate
?secondary analysis with other tools.
?Plug and play high speed USB 2.0 interface.
?Excellent industrial design, similar interface to digital storage oscilloscope, easy to use.

Parameters:
Channel :32
Input Impedance :200K(C=10p)
Input Voltage Range :-6V~60V
Voltage Threshold Range :-6V~6V
Max. Sample Rate :400MHz
Max. Input Signal Bandwidth :150MHz
Min Time Resolution :2ns
Sample Depth :64M Sample
Memory Depth :2G bits
Compatible Input :TTL, LVTTL, CMOS, LVCOMS, ECL, PECL, EIA
Electrostatic Protected Area :15KV
Interface :USB Port
Voltage Range :4.5V~5.5V
Power :Max. 3.5W
Temperature Range :Operation: -10°C~60°C; Storage: -40°C~60°C
Operating System :WinXP/2000/Win7
Size&Weight :207(D) x 37(H) x 123(W) mm, about 390g
