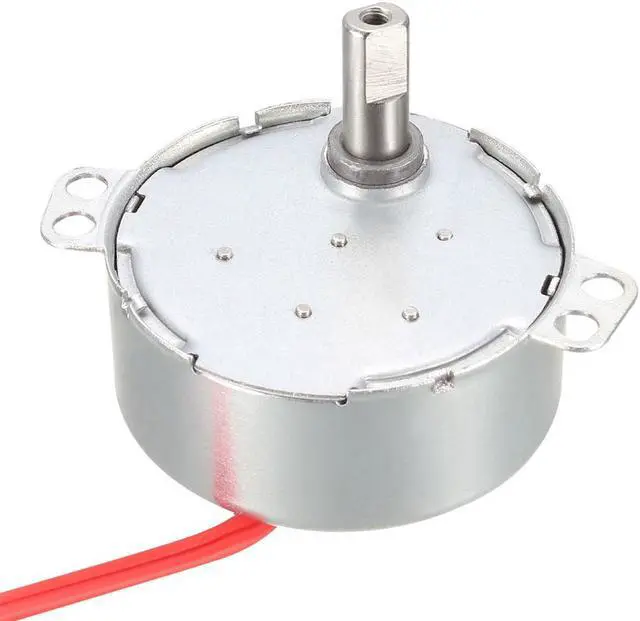

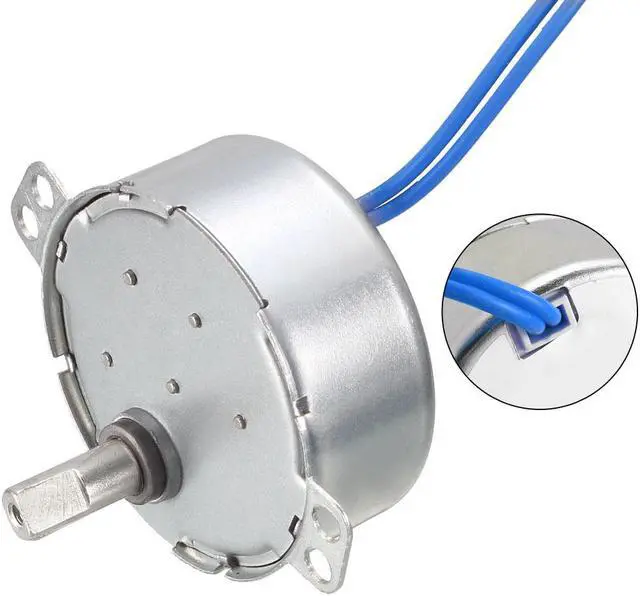

Synchronous Motor AC 12V 4-5RMP 50-60Hz 4W Double Flat Shaft CW/CCW
- [Specification] - Voltage: AC 12V; Speed: 4-5RPM; Frequency: 50-60Hz; Power: 4W; Direction: CW/CCW; Torque: 6kgf.cm; Wire Length: 40cm/ 15.7 inch.
- [Typical Applications ] - heater machine / electric fan / Christmas tree / Air conditioner / Massagers / Dynamic Visualizer / Arts & Crafts lighting / popcorn machine.
- [Show Your Style] - An Good Motor For Hand-Made, DIY Project, Model And Anything Else You Want.
- [Features] -AC motor is small power consumption, torque, low noise, small size, light weight, easy to use.
- [Advantage] - The permanent magnet synchronous motor and the slowdown in one body can control the pros and cons of the synchronous motor.At rated frequency, the motor speed is not affected by voltage and remains stable. If the motor is overloaded or stalled, the motor coil will not burn.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description
It is mainly used for gluing machine, heaters, monitor, electrical curtain, stage lights, advertisement electrical movement, electrical apparatus, toys and science and education instruments.
Typical Applications: Mahjong desk, Automatic Equipment, Electric-drive toy.
Specification
Rated Voltage: AC 12V
Power: 4W
Manner of Working: CW/CCW
Rated Frequency: 50-60Hz
Rated Speed: 4-5RPM
Torque: 6kgf.cm
Body Diameter: 50mm/ 1.96 inch
Body Height: 20mm/ 0.78 inch
Total Length: 65mm/ 2.55 inch
Mounting Hole Diameter: 4.5mm/ 0.17 inch
Shaft Diameter: 7mm/ 0.28 inch
Shaft Length: 15mm/ 0.59 inch
Shaft Hole Thread: M3
Wire Length: 40cm/ 15.7 inch
Package: 1 x AC Synchronous Motor
