$11.49
Meet Your Seller

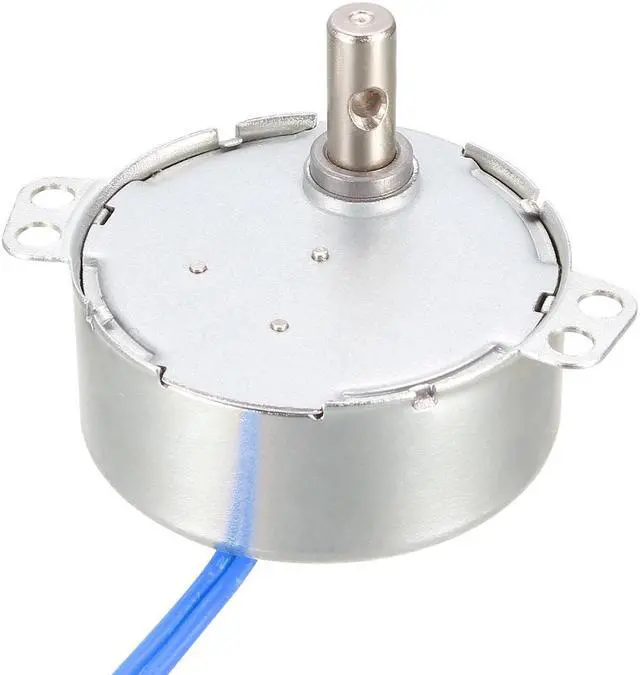

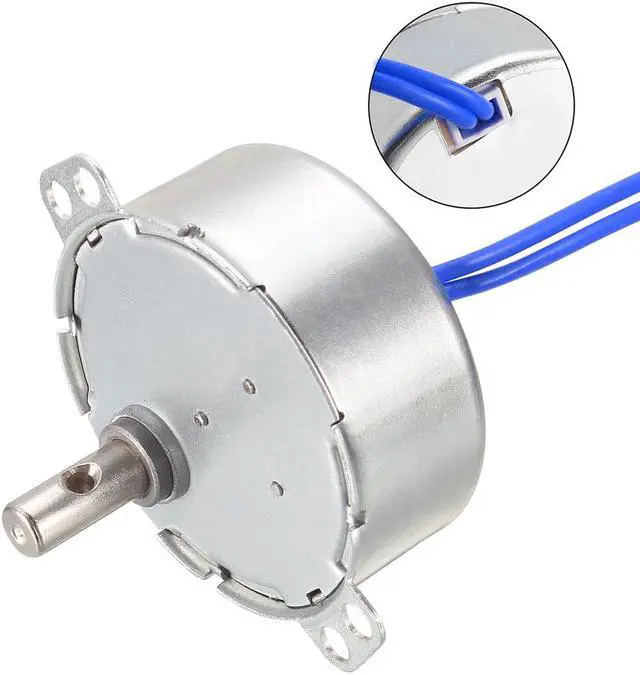

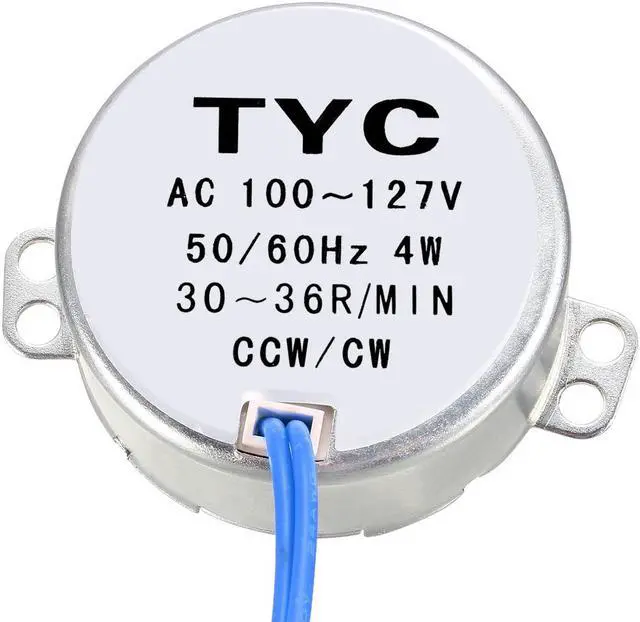

Synchronous Motor AC 100-127V 30-36RPM 50-60Hz CCW/CW 4W Turntable Gear Box for Microwave Oven
- [Specification] - Voltage: AC 100-127V; Speed: 30-36RPM; Frequency: 50-60Hz; Power: 4W; Direction: CW/CCW; Torque: 0.8 kgf.cm; Wire Length: 40cm/ 15.7 inch.
- [Typical Applications ] - heater machine / electric fan / Christmas tree / Air conditioner / Massagers / Dynamic Visualizer / Arts & Crafts lighting / popcorn machine.
- [Show Your Style] - An Good Motor For Hand-Made, DIY Project, Model And Anything Else You Want.
- [Features] -AC motor is small power consumption, torque, low noise, small size, light weight, easy to use.
- [Advantage] - The permanent magnet synchronous motor and the slowdown in one body can control the pros and cons of the synchronous motor.At rated frequency, the motor speed is not affected by voltage and remains stable. If the motor is overloaded or stalled, the motor coil will not burn.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description
It is mainly used for gluing machine, heaters, monitor, electrical curtain, stage lights, advertisement electrical movement, electrical apparatus, toys and science and education instruments.
Typical Applications: Mahjong desk, Automatic Equipment, Electric-drive toy.
KEY_TAB
KEY_TAB
Specification
Rated Voltage: AC 100-127V
Power: 4W
Manner of Working: CW/CCW
Rated Frequency: 50-60Hz
Rated Speed: 30-36RPM
Torque: 0.8 kgf.cm

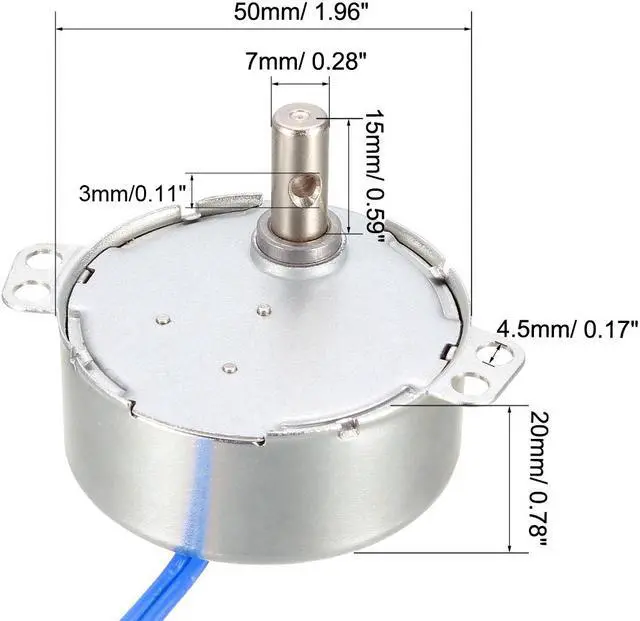

Body Diameter: 50mm/ 1.96 inch
Body Height: 20mm/ 0.78 inch
Total Length: 65mm/ 2.55 inch
Mounting Hole Diameter: 4.5mm/ 0.17 inch
Shaft Diameter: 7mm/ 0.28 inch
Shaft Length: 15mm/ 0.59 inch
Shaft Hole diameter: 3mm/0.11 inch
Wire Length: 40cm/ 15.7 inch
Package: 1 x AC Synchronous Motor
