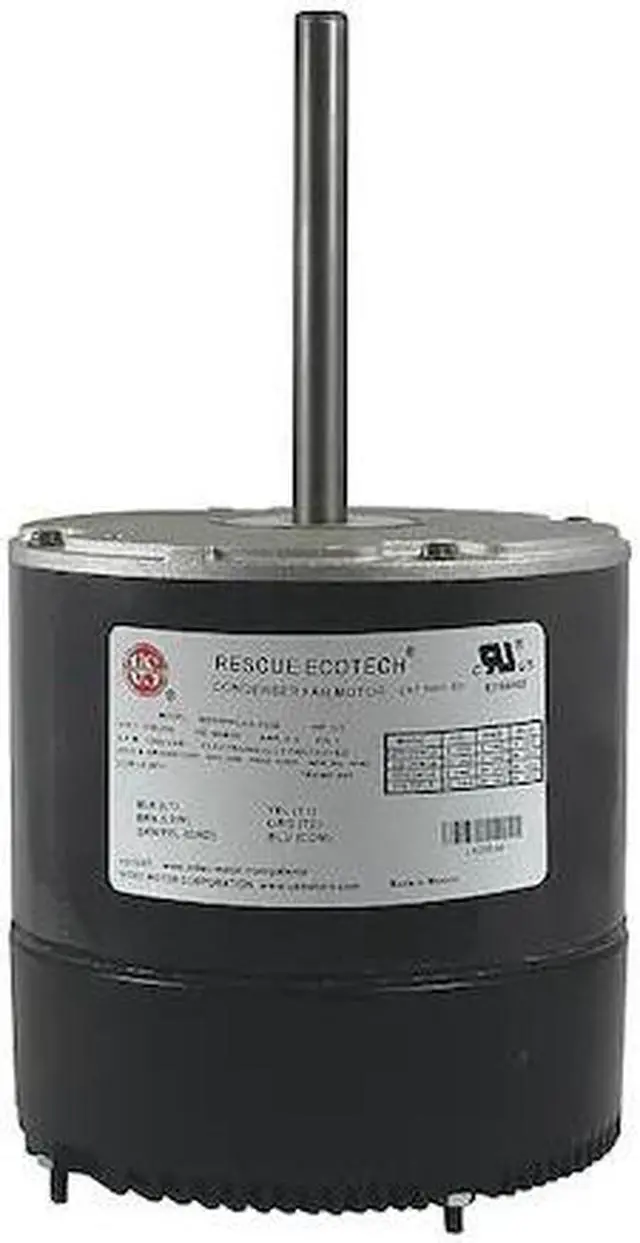

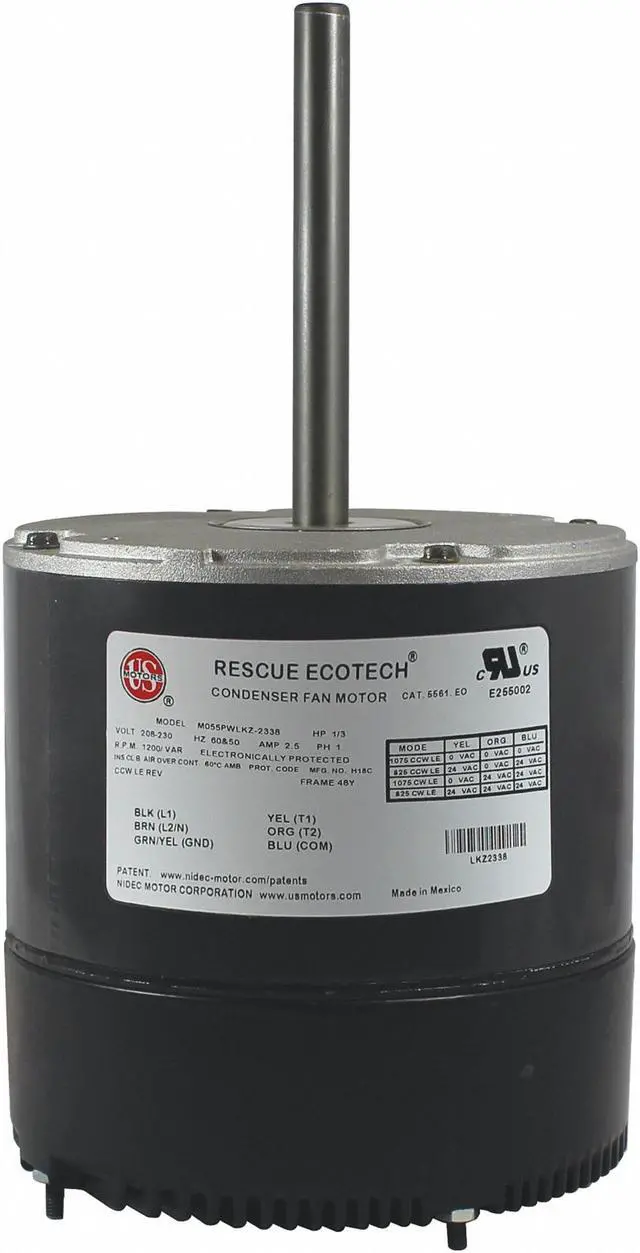

U.S. Motors Condenser Fan Motor,1/3 HP,1 Phase,2.5A 5561EO
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Condenser Fan Motor, Motor Design ECM, Phase Single, 1/3 HP, No. of Speeds 2, Voltage 208-230V AC, Motor Shaft Rotation CW/CCW, 48Y Frame, Motor Enclosure Design Totally Enclosed Air-Over, Stud Motor Mounting Type, Motor Mounting Position Vertical Shaft Down, Shaft Dia. 1/2 in, Shaft Length 4 1/2 in, Motor Thermal Protection Auto, Max. Ambient Temp. 60 Degrees C, Nameplate RPM 1, 075/825, HVAC/R, Condenser Fan, 60/50 Hz, Full Load Amps 2.5 A, Ins. Class B, Motor Service Factor 1
