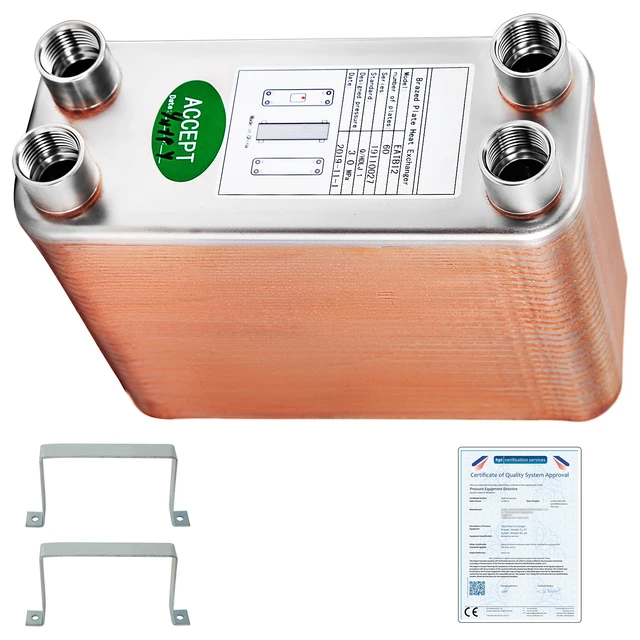

VEVOR Heat Exchanger 3\"x7.5\" 60 Plates Brazed Plate Heat Exchanger 316L 1/2\" BSP FPT Heat Exchanger EATB12 Beer Wort Chiller for Hydronic Heating
- HIGH THERMAL EFFICIENCY- Turbulent-flow design moves the two media in opposite directions and creates strong turbulence for superior heat transfer rates and efficiency.
- ENERGY OPTIMIZED - This heat exchanger stainless can heat water to the preset temperature, which is super energy-saving with no electricity consumption and no oxygen consumption.
- ROBUST CONSTRUCTION- This 60 plate heat exchanger features 316L stainless steel sheets, which are brazed together at the edges and the matrix of contact points for a reliable and rugged part to form a durable, integral piece that can withstand high pressure and temperature.
- COMPACT DESIGN- Corrugated plate design of this plate chiller wort allows for substantially smaller build and footprint at an equivalent or better performance compared to other heat transfer devices resulting in significant space savings.
- HIGHLY VERSATILE- This heat exchanger beer offers the highest level of thermal efficiency and durability in a compact & lightweight unit, ideal for industrial oil cooling, refrigerant evaporators, and condensers, residential and light commercial HVAC hydronic systems.
- Friendly Note for Installation
- Vertical installation is recommended to minimize sediment build-up and reduce maintenance.
- For any type of project, installing a Y-strainer at the heat exchanger inlet is recommended to reduce fouling and extend the unit's lifespan.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Specifications
Model: B12-60
Material: 316L + 99.9 % Copper
Ports: 1/2" BSP FPT
Plate Quantity: 60
Design Pressure (Max): 3.0 Mpa
Test Pressure: (Min): 4.5 Mpa
Design Temp. (): Max +225
Design Temp. (): Min -196
Dimension: 7.6" x 2.8" x 6.3" / 19.4 cm x 7.2 cm x 16.1 cm
Package Content
1 x Heat Exchanger
1 x A Pair of Hoops
