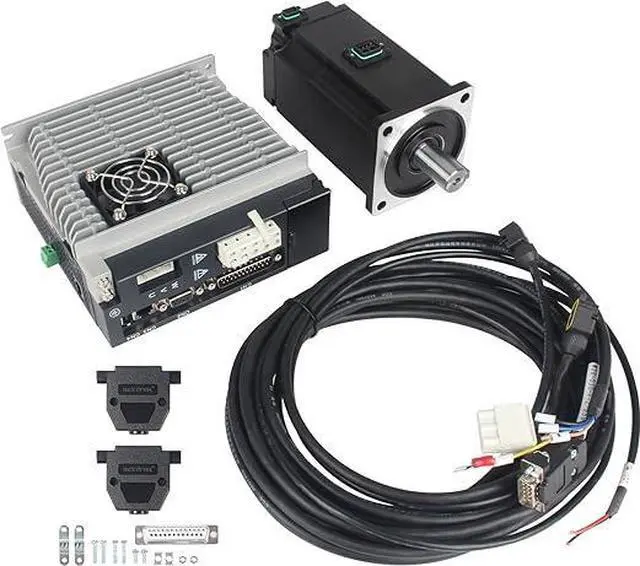

Main image of 750W AC Servo Motor Kit with Brake, 23-Bit Optical Encoder, 80mm Flange 3000rpm-6000rpm 2.39-7.17N.m, 220V Servo Driver Controller Kit for CNC Router, Robotics, Industrial Automation

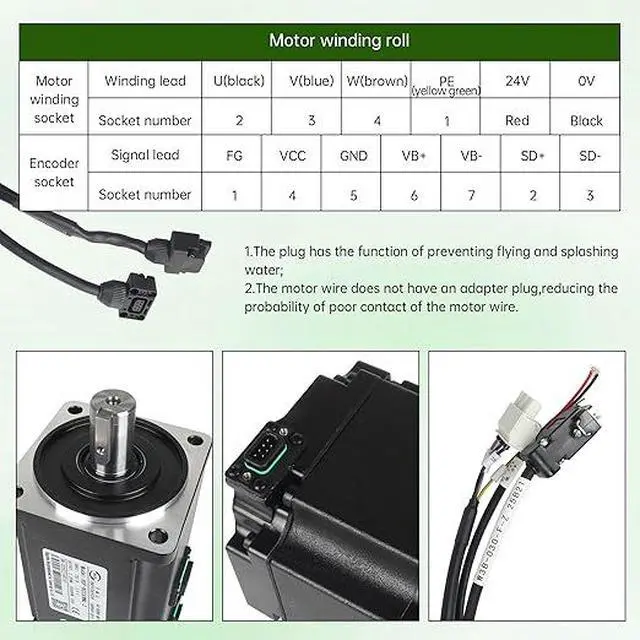

Alt view image 2 of 6 - 750W AC Servo Motor Kit with Brake, 23-Bit Optical Encoder, 80mm Flange 3000rpm-6000rpm 2.39-7.17N.m, 220V Servo Driver Controller Kit for CNC Router, Robotics, Industrial Automation

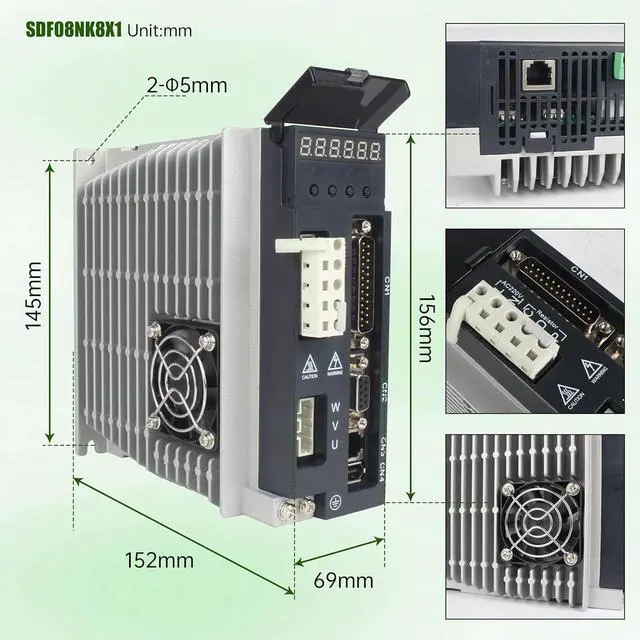

Alt view image 3 of 6 - 750W AC Servo Motor Kit with Brake, 23-Bit Optical Encoder, 80mm Flange 3000rpm-6000rpm 2.39-7.17N.m, 220V Servo Driver Controller Kit for CNC Router, Robotics, Industrial Automation

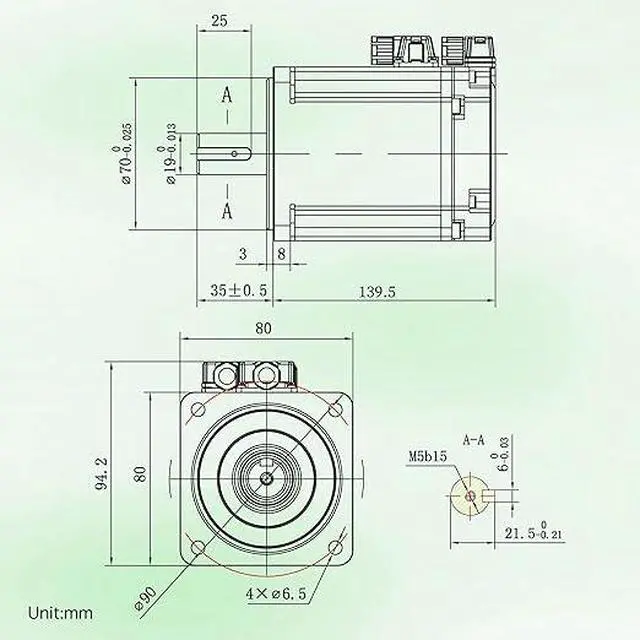

Alt view image 4 of 6 - 750W AC Servo Motor Kit with Brake, 23-Bit Optical Encoder, 80mm Flange 3000rpm-6000rpm 2.39-7.17N.m, 220V Servo Driver Controller Kit for CNC Router, Robotics, Industrial Automation

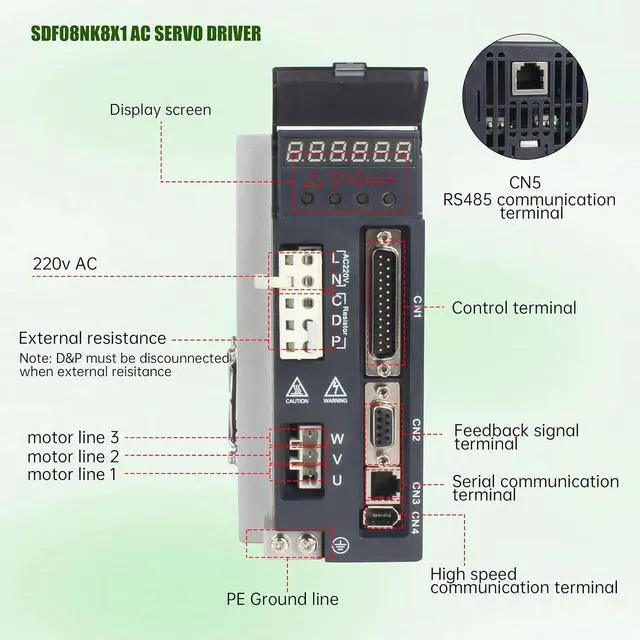

Alt view image 5 of 6 - 750W AC Servo Motor Kit with Brake, 23-Bit Optical Encoder, 80mm Flange 3000rpm-6000rpm 2.39-7.17N.m, 220V Servo Driver Controller Kit for CNC Router, Robotics, Industrial Automation

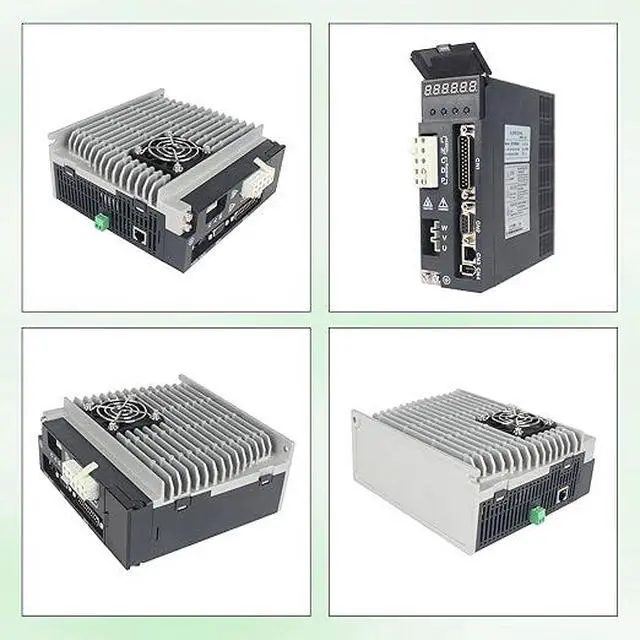

Alt view image 6 of 6 - 750W AC Servo Motor Kit with Brake, 23-Bit Optical Encoder, 80mm Flange 3000rpm-6000rpm 2.39-7.17N.m, 220V Servo Driver Controller Kit for CNC Router, Robotics, Industrial Automation

Shop All NASA Products | Visit KAIN Tech Store

750W AC Servo Motor Kit with Brake, 23-Bit Optical Encoder, 80mm Flange 3000rpm-6000rpm 2.39-7.17N.m, 220V Servo Driver Controller Kit for CNC Router, Robotics, Industrial Automation

Material Other
Display Type LCD or LED
Manufacturer Changzhou Rattm Motor Co.,Ltd

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Motor Parameters: Model 80F-B0230WML-Z; Power: 750W; Poles: 5 pairs; Voltage: 220V; Rated speed: 3000r/min; Peak speed:6000r/min ;Rated torque: 2.39N.m; Instantaneous max torque:7.17N.m; Rated current: 3.8A; Insulation class: F; Waterproof grade: IP65; Net weight: 2.97kg 6.54 lb
Driver Parameters: Model SDF08NK8X1; Max current: 10.5A; Voltage: AC170-253V; Operates with a single-phase or three-phase AC 220V power supply, and the L and N terminals are for the 220V power supply; Cooling method: Heat dissipation air cooling; Control mode: SVPWM; Operating temperature: 0~55; Storage temperature:-20~80; Protection level: IP54; Comes with a six of seven-segment display LED and four function keys for display and operation
23-bit Encoder: Matching with 23 bit multi turn absolute value optical encoder, 5 pairs of poles, ensuring high positioning accuracy, allowing for fine position control and meeting the demands of high-precision motion control scenarios; A variety of intelligent monitoring functions and operation panels are convenient for users to debug and diagnose
Multi-functional Control Modes: Has built-in braking function and multiple protection functions such as under-voltage, over-voltage, overload, over-current, encoder exception, and position error; Supports various control modes including position control, speed control, torque control, jog operation, and RS485 communication
More Functions: Supports saving, reading, backing up, and restoring parameters; 137 adjustable parameters covering control modes, gains, I/O definitions, communication, etc; Customizable input/output ports: 7 input points definable as 23 functions and 4 output points; Internal PLC function: Eliminates the need for external PLC in simple control scenarios; Compatible with debugging software for parameter configuration and monitoring
