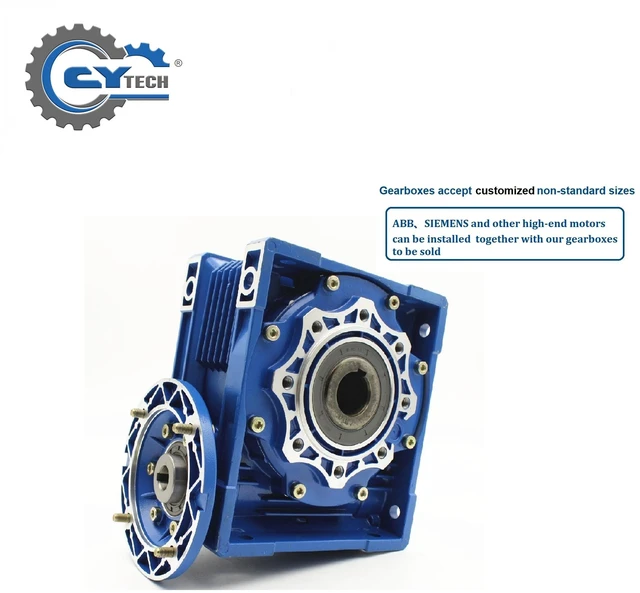

Gearbox NMRV090 Worm Gear Reducer CYRV090 Ratio 100:1 Flange 100B5 Input 28mm Output 35mm CHENYUE TECH

CHENYUE (Jiangsu) Technology Co., Ltd. is a leading manufacturer specializing in worm gearboxes and transmission system solutions. Established in 1993, we have over 33 years of manufacturing experience. Our factory is located in Jiangsu, China, covering an area of 322,800 sq. ft.

We provide factory-direct sales with competitive prices and support 100% factory inspection videos before shipment. ABB, SIEMENS, and other premium motors are available as complete matched solutions with our gearboxes.

We also support OEM & ODM customization. Feel free to send us your drawings or technical requirements.

Specifications

· Ratios: 5:1, 7.5:1, 10:1, 15:1, 20:1, 25:1, 30:1, 40:1, 50:1, 60:1, 80:1 (Custom Gear Ratio Manufacturing Available)

· Input Bore: Ø9 mm, Ø11 mm

· Input Flange: 56B5, 56B14, 63B5, 63B14 (Round or Square Flange Available)

· Output Shaft / Hollow Bore: Ø14 H6

· Output Torque: 521 Nm

· Input Speed: 1400 rpm

· Output Speed: 14280 rpm

· Rated Input Power: 0.060.18 kW

· Housing Material: High-pressure die-cast aluminum alloy

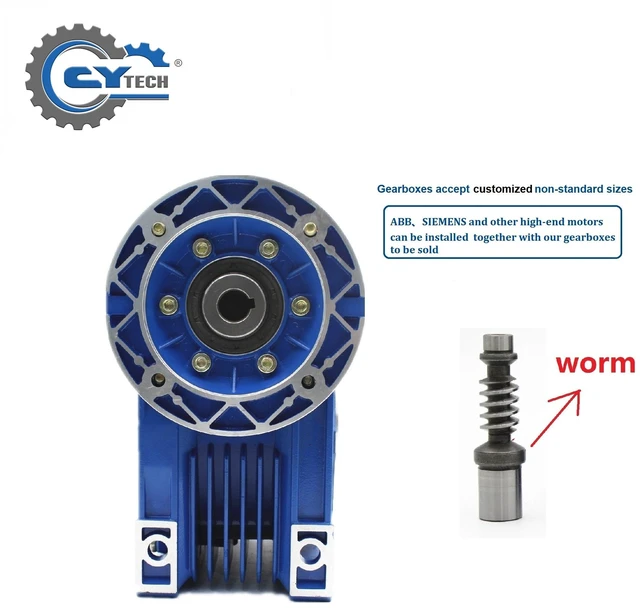

· Worm Wheel Material: Premium Tin Bronze

· Approximate Gross Weight: 1.9 kg

· Mounting Position: Universal mounting in any direction

· Double Reduction Gearbox: Optional

Certifications

CE / RoHS / IAF / CNAS / ISO 9001:2015 / ISO 14001:2015 / ISO 45001:2018

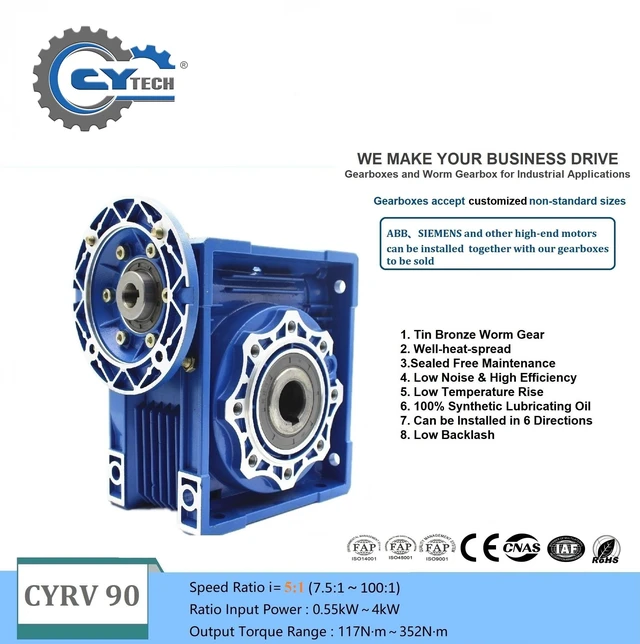

Product Features

· High & low temperature resistance, excellent heat dissipation, low noise, and smooth operation.

· Long Service Life

Durable, energy-efficient, and built for long-lasting performance.

· Maintenance-Free Design

Lifetime synthetic lubricant, fully sealed, and no oil refill required.

Customization Service

OEM & ODM services are available.

We support a wide range of customizations, including:

· Custom input/output dimensions

· Special flanges

· Customized shafts

· Different gear ratios

· Special materials

· Custom colors and logos

Feel free to send us your drawings or technical requirements. Our engineering team is ready to provide customized solutions for your application.+852 5378 4221
