AJMRTC ZK-MGP PWM DC Motor Governor DC5-30V 12A 360W Peak 20A Digital Display Encoder Adjustable Speed Controller, Duty Cycle & Frequency Adjustable, Slow Start Stop for DC Brush Motor Fan Pump DIY
- - Wide DC input voltage DC5V-30V, rated 12A continuous current, peak 20A, max power 360W, stable PWM speed regulation for brushed DC motors, fans and pumps
- - Built-in digital LED display and rotary encoder, real-time show duty cycle, support adjustable PWM frequency from 1KHz to 99KHz
- - Slow start & slow stop function with adjustable time (0.0-9.9s), reduces motor impact and extends service life
- - All configuration parameters support power-off memory; easy wiring via screw terminals, simple panel mounting design
- - Compact module supports 0-100% duty cycle adjustment, ideal for robotics, model, industrial small equipment and DIY electronic projects
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
AJMRTC ZK-MGP PWM DC motor speed governor adopts advanced PWM pulse width modulation technology to realize stepless speed regulation for brushed DC motors. It supports DC 5V to 30V power input, continuous 12A working current and peak 20A, maximum power up to 360W.
Equipped with digital LED screen and rotary encoder, you can directly read duty cycle values and adjust PWM frequency, duty cycle, slow start/stop time conveniently. The slow start and slow stop function effectively suppress instantaneous current shock to protect your motor and power supply. All modified parameters can be saved automatically after power off, no need to reset repeatedly.
With screw terminal connectors and panel mount housing, installation and wiring are quick and clean. Widely used for DC brushed motors, cooling fans, water pumps, robotic models, small automation equipment and electronic DIY modification.
- Brand: AJMRTC
- Model: ZK-MGP

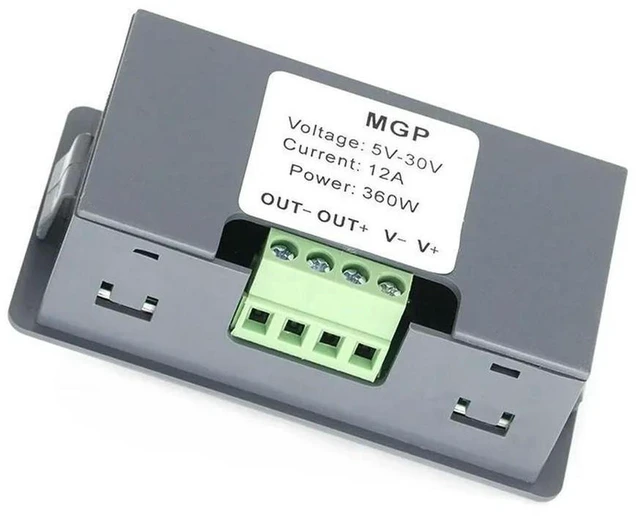

- Input Voltage: DC 5V ~ 30V
- Rated Current: 12A
- Peak Current: 20A
- Max Power: 360W
- PWM Frequency Range: 1KHz ~ 99KHz
- Duty Cycle: 0% ~ 100%
- Slow Start / Slow Stop Time: 0.0 ~ 9.9s adjustable

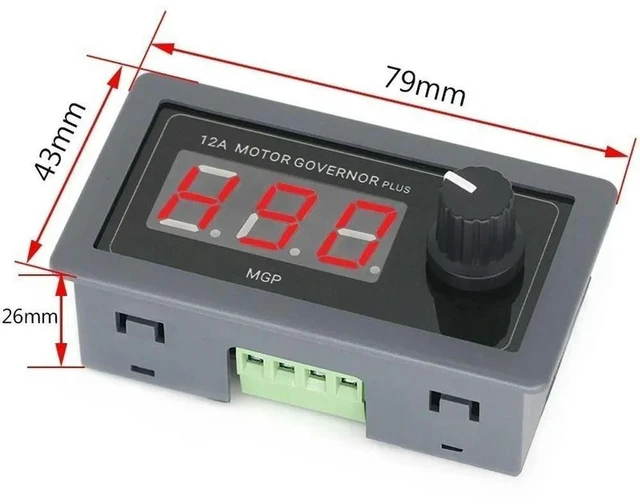

- Dimension: 79mm × 43mm × 26mm
- Mounting Hole Size: 39.3mm × 76.5mm
- Net Weight: 42g
