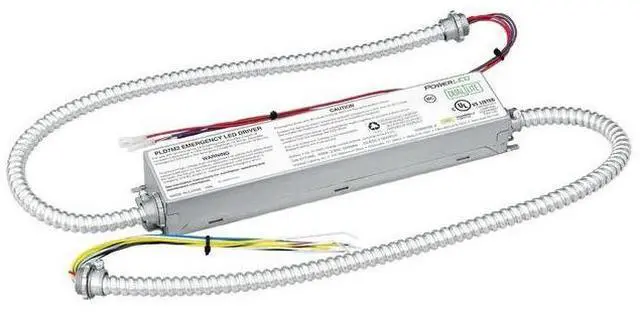

Hubbell Dual Lite PLD7M2 universal input emergency LED battery pack, 120-277V

Hubbell Lighting

Dual Lite PLD7M2KEY_TAB

universal input emergency LED battery pack

• Galvanized steel with two (2) 24 inch conduit


• The PLD7M2 emergency LED battery packs are designed to provide a minimum of 90 minutes of emergency lighting to commercial or industrial LED fixtures.


• Operation is fully automatic. A solid-state charger maintains the battery at full charge as long as utility power is present. Upon interruption of utility power, the unit will activate and KEY_TAB the automatic transfer circuit will switch to the emergency mode, keeping the LED load illuminated for a minimum of 90 minutes.


• Upon restoration of utility power, the PLD7M2 emergency battery packs will return to the charging mode. Full battery recharge is accomplished within 24 hours. A test switch and LED status indicator light is provided for testing and monitoring of unit performance.


• Provides a minimum of 90 minutes of emergency lighting


• Can be used with normally-on, normally-off or switched fixtures


• Constant 7W design provides emergency lighting without loss of lumen output


• Auto-sensing output voltage throughout full Vf range of 15-56VDC


• 2-wire, universal input voltage: 120-277VAC, 50/60Hz operation


• Long life, maintenance-free Nickel-Cadmium battery with 7-10 year life expectancy


• Electronic AC lockout and low voltage disconnect (LVD) circuit


• 2-wire test switch and LED charging indicator supplied standard


• UL 924 Recognized and Damp Location Listed for field installation


• UL 1310 Certified (Class 2 output)


• CSA C22.2 No. 141 (Canadian Life Safety Standard)


• NFPA 101 (Life Safety Code)


• NFPA 70 ( National Electrical Code)


• CEC-400-2014-009-CMF (CEC Title 20 Efficiency Standard)
