$9.49
Meet Your Seller

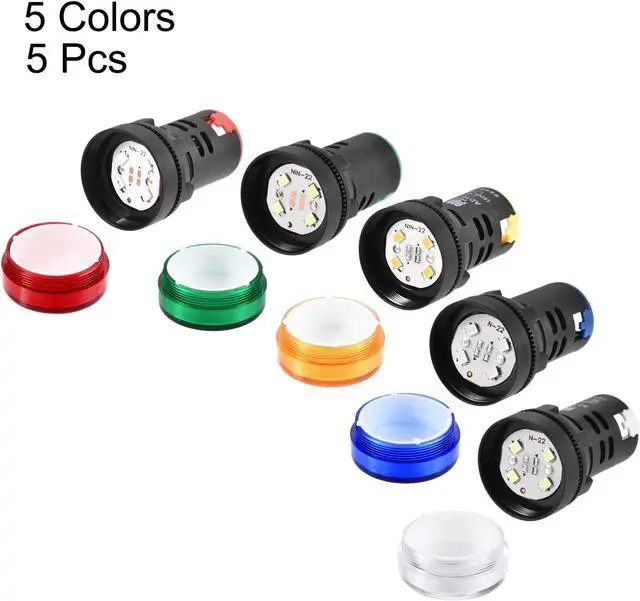

AC/DC 110V Indicator Lights, 22mm Mounting Hole, LED Dust Cover IP54, for Electrical HVAC Control Panel Switch Cabinet, Red Green Yellow Blue White - 5 Colors, Pack of 5
- LED indicator lights drove with AC/DC 110 VOLT. IP54 level can greatly prolong the life of the product.
- Industrial standard 22mm (7/8") mounting diameter. Low behind the panel depth (37mm) and come with a panel locking nut (Fits Panel Thickness: 6mm)

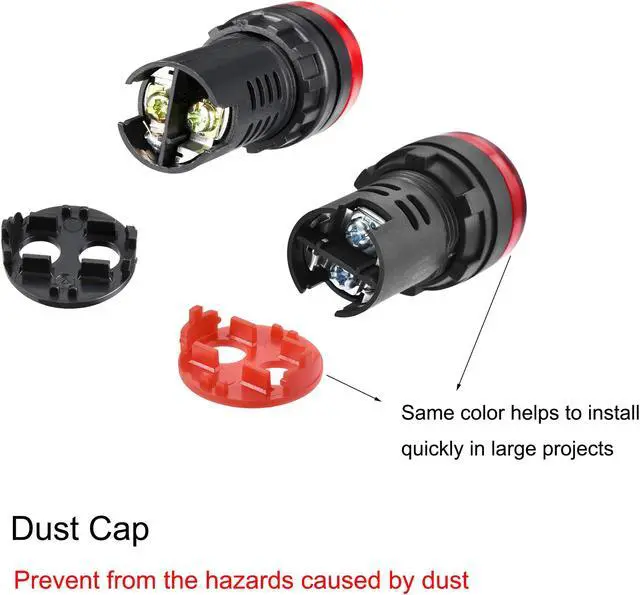

- The color of the LED and the dust cover are the same. So you can install indicator light fastly and save time in large project.
- Screw-clamp connection provides firm contact for reliable operation. Tested over 20,000 hours of using time, they will surely offer a steady performance
- Widely used in the ship, machine tools, machine equipment, switch cabinet and power distribution cabinet, electrical control panel such as HVAC Panel and electrical Panel, DIY Projects such as PLC Training Project.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
-AD16 Series LED Indicators are applied high-bright LED chips as the light source with long service life, low energy consumption, and lightweight. -These indicator lights are mainly used on the circuit or mechanical equipment to monitor and alarm the operation status of the equipment, indicate whether power is on, or show the operating condition of an equipment device.
Technical Indexes:

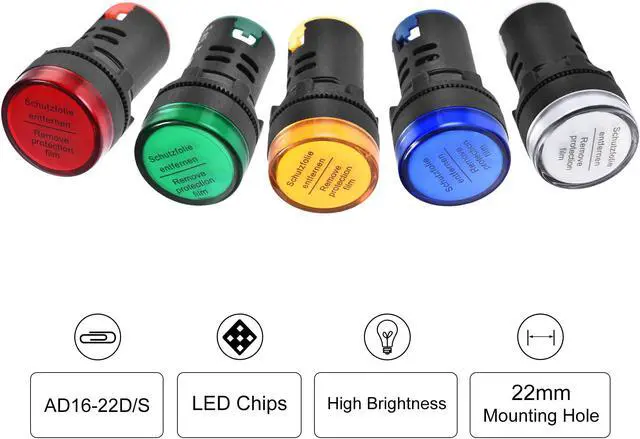

Model: AD16-22D/SRated
Voltage: AC/DC 110VRated
Current: ≤ 20mAIP
Level: IP54Shell
Color: BlackLed and Dust
Cover Color: Red, Green, Yellow, Blue, WhiteContinuous

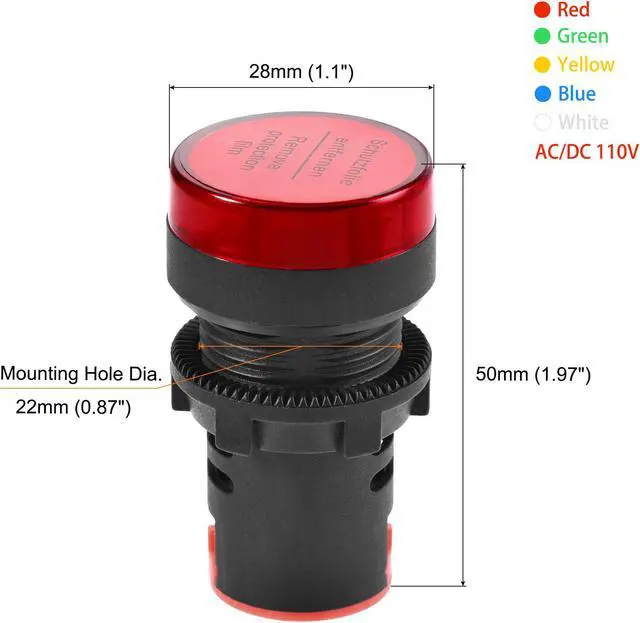

Work-Life: ≥ 20, 000HDimension: Head
Diameter: 28mm ( 1.1

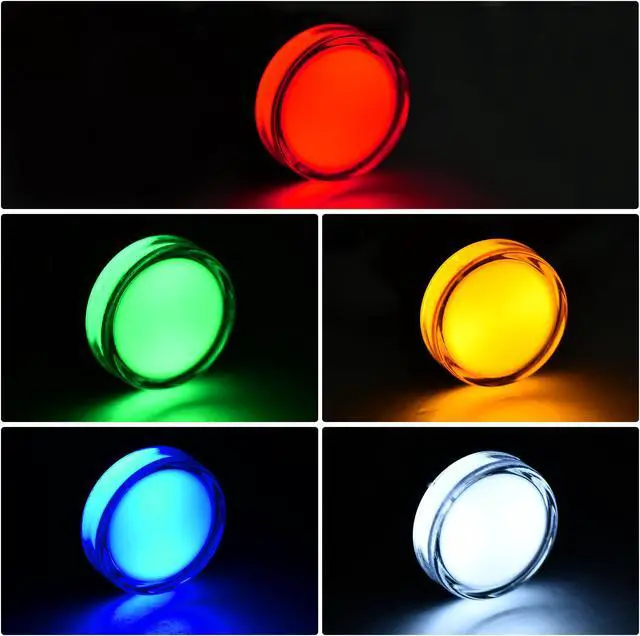

Inch)Overall Length: 50mm ( 1.97 Inch)Bottom End Dia.: 20mm ( 0.79 Inch)Mounting Hole Dia.: 22mm ( 0.87 Inch)Energy Saving & Low Maintenance CostPlenty bright LED chips offer uniform illumination without dark areas. They will surely give you a visual status cue of any indexing signal, anticipating signals, or emergency signals. Ultra-Short Body & Popular 22mm Size-These LED Pilot Lights feature a popular dimension and ultra-short body, which are good for installation places with narrow and small spaces. -Simply drill a 22mm (7/8") hole, and use the included screw ring to secure this Indicator Light to any 110-volt power source. Screw TerminationAssembling with spade terminal connectors (or fork connectors) will provide a tight connection. You may need a screwdriver to help to open the dust-prof cap.
Applications Include: The ship, machine tools, electrical equipment, switch cabinet, and power distribution cabinet. Electrical control panels such as HVAC Panel and electrical PanelDIY Projects such as PLC Training Project.
Technical Indexes:
Model: AD16-22D/SRated
Voltage: AC/DC 110VRated
Current: ≤ 20mAIP
Level: IP54Shell
Color: BlackLed and Dust
Cover Color: Red, Green, Yellow, Blue, WhiteContinuous
Work-Life: ≥ 20, 000HDimension: Head
Diameter: 28mm ( 1.1
Inch)Overall Length: 50mm ( 1.97 Inch)Bottom End Dia.: 20mm ( 0.79 Inch)Mounting Hole Dia.: 22mm ( 0.87 Inch)Energy Saving & Low Maintenance CostPlenty bright LED chips offer uniform illumination without dark areas. They will surely give you a visual status cue of any indexing signal, anticipating signals, or emergency signals. Ultra-Short Body & Popular 22mm Size-These LED Pilot Lights feature a popular dimension and ultra-short body, which are good for installation places with narrow and small spaces. -Simply drill a 22mm (7/8") hole, and use the included screw ring to secure this Indicator Light to any 110-volt power source. Screw TerminationAssembling with spade terminal connectors (or fork connectors) will provide a tight connection. You may need a screwdriver to help to open the dust-prof cap.
Applications Include: The ship, machine tools, electrical equipment, switch cabinet, and power distribution cabinet. Electrical control panels such as HVAC Panel and electrical PanelDIY Projects such as PLC Training Project.
