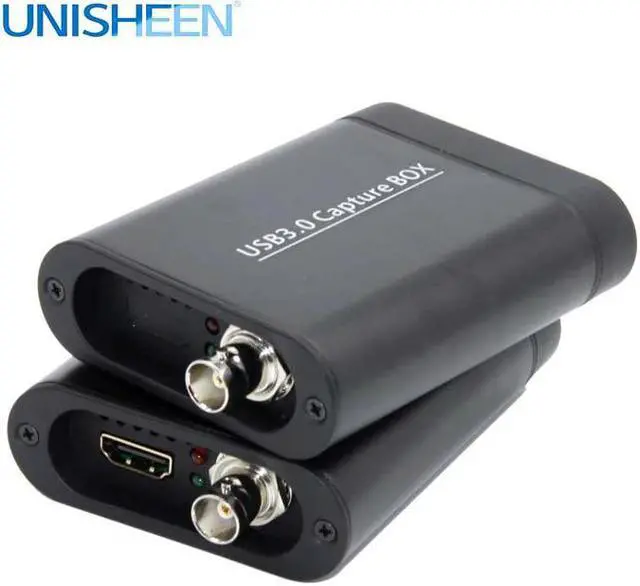

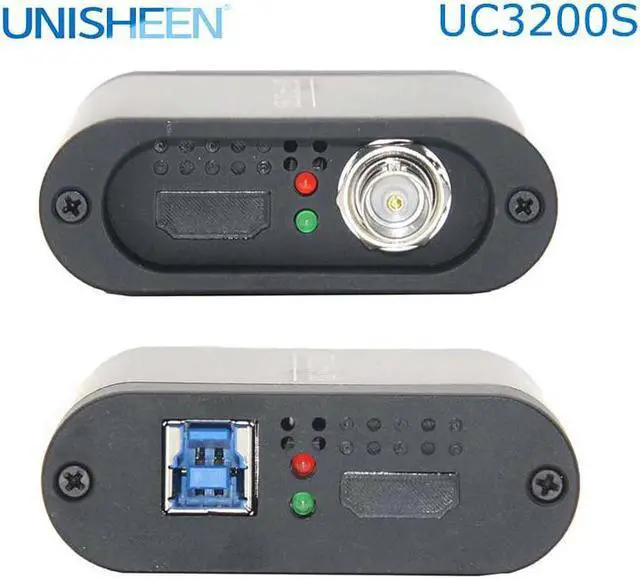

60FPS SDI VIDEO CAPTURE Box FPGA Grabber Dongle Game Streaming Live Stream Broadcast 1080P OBS vMix Wirecast Xsplit

Update:

2020.08.10

1.Enhance /SDI Signal

NOTED:

Due to the speical period,we could only choose shipping  by DHL or Fedex.but even so the shipping will take more days  on the way than usual. If you mind the delivery time ,please contact us before place the order.

Features:

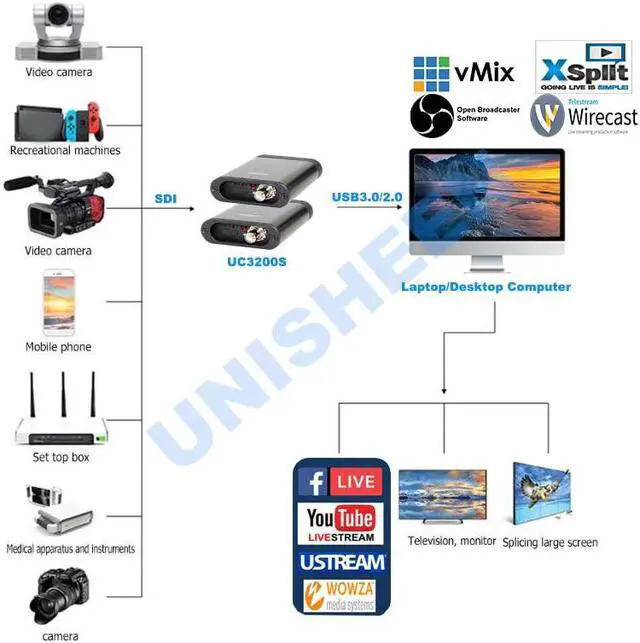

1. Connect multiple dongles to one machine

2. Enable the up/down conversion of video resolution, frame rate and audio sampling rate

3. Support brightness, contrast, hue, saturation, and other screen adjustment functions

4. The video capture meets UVC standard, support YUV 4:2:2 (YUY2) or RGB 4:4:4 (RGB24) video output

5. The video capture meets UAC standard and 48KHz PCM stereo audio output

6. The video processing engine can be updated via firmware without changing the hardware.

7. Automatically detect and de-interlace signals

8. Reliable and Stable: 64MB DDR2 Onboard memory, it can effectively conduct video frame buffer and USB transfer flow control to avoid interruption or error images when the USB transmission bandwidth is occupied.

Pass through 7x24h continuous high load tests in high and low temperatures (0-50 degrees)

9. Easy to Use: No need to install drivers in Windows, Linux, and OS X, real plug and play.

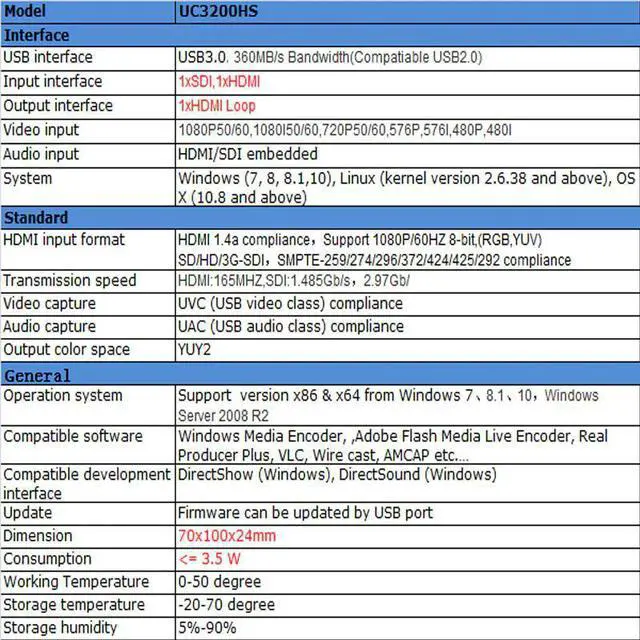

Compatibility:

1. Compatible with various USB 3.0 chipsets (Intel, Renesas, ASMedia, Fresco Logic), compatible with expended USB 3.0 via PCIe Gen1.1 x1

2. Compatible with USB 2.0

3. Compatible operating systems: Windows (7, 8, 8.1), Linux (kernel version 2.6.38 and above), OS X (10.8 and above)

4. Support APIs, such as Windows: DirectShow, DirectSound, Linux: V4L2, ALSA, OS X: QuickTime

Excellent Video Processing:
