2.0 Capture Cards Video Grabber Recorder Live Streaming Audio Adapter for Office Caring Computer Supplies

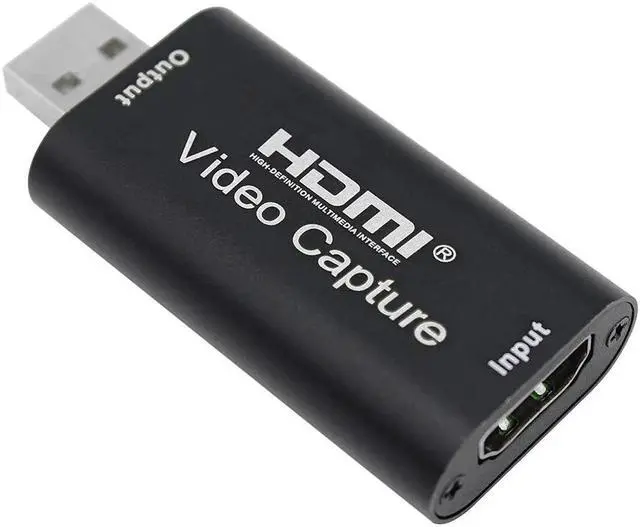

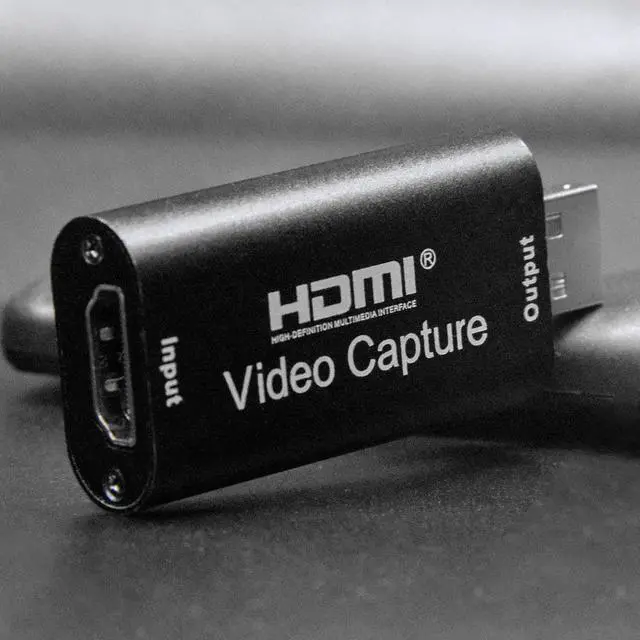

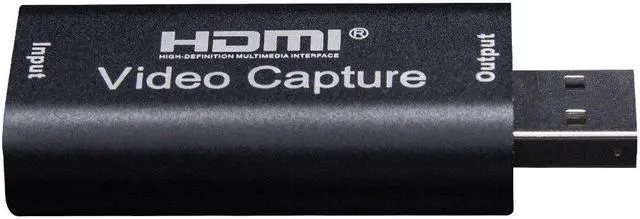

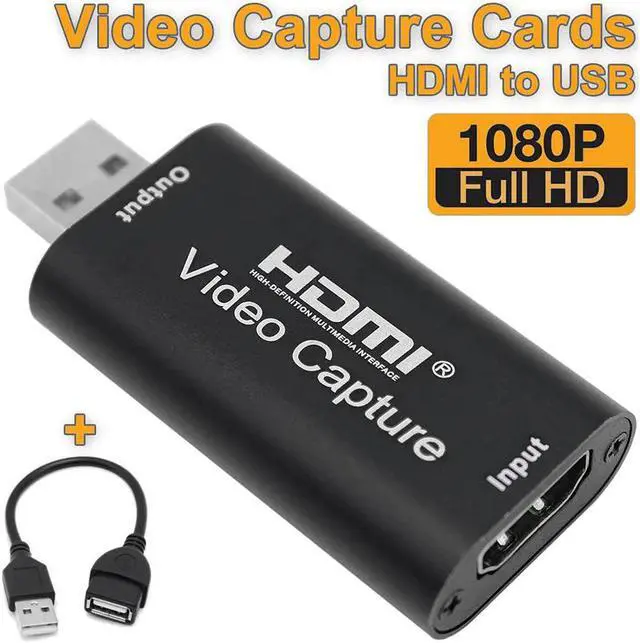

Mini Video Capture Card 2.0 Audio Grabber Recording Box Adapter for DVD Camcorder Live Streaming

Description:

This 2.0 Capture Card can capture video and audio at the same time, and can transmit audio and video signals to computer/smart phone for preview and storage. Suitable for high-definition acquisition, teaching recording, medical imaging, etc.

Feature:

1. Support maximum input resolution up to 3840 x 2160 at 30Hz.

2. Support maximum output resolution up to 1920 x 1080 at 30Hz.

3. Support 8/10/12 bit color depth.

4. When using standard AWG26 cable, input transmission distance up to 15 meters (1080P and below resolution).

5. Support most acquisition software, such as VLC, OBS, Amcap, etc.

6. Support for Windows, Android and MacOS.

7. Comply with video UVC specifications.

8. Comply with audio UAC specifications.

9. No external power supply, compact and easy to carry.

Specification:

Resolution: Highest Input Support 3840 X 2160 at 30Hz

Video Input Format: 8/10/12-Bit Color Depth

Video Output Mode: YUV, JPEG

Video Output Resolution: Maximum 1920 X 1080 at 30Hz

Support Audio Format: L-PCM

Input Cable Length: 15m/49.21ft, AWG26 Standard Cable

Maximum Working Current: DC 0.4A/5V

Operating Temperature Range: (-10-+55)

Line Length: 30cm/11.81"

Size: 64 X 28 X 13mm/2.52 X 1.1 X 0.51"

Computer Hardware Requirements:

CPU: PC i5-3400 or above; NB i7-3537U 2.0GHZ or above

Graphics Card: for PC NVIDIA GT630 or above; NC NVIDIA GT735M or above

Storage: 4G RAM

Connection Operation:

Note:

Packages:

1 X User Manual
