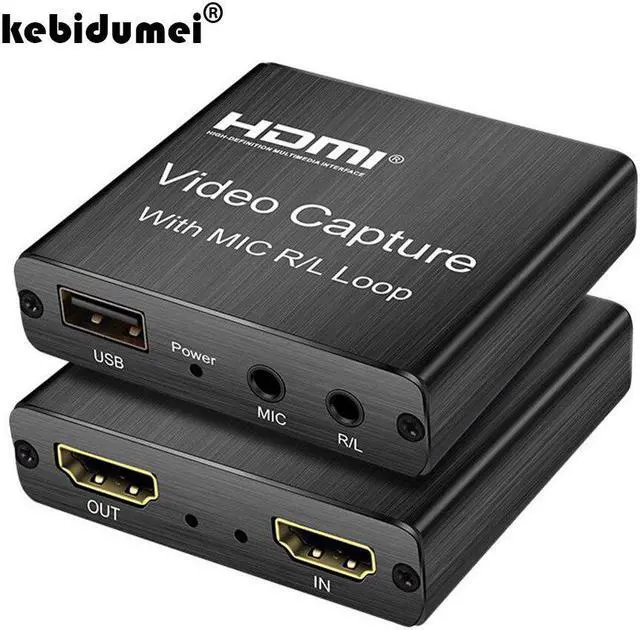

Loop Out Capture Card 4K To USB 2.0 Video Recording Box for PC Game Live Streaming Video Recorder Mic Input Audio Output

Loop Out Capture Card 4K To USB 2.0 Video Recording Box for PC Game Live Streaming Video Recorder Mic Input Audio Output

Description:

This USB2.0 capture card can collect audio and video. audio and video signals can be

transmitted to the computer and smartphone for preview and storage. Suitable for high-definition acquisition, teaching recording, medical imaging, etc.

Features:

l Support input resolution up to 4K

l Support output resolution up to 1080P

l One input, One loop out, Watching and Recording

l One Microphone input

l One 3.5mm stereo output

l Support 8/10/12 bit color depth

l Support AWG26 standard cable, the maximum input transmission distance is 15 meters

1080P and below resolution)

l Support most acquisition software, such as for VLC, OBS, Amcap, etc.

l Support for Windows, for Android and for MacOS

l Complies with USB video UVC specifications

l Complies with USB audio UAC specifications

l No external power supply, compact size, easy to Carry

Specification:

resolution.....................Maximum input support 4K

Video input format ...................... 8/10/12-bit color depth

Video output mode..............................................MJPEG

Video output resolution........ Maximum output resolution

1080P @ 30Hz

Support audio format ............................................ LPCM

Input cable length. 15m, AWG26 standard cable

Maximum working current...........................0.4A / 5V DC

Operating temperature range...................(-10 to + 55 )

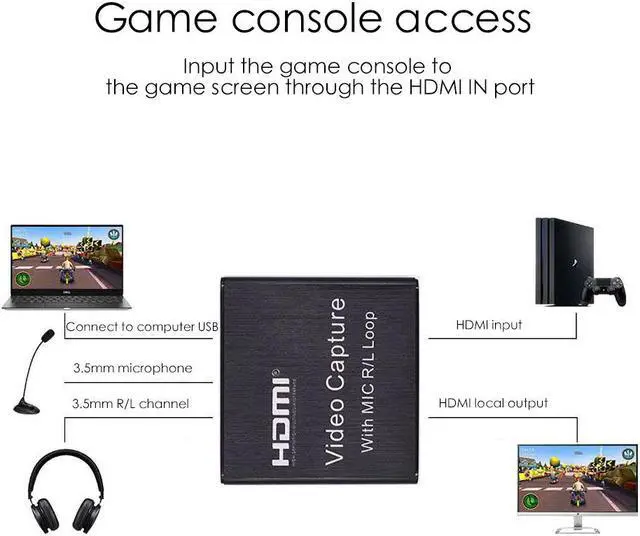

Connection Operation:

Note:

Storage: 4G RAM
