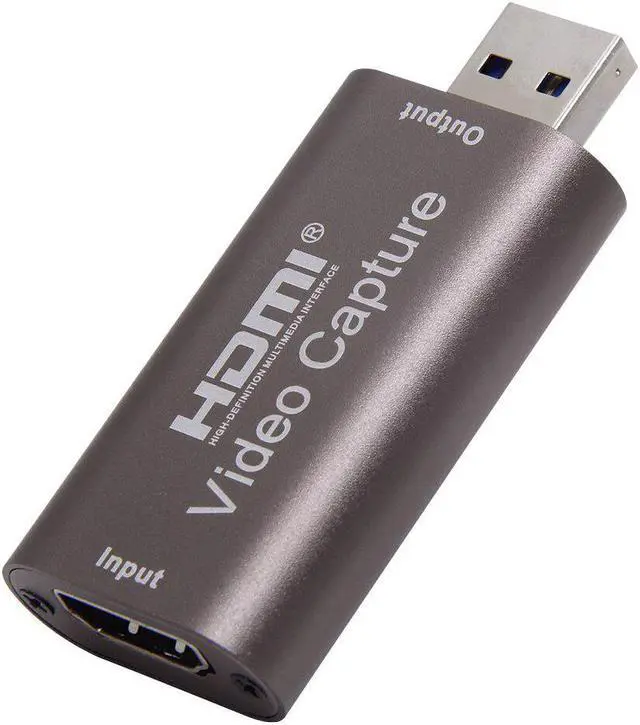

Mini USB 3.0 capture Card Video Recording Box for Game DVD Camcorder Camera Live Streaming

Mini USB 3.0 Capture Card Video Recording Box for Game DVD Camcorder Camera Live Streaming

Introduction:

This USB 3.0 capture card can capture audio and video. Audio and video signals can be transmitted to a computer or smartphone for preview and storage. Suitable for high-definition acquisition, teaching recording, medical imaging, etc.

Feature:

Support the highest input resolution up 3840 x 2160 at 60Hz.

Support the highest output resolution up 1920 x 1080 at 60Hz.

Support 8/10/12 bit color depth.

When using standard AWG26 cable, the input transmission distance is up to 15 meters (1080P and below resolution).

Support most acquisition software, such as VLC, OBS, Amcap, etc.

Supports for Windows, Android and MacOS.

Conforms to the USB video UVC specification.

Conforms to the USB audio UAC specification.

No need for external power supply, small size and easy to carry.

Specification:

Input Resolution: Maximum 3840 x 2160 at 60Hz

Video Input Format: 8/10/12 Bit Color Depth

Video Output Mode: YUV, JPEG

Video Output Resolution: Maximum 1920 x 1080 at 60Hz

Support Audio Format: LPCM

Input Transmission Length: 15m, AWG26 Standard Cable

Maximum Working Current: DC 0.4A/5V

Operating Temperature Range: (-10 - +55)

Product Size: 64 X 28 X 13mm/2.52 X 1.1 X 0.51"

Product Weight: 50g

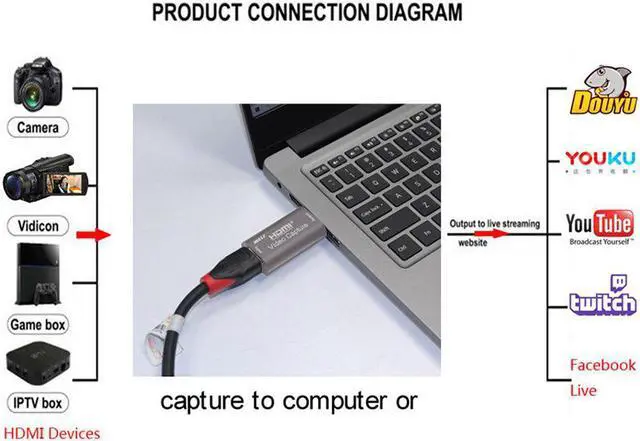

Connection Operation:

1. Connect the signal source and the input port of the USB capture card via 1 cable.

2. Plug the USB male of the USB capture card into the USB port of the computer.

Note:

1 X USB 3.0 Capture Card

1 X Manual
