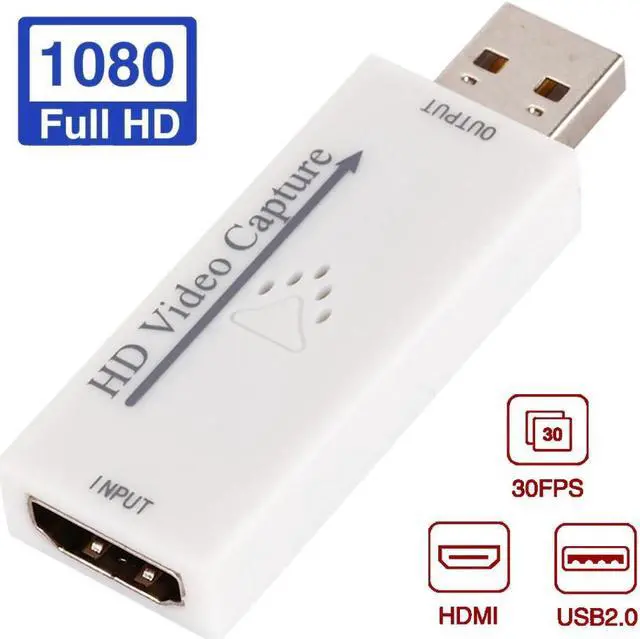

Card Live Stream To USB 2.0 Teaching Adapter HD 1080P Gaming

Features:

Resolution: The maximum input resolution is 4K, and the maximum output resolution is 1080P.

Transmission: 8/10/12 bit color depth;When using standard AWG26 cable, the input transmission distance is up to 15 meters (1080P and below resolution);

Support: Support most acquisition software, support for Windows, for Android and for MacOS;

USB: Comply with USB UVC specification;Comply with USB audio UAC specification;

Portable: No external power supply, compact size and easy to carry.

Specification

Material: Plastic, electronic components

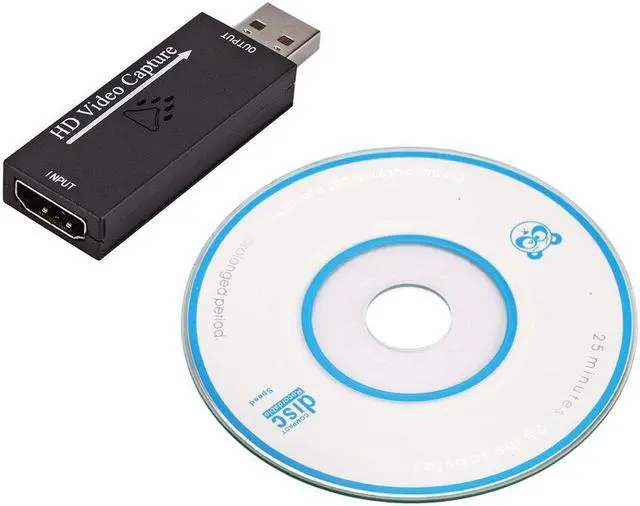

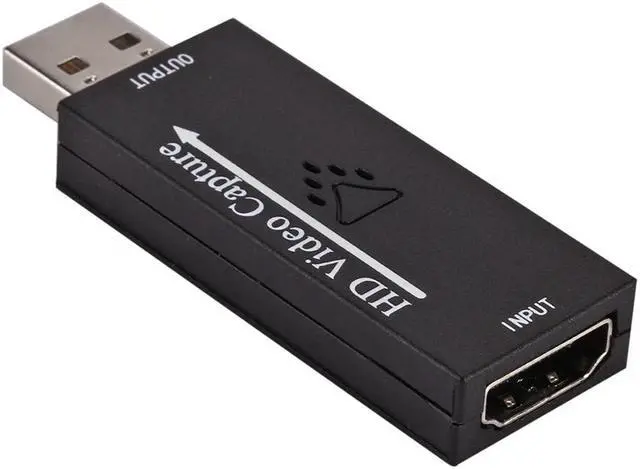

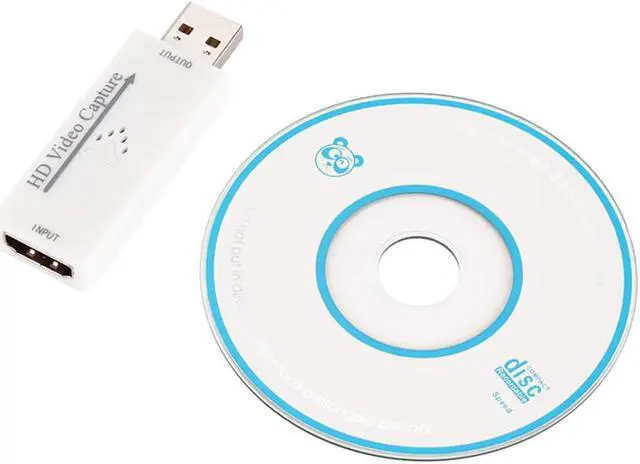

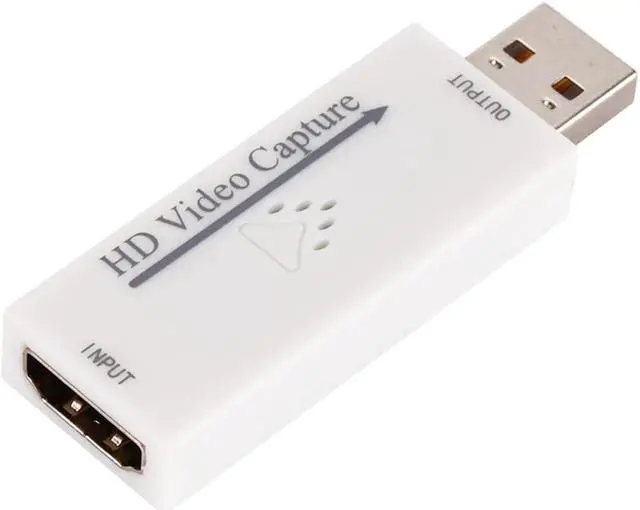

Color: White, black

Size(L x W x H): About 62 x 20 x 10 mm

resolution: 4K for maximum input

input format :8/10/12 bit color depth

output mode :YUV, JPEG

output resolution: Maximum output resolution is 1080P

Support audio format :L-PCM

Input cable length :15 m, AWG26 standard cable

Maximum working current: 0.4a /5VDC

Operating temperature range :-10 to +55

Connection operation:

1: Connect the UHD signal source to the input port of the USB card via an cable

2: Plug the USB socket of the USB acquisition card into the USB port of the computer

3: Acquisition operation steps (OBS): open software add a new source select ' device' Set screen size

Select 'Studio mode' (double window) click 'Start recording', as shown in the figure below

1. Add a new source and select ' device' 2. Set screen size

3. Select 'studio Mode' (double-window) to complete the above Settings.

Tips:

Computer side hardware configuration requirements

CPU: PC I5-3400 or above; I7-3537U 2.0GHZ or above
