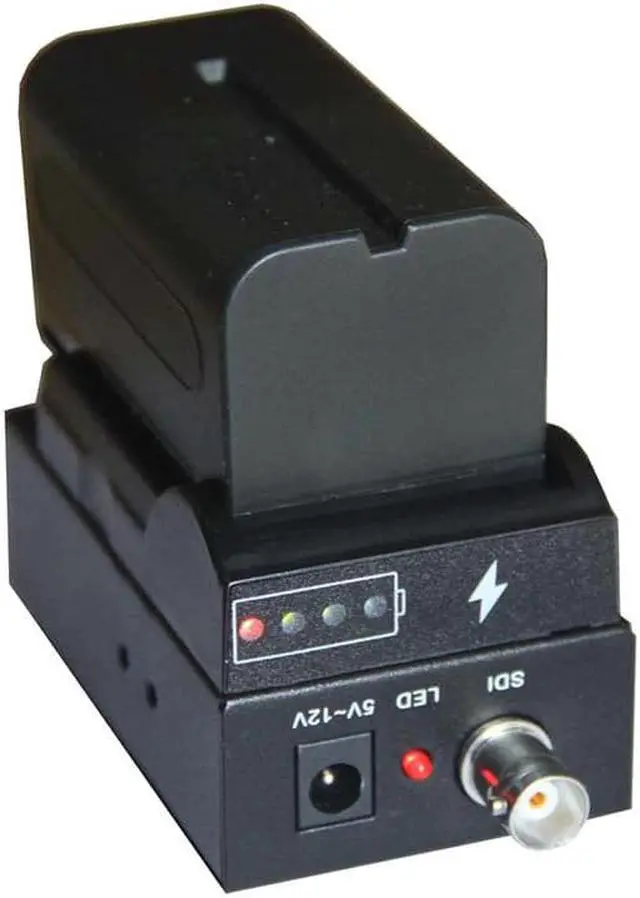

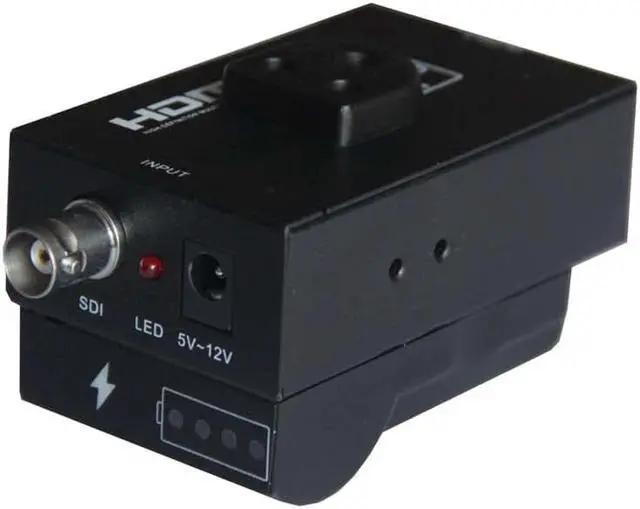

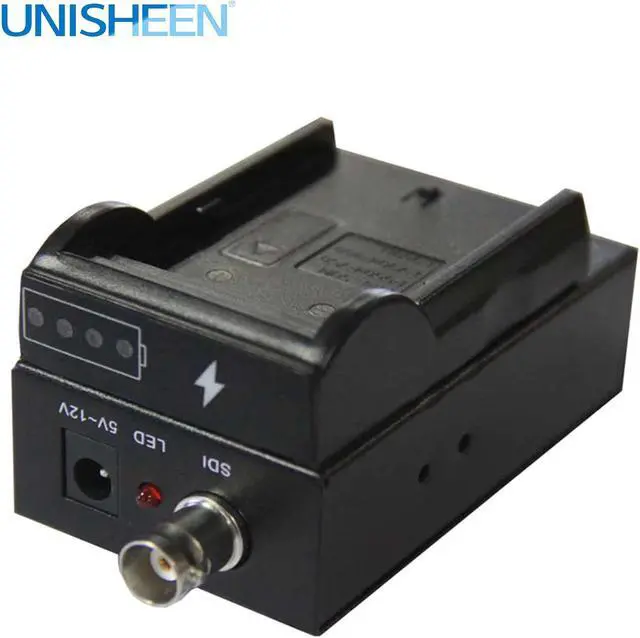

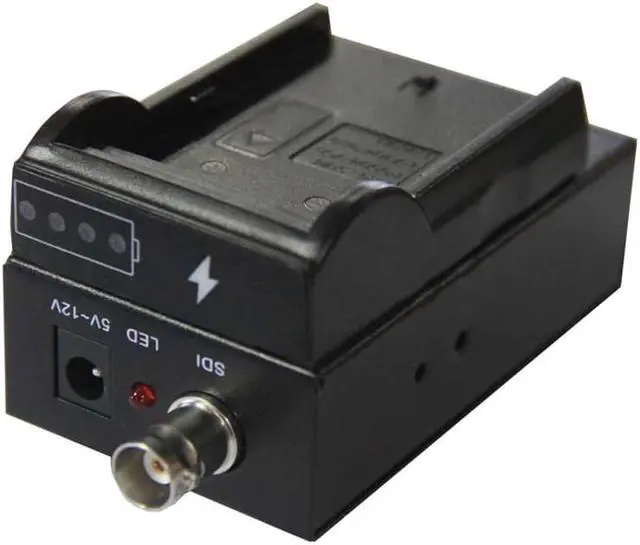

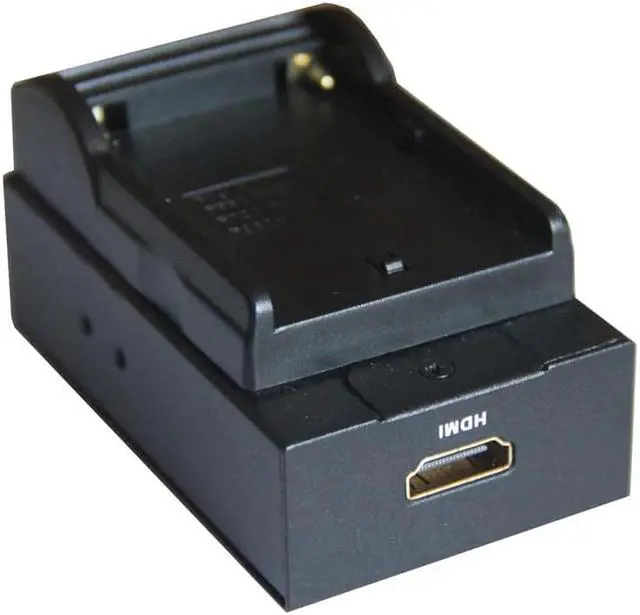

3G-SDI to Video Converter with Battery Socket 1080p Camera Transmmiter

Note

1.There have two model

SDI to (UCT100)

to SDI(UCT101)

Please select model  before shipping

2.The package without battery

Introduction

The MINI SDI to converter allows SD-SDI, HD-SDI and 3G-SDI signals to be shown on displays while ensuring high bit rates of 2.970 Gbit/s to give you fast signal transmission without any loss. For professionals this means that it is now easier to distribute and extend your 3G SDI signal while giving you the ability to display your work on displays thanks to the built in converter.

Features

Operation at 2.970Gbit/s, 1.485Gbit/s and 270Mbits/s

Supports SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C

Equalized and re-clocked loop output Integrated audio de-embedder for a maximum of 8 channel, 48 KHz Audio

Conversion from SMPTE 425M level B to Level A 1080p 50/59.94/60 4:2:2 10-bit

Connect with other units to extend your signal over long distances

Package

Video Converter---------------------------1PCS

5V DC Power Supply Adaptor------------------------1PCS

Operation Manual --------------------------------------1PCS

Specificaitons

Input Port                  1 x BNC (SDI/HD-SDI/3G-SDI) or 1 x

Output Port                 1 x or 1 x BNC (SDI/HD-SDI/3G-SDI)

SDI Transmission Rates      2.970 Gbit/s and 2.970/1.001 Gbit/s

In/Output Resolution        480i, 576i, 720p50/59.94,60 ,1080i50/59.94/60

1080p 23.97/24/25/29.97/30/50/59.94/60

Power Supply                            DC 5V -12V

Battery Supply             F550/F750  Support

ESD Protection Human body model    ±8kV (air-gap discharge) ,

Model:
