Video Capture with Loop out USB2.0 Card Grabber Streaming Live Broadcast Video Recording

Features:* Support loop out;

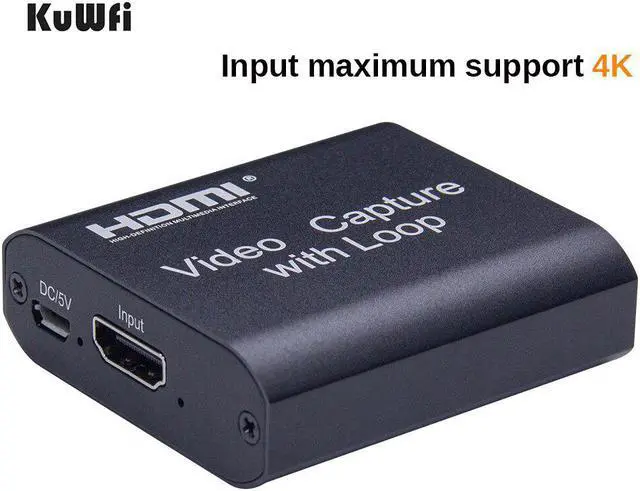

Support input max resolution 4K;

Support output max resolution 1080P;

Support AWG26 standard cable: input up to 15 meters, (1080P and below resolution);

Support most acquisition software, such as VLCOBS Amcap, etc;

Support WindowsAndroid and MacOS;

Conform to USB Video and UVC standard;

Conform to USB Audio UAC standard;

Compact and portable.

Specifications: resolution : Max input can be 4K ;

Support video format :8/10/12bit Deep color ;

Video output format : YUVJPEG ;

Video output resolution : Max output can be 1080P ;

Support audio format: L-PCM;

Input cable distance :15m,AWG26 standard cable ;

Max working current: 0.7A/5VDC;

Operating Temperature range: (-10 to +55) ;

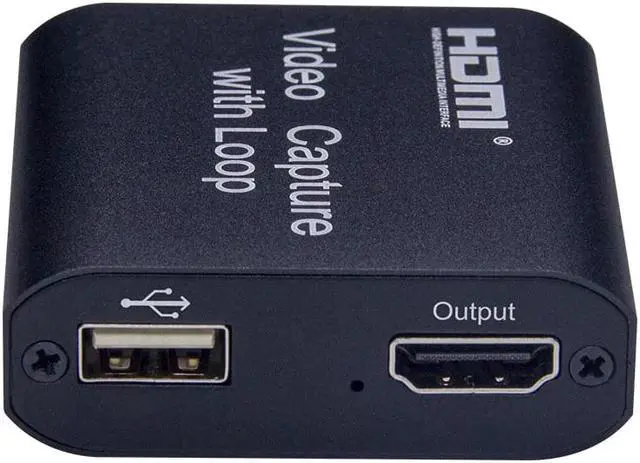

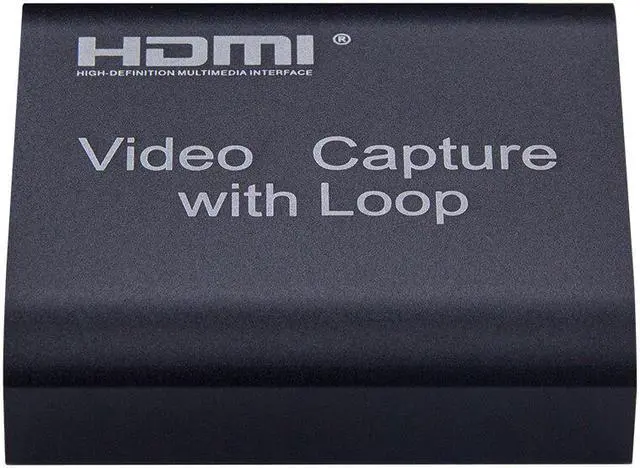

Video Capture With Loop out

The video capture can capture both video and audio, sending audio and video signals to computers and smart phones for preview and storage. Suitable for high definition acquisition, teaching recording, medical imaging, etc.

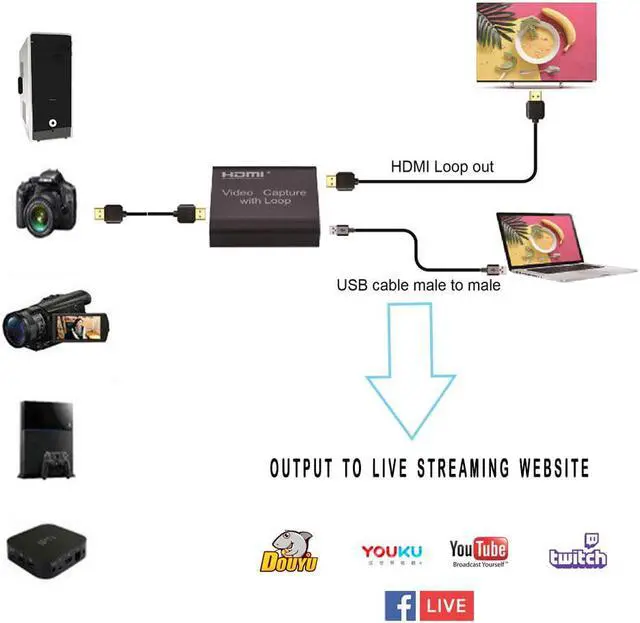

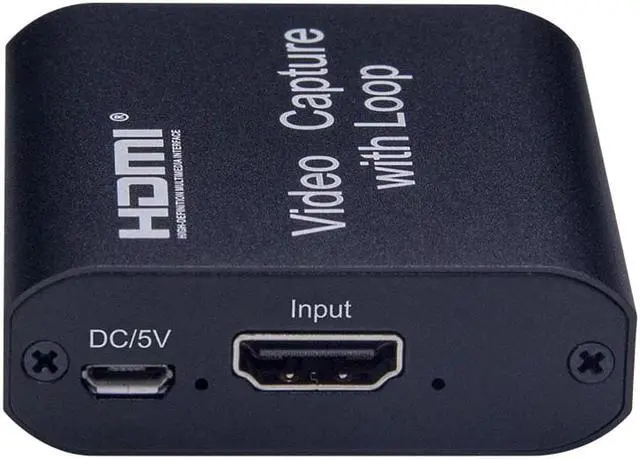

Connection and Operation:1. Connect the UHD signal source to the input of the video capture with one cable.

2. Connect the display device to the output of the video capture with one cable.

3. Connect PC USB port to the USB output of the video capture with one USB cable.

4: Operation steps for USB video capture(OBS): Open the softwareChoose sources of Video capture DeviceSet the size of imageChoose Studio Mode(double window) Choose Start Recording

Operation Example as below:1. Add new sources, choose Video Capture Device

2. Set the size of the image.
