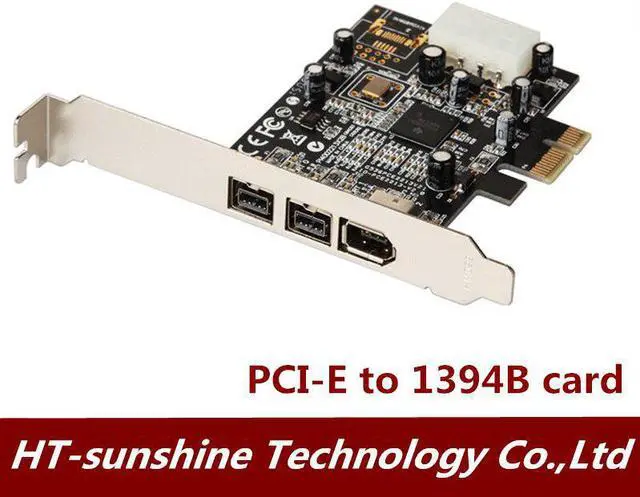

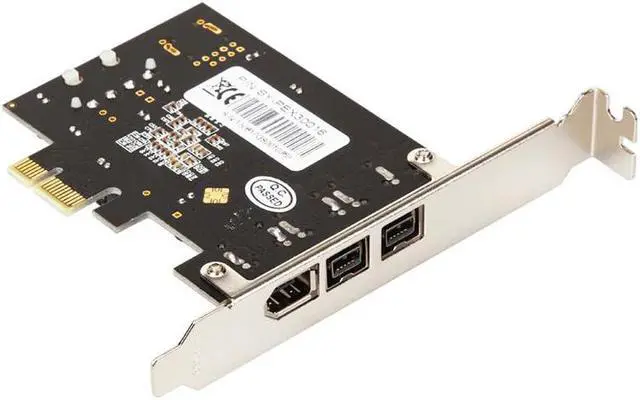

PCI-E to 1394B card DV video capture card 1394 capture card FireWire 800 interface free drive 1pcs

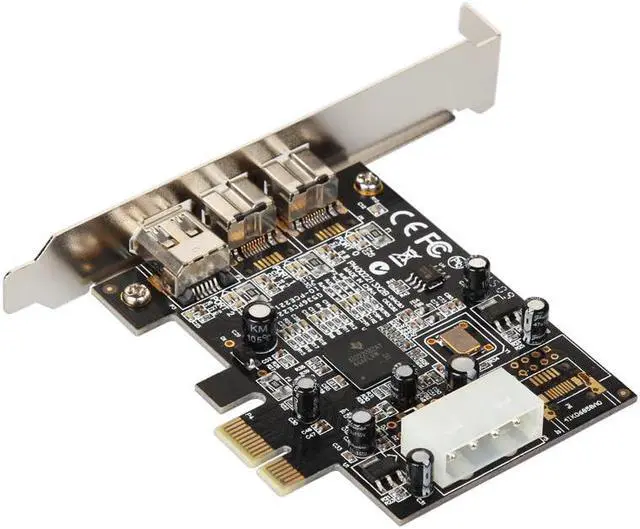

The adapter card has a large D 4PIN power supply interface1. For personal connection to DV camera and camera, only one interface is needed.

2. If it is connected to an industrial camera, use 2 to 3 1394 ports. Then connect the power supply, this will be more stable.

If the motherboard power supply has an interface, connect it.

Product DetailsProduct name: PCI-E to 1394 HD video capture card

Model: MM-PCE1394-2B1A (SY-PEX30016)

Interface: 2 1394B + 1 1394A interfaces

Chip: TI2213

Compliant with PCI-Express v2.0 specification and backward compatible with PCI-Express 1.x. specification

One external FireWire 400 (1394a) 6-pin interface and two FireWire 800 (1394b) 9-pin interfaces.

Comply with IEEE 1394-1995, 1394a-2000 and OHCI 1.1 standards.

Supports asynchronous and isochronous data transmission modes.

The data transmission speed supported by 1394b is 800Mbps/400 Mbps/200Mbps/100Mbps.

The data transmission speed supported by 1394a is 400 Mbps/200Mbps/100Mbps.

Support hot swap.

Support DV camcorders, FireWire hard disks, digital cameras, scanners,

CD-RW/DVD drives, video game systems, and other audio/video equipment.

System Requirements:

Supported operating system Windows? 2000/Server 2003 SP1 or above/Vista/7/Linux

An available PCI-E xpress slot.

package:

1 x PCI-Express IEEE 1394a*1+1394b *2 expansion card

1 x1394 data cable

Precautions:1. The motherboard needs PCI-E slot, X1 X2 X4 X8 X16 display interface can be. But the PCI slot does not work.

2. By default, the baffle of standard chassis 12CM is sent. As shown, if you need a small bezel, please contact the store.

1. The 1394 line is broken
