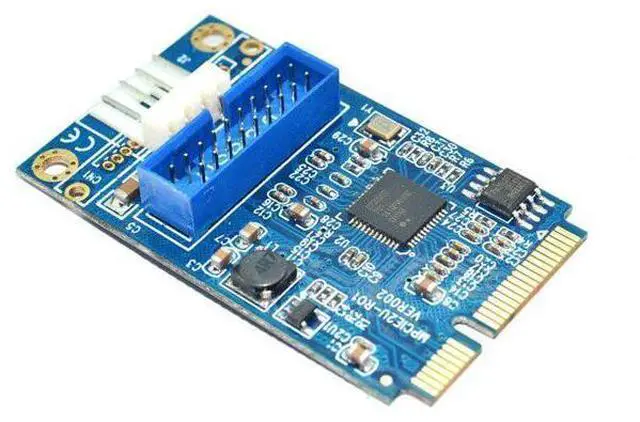

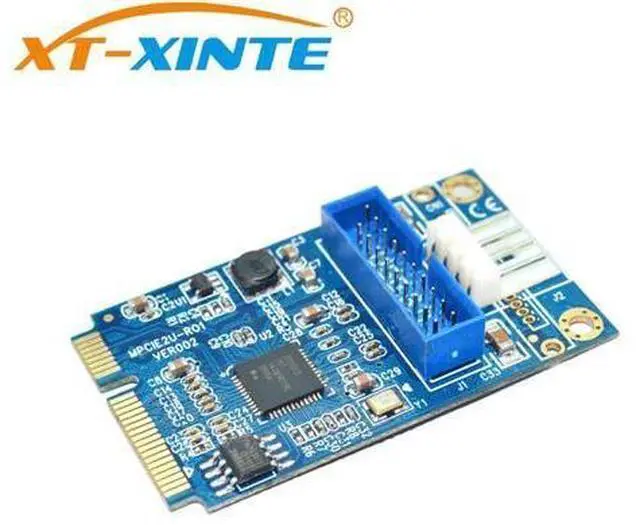

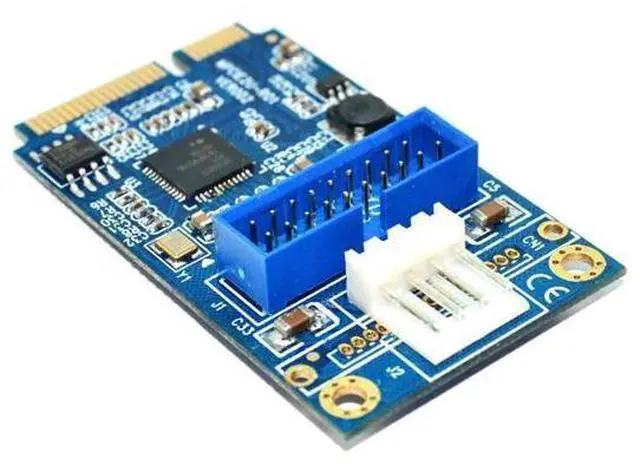

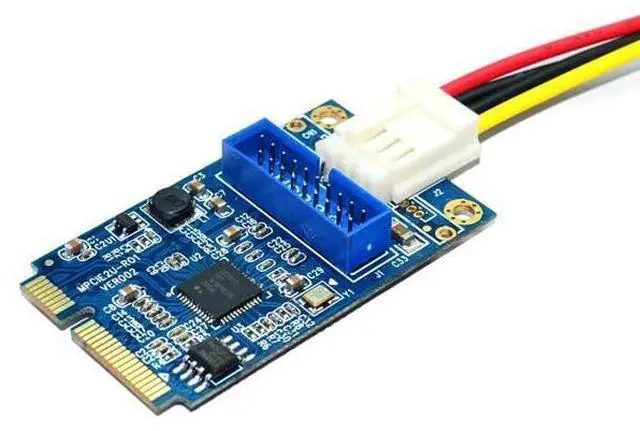

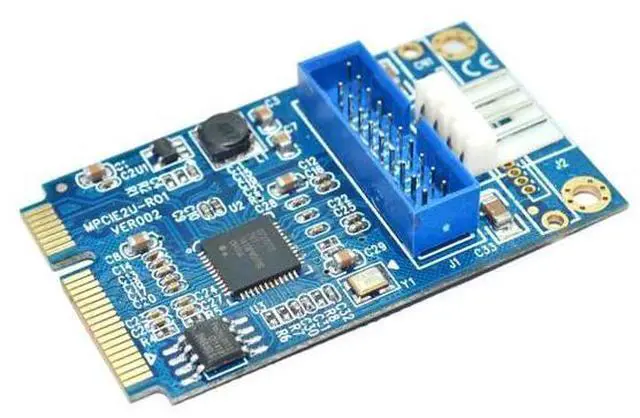

XT-XINTE MINI PCI-E to USB3.0 2-Port PCI Express Riser Card to 4Pin Convertor PCIe Adapter PCIE to19pin USB 3.0 Expansion Card

Origin: CN (Origin)
Type: PCI-E
Riser Certification: None
Products Status: STOCK
Model Number: PCI-E
convertor: USB
3.0 type: USB 3.0
Expansion Card type 1: PCI-E to
USB 3.0 type 2: PCI Express Riser Card RM1641845738262199? XT-XINTE MINI PCI-E to USB 3.0 Adapter Card MINI PCIE to19pin USB 3.0 Expansion Card 2
Ports Product Name: USB 3.0 front 19PIN MINI PCIE expansion card
Product Type: MPCIE2U-R02
Using the master: Renesas uPD720202
Support interface: MINI
PCI-E Master chip: Renesas uPD720202 chipset? For a mini PCIe slot computer expansion of a 19-pin USB 3.0 slot, the theoretical transmission speed of 5Gbps, much higher than the USB 2.0 480Mb / s, up to 10 times; Backward compatible with USB 2.0, USB 1.1, USB 1.0
Transmission rate: 5000/480/12 / 1.5M bps Through the board SATA power, can also be changed to a MINI 4PIN power supply. Built-in 19-pin can be transferred out of two USB 3.0 port Compliant with PCI-Express specification version 2.0 Conform to xHCI specification version 1.0 Compliant with USB 3.0 SuperSpeed specification version 1.0 Support USB hot swap function Support Windows XP/2003 / Vista/win7/win8/2003/MAC 10.8
Please Note: This product is a MINI PCI-E expansion card. It requires an idle MINI PCI-E slot on the motherboard to be installed and used. The PCI slot cannot be installed and used. Never plug it into a PCI slot.
