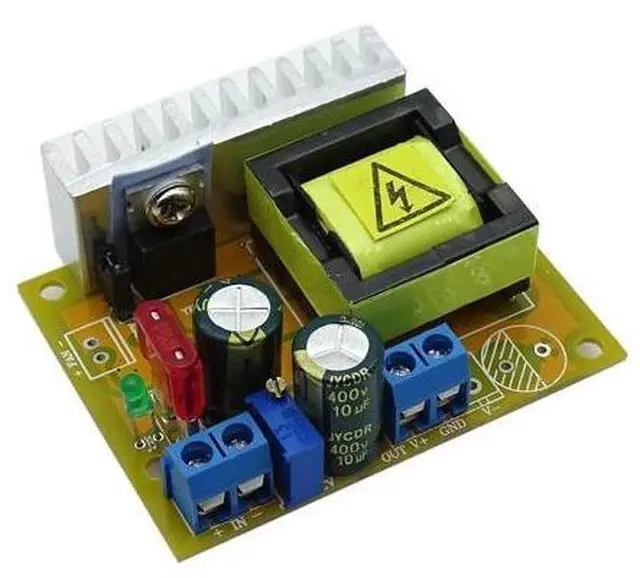

8-32V to 45-390V DC-DC Boost Converter Step Up Power Supply Module High Voltage ZVS Capacitor Charging Board(single output)

Module Name: High Voltage boost module
Module Properties: non-isolated step-up module
Input voltage: 10-32V input (Suitable for width voltage input range)
Input Current: 5A (MAX)
Quiescent current: 15mA(when 12V to 50V, the higher the output voltage, the greater the static current. )
Output voltage: 45-390V780VDual Output continuously adjustable.
Output Current: 0.2A MAX(With the input, output, pressure related.. The higher the voltage, the smaller the output current. )
Output Power: 40W (peak 70W)
Working temperature: -40 ~ + 85 degrees (ambient temperature is too high, please enhance heat dissipation)
Operating frequency: 75KHz
Conversion efficiency: up to 88% (efficiency and input and output voltage, current, pressure-related)
Short circuit protection: Yes. (The input fuse 10A, please do not short circuit output, otherwise damage to the rectifier. )
Overcurrent protection: yes. If the input current is more than 4.5A, reduce the output voltage.
Overvoltage protection: yes. If the output voltage is more than 410V, reduce the output voltage.
Input reverse polarity protection: Yes (No self-healing, connect reverse burning fuse, try not reverse connect. )
Installation: four 3mm screws
Connection: solderless terminals output (with shell welding output)
Module dimensions: 60 x 50 x 22 mm The capacitor charging time measured data: 470uF 390V full time to 2 seconds 1000uF 390V full time to four seconds 2200uF 390V full time to 8 seconds 4700uF 390V full time to 1
