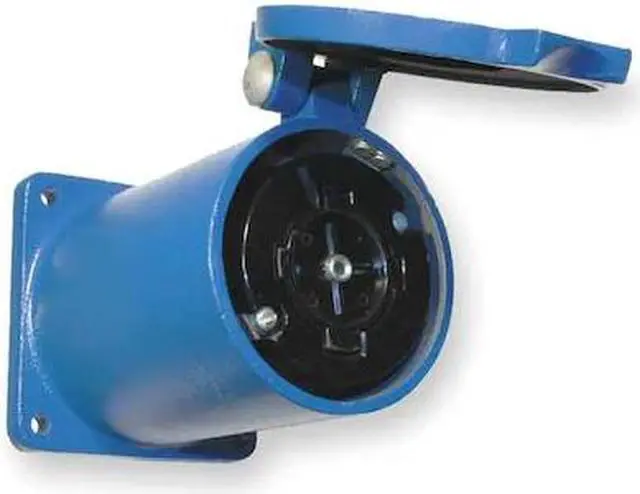

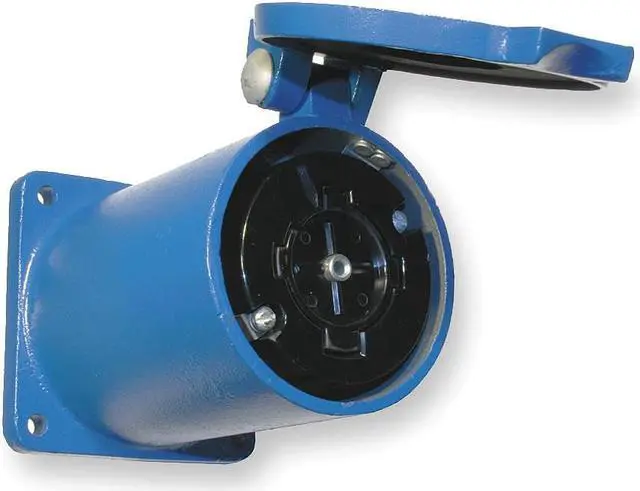

HUBBELL WIRING DEVICE-KELLEMS HBL26520 Locking Receptacle, Non-NEMA, 60 A, 600V

The HUBBELL 60A Locking Receptacle is an industrial electrical device rated for use in specified environments. This flush-mount, non-NEMA locking receptacle features a four-pole, five-wire configuration and is rated for up to 60 amps at 600V AC. The unit incorporates a cast aluminum base with a nylon housing and includes spring-loaded safety shutters.

Key Features of the HUBBELL 60A Locking Receptacle:

• Amperage/Voltage Rating: Rated for 60 A and 600V AC operation


• Configuration: Four poles, five wires; polarized design


• Material Construction: Cast aluminum base with nylon housing; copper alloy contacts


• Mounting Type: Flush mount with screw mounting hardware; rectangular flange shape


• Cord Grip & Strain Relief: Mechanical cord grips clamp down on conductors for strain relief


• Spring-Loaded Safety Shutter: Contains arcing when mating/unmating devices under load and automatically ejects plug


• Box Terminals & Screws: Stainless steel screws


• NEMA Enclosure Rating/IP Rating: NEMA Type 12, 4X enclosure rating; IP20 ingress protection (moisture resistant)


• Operating Temperature Range: -40°C minimum (without impact) to +75°C maximum continuous use


• Flammability/Standards Compliance: UL 94 V0 flammability rating; CSA certified and UL listed standards compliance
