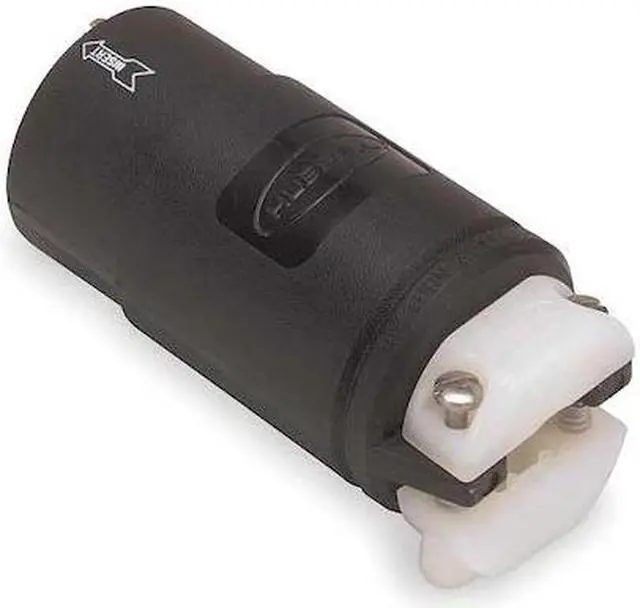

HUBBELL WIRING DEVICE-KELLEMS HBL23002GB Locking Connector, Non-NEMA, 20 A,

The HUBBELL 20/10A Locking Connector is an industrial-grade device rated for use in specified electrical applications. It features a two-pole, three-wire configuration and supports voltage ratings of 125V AC, 250V DC, and 480V AC with a current rating up to 20A. The connector body is constructed from impact-resistant nylon with an insulated thermoset interior, providing durability under harsh conditions. A spring-loaded safety shutter within the connector includes a spring-loaded safety shutter within the connector.

Key Features of the HUBBELL - 20/10A Locking Connector:

• Amperage Rating: Rated for up to 20A; compatible with #16 AWG to #12 AWG stranded copper wire.


• Cable Range: Accepts cable diameters from 0.320" to 0.660".


• Body Material: Black thermoset housing with impact resistance and UL HB flammability rating.


• Contact Material: Bronze contacts molded into the nose for damage resistance.


• Strain Relief: Three-piece clamp assembly provides strain relief; IP30 rated for limited protection against dust and moisture ingress.


• Wire Connection Type: Screw terminals identified per UL 498 standards.


• Operating Temperature Range: Suitable for continuous use between -40°C and +75°C (without impact).


• Safety Feature: Spring-loaded safety shutter present within the connector reduces arc exposure when mating/unmating devices under load.


• NEMA Configuration: Non-NEMA locking design; grounded; straight connection orientation.


• Standards Compliance: UL Listed for industrial/commercial applications in dry indoor locations unless otherwise protected.
