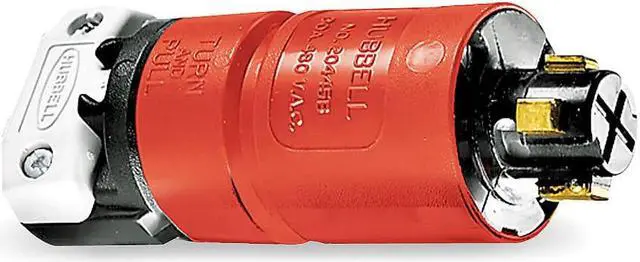

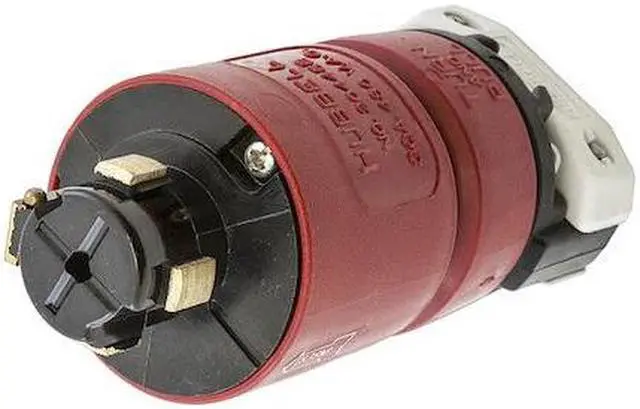

HUBBELL WIRING DEVICE-KELLEMS HBL20445B Locking Plug, Non-NEMA, 30 A, 480V AC,

The HUBBELL 30A Locking Plug 3P 4W 480VAC RD is an industrial-grade locking plug intended for use in industrial environments requiring locking plug configurations. It features a nylon housing for impact resistance and uses screw terminals compatible with #10 AWG to #6 AWG stranded copper wire. Molded-in brass male contacts are integrated into the nose.

Key Features of the HUBBELL - 30A Locking Plug:

• Amperage/Voltage Rating: Rated for 30 A at 480V AC


• Configuration: Non-NEMA, four blades; three poles, four wires; grounded


• Cable Range: Accepts cables from 0.700" to 1.200" diameter


• Wire Size Compatibility: Supports #10 AWG to #6 AWG stranded copper wire


• Nylon body construction


• Connection Type: Screw terminals with pressure pads enhance termination strength


• Molded-In Contacts: Brass male contacts are integrated into the nose


• Strain Relief: Three-piece clamp assembly designed to help limit strain, moisture, and dust entry at connection point


• Operating Temperature Range: Suitable for continuous use from -40°C to +75°C (without impact)


• Flammability Rating & Standards Compliance: UL94 V-0 flammability rating; CSA Certified; UL Listed
