HUBBELL WIRING DEVICE-KELLEMS HBL20418 Flanged Locking Inlet, Non-NEMA, 30 A,

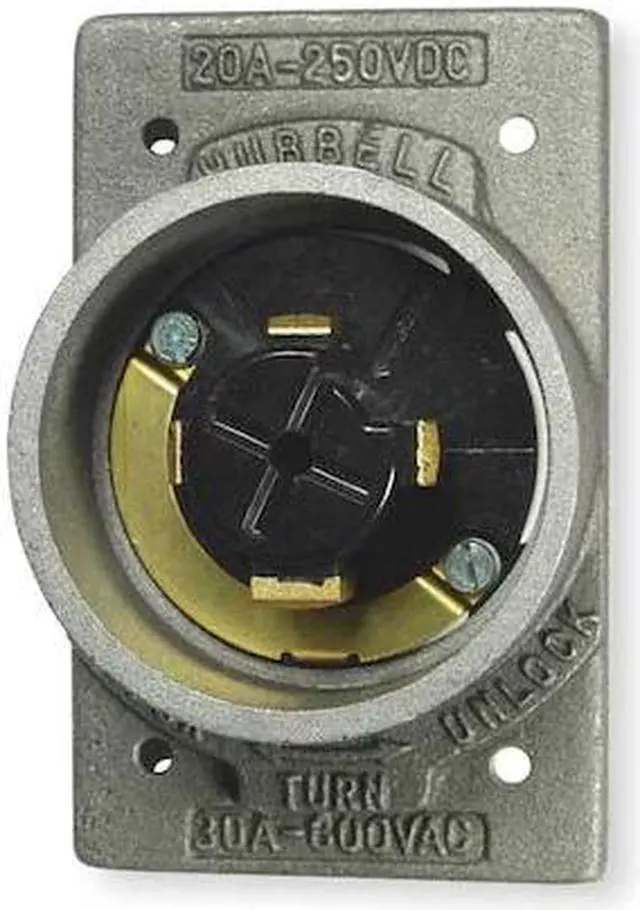

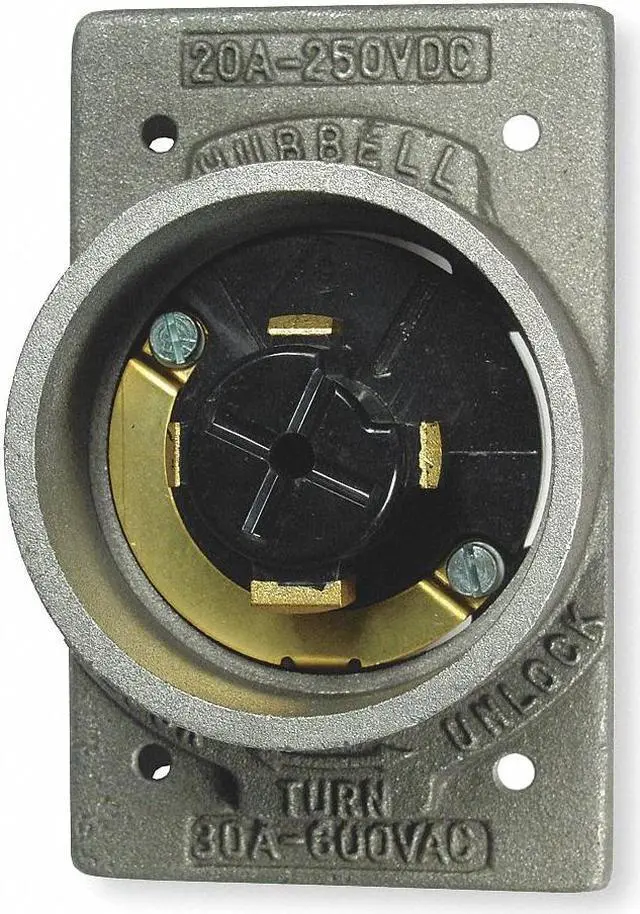

The HUBBELL 30/20A Flanged Locking Inlet is a flush-mount electrical inlet designed for industrial use, for use in indoor, dry locations. It features a Hubbellock locking mechanism and accommodates three-phase wiring with four wires and three poles. The device supports up to 30 amps at 600VAC or 250VDC and is constructed with aluminum housing, steel flange, and brass blades.

Key Features of the HUBBELL 30/20A Flanged Locking Inlet:

• Current Rating: Rated for up to 30 A


• Voltage Rating: Supports 250/600V AC operation


• Number of Poles/Wires: Three poles, four wires configuration


• Blade Material: Brass blade construction


• Housing Material: Aluminum housing with steel flange


• Mounting Type: Flush mount design; flanged type inlet


• NEMA Enclosure Ratings: Meets NEMA Types 12, 4, and 4X requirements; IP30 rated


• Wire Size Compatibility: Accepts #10 AWG - #6 AWG solid or stranded copper wire only


• Screw Terminals: Standard screw terminal wiring style identified per UL 498 (X, Y, Z, White, Green)


• Operating Temperature Range: -40°C minimum to +75°C maximum continuous operation (without impact)


• Certain Standards Met: CSA Certified; UL Listed compliance
