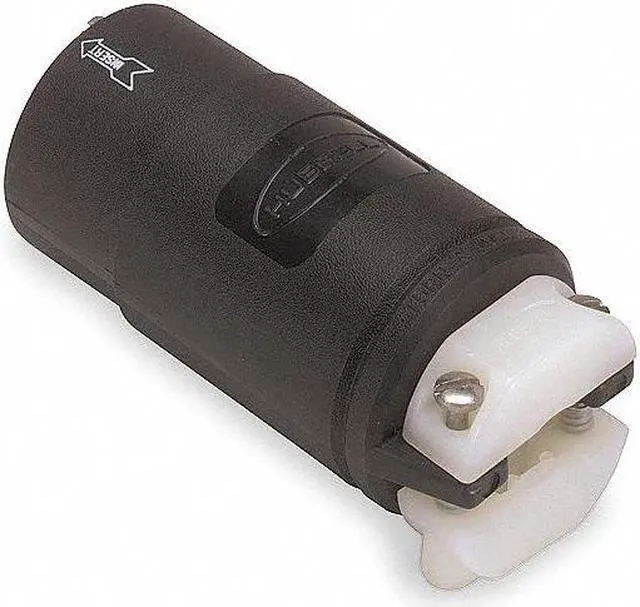

HUBBELL WIRING DEVICE-KELLEMS HBL23001HGB Locking Connector, 20 A, 125V AC,

The HUBBELL 20A Hospital Locking Plug is a locking connector intended for use in hospital-grade applications. It includes a nylon housing and insulated body; rated for use in indoor dry locations. The plug supports 2-pole, 3-wire grounding configurations; rated at 125V AC and 20A.

Key Features of the HUBBELL - 20A Hospital Locking Plug:

• Amperage/Voltage Rating: Rated for 20 A at 125V AC single phase


• Conductor Range: Accepts #14 AWG to #12 AWG wire sizes


• Cord Size Compatibility: Supports cords with diameters from 0.320 in to 0.660 in


• Housing Material: Nylon composite housing


• Contact Material: Bronze contacts molded into the nose for damage resistance


• Cable Retention: Mechanical cord grips provide strain relief


• Connection Type: Pressure terminal screws (screw terminals) for wiring connection


• Temperature Rating: Operates continuously from -40°C (w/o impact) up to +75°C


• NEMA Configuration: Non-NEMA; straight connection orientation; grounded design


• UL Listed and UL94 HB flammability rated; IP20 ingress protection level
