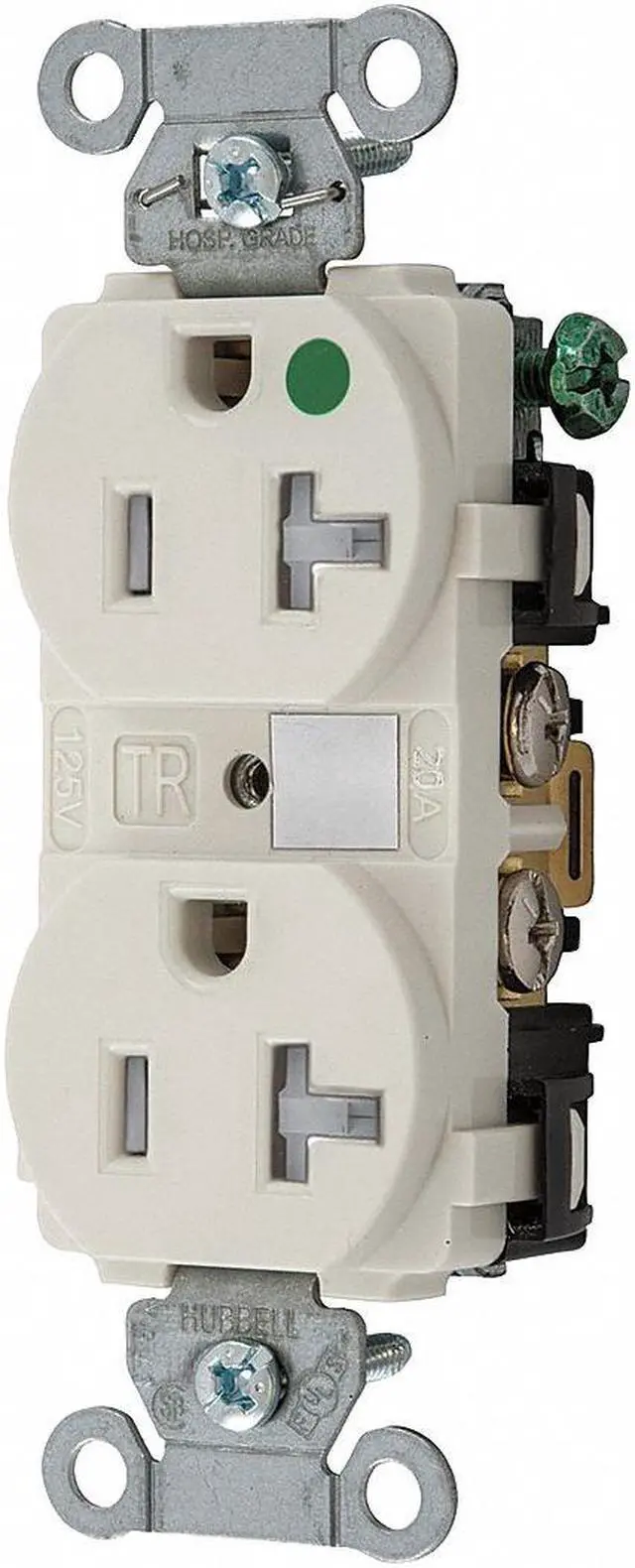

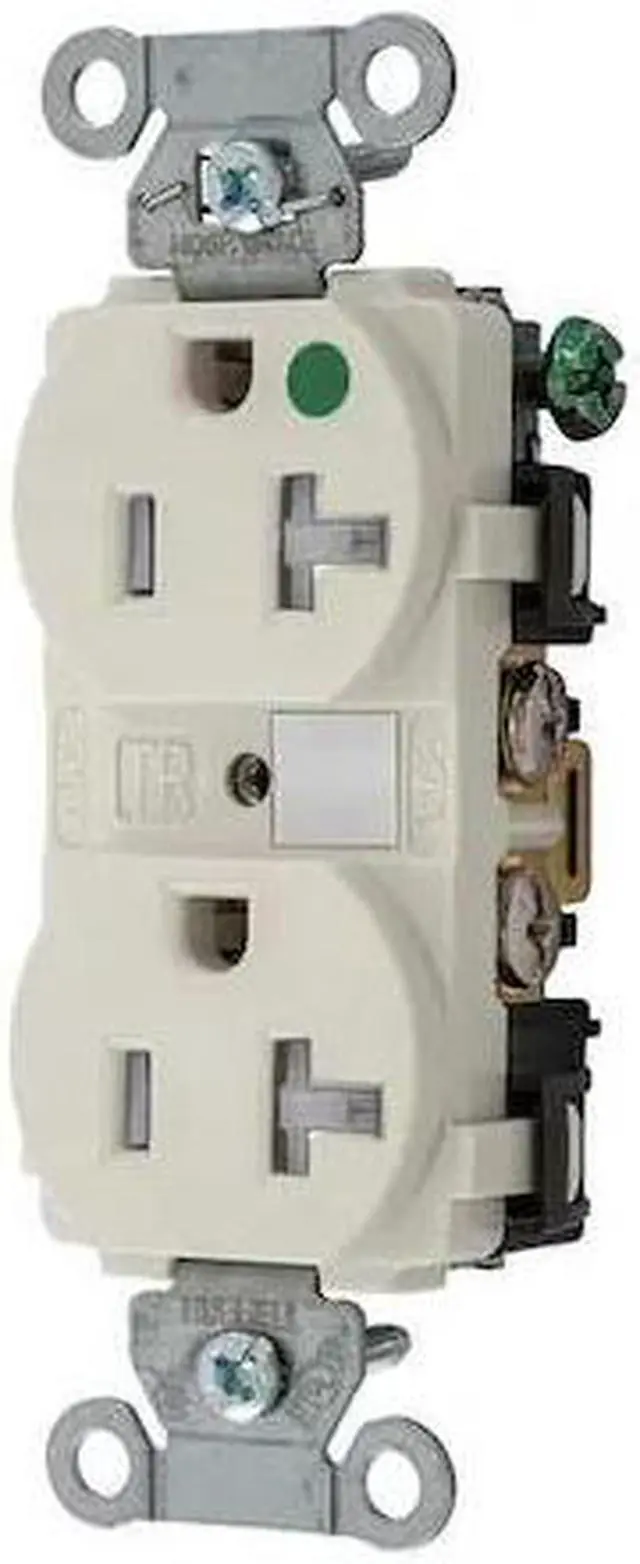

HUBBELL WIRING DEVICE-KELLEMS 8300LATRA Duplex Straight Blade Receptacle,

The HUBBELL 20A Duplex Receptacle 125VAC 5-20R Almond is a traditional duplex electrical outlet designated as "hospital grade" per applicable standards. It features tamper-resistant shutters and a high-impact nylon face with an area for circuit identification. The receptacle supports both back and side wiring methods and includes mounting hardware for flush installation.

Key Features of the HUBBELL 20A Duplex Receptacle:

• Amperage/Voltage: Rated for 20 A at 125 VAC, rated for use in typical 20A, 125VAC branch circuits.


• Tamper Resistant: Built-in shutter mechanism includes a shutter mechanism intended to reduce the risk of foreign object insertion.


• Wiring Options: Supports both back and side wired connections; accommodates #12#10 AWG stranded or solid copper wire only.


• Material Construction: High impact resistant nylon face; galvanized steel mounting strap; brass contacts and ground terminals.


• Mounting Type: Flush mount design with included screw mounting hardware.


• NEMA Configuration: NEMA 5-20R, compatible with corresponding plugs.


• Certifications & Standards: UL Listed to UL498, CSA Certified C22.2 No.42, Federal Specification W-C-596, NEMA WD-6 compliant.


• Operating Temperature Range: -40°C to +75°C (without impact).
