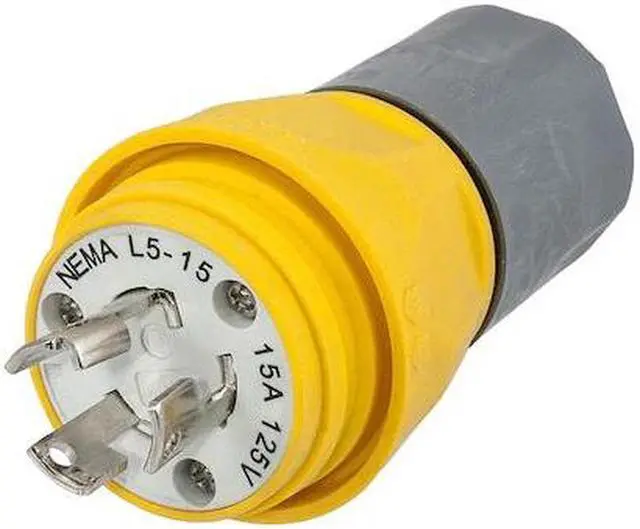

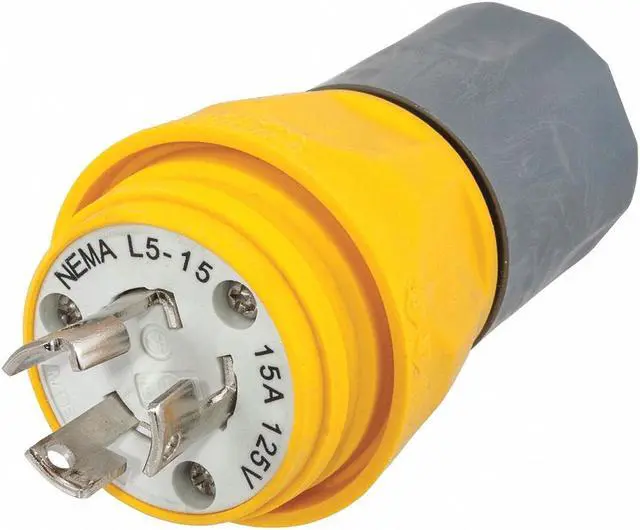

HUBBELL WIRING DEVICE-KELLEMS HBL24W47A Watertight Locking Plug, L5-15P, 15 A,

The HUBBELL 15A Watertight Locking Plug (L5-15P) is a two-pole, three-wire plug designed for industrial electrical connections intended for use in environments where watertight and weather-resistant characteristics are specified. It features a smooth thermoplastic elastomer body designed to facilitate cleaning and minimizes debris collection. The plug is rated for 125V AC operation at up to 15 amps, with nickel-plated brass blades and contacts.

Key Features of the HUBBELL 15A Watertight Locking Plug:

• NEMA Configuration: L5-15P locking design intended to maintain connection integrity in various settings.


• Ingress Protection: Rated IP69K for protection against high-pressure water and dust ingress.


• Material Construction: Thermoplastic elastomer housing with Valox components; stainless steel hardware at connection points.


• Cord Accommodation: Accepts cable diameters from 0.375" to 0.625".


• Operating Temperature Range: -40°C to +60°C (continuous).


• Wire Compatibility: Compatible with wire sizes from 16/3 SJ to 10/3 SJ, and 18/3 S to 12/3 S types via screw terminals.


• Standards Compliance: Complies with the following standards: ANSI, NEMA WD-1, WD-6; UL Listed Types: 4, 4X, 12, 6, and 6P.


• Special Features: Construction includes materials rated as moisture-, dust-, UV-, chemical-, impact-, and weather-resistant per manufacturer specifications; polarized blade arrangement supports alignment during installation.
