HUBBELL WIRING DEVICE-KELLEMS HBL29W82 Watertight Locking Connector, L22-30R,

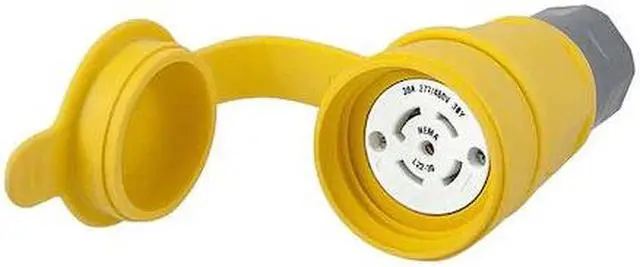

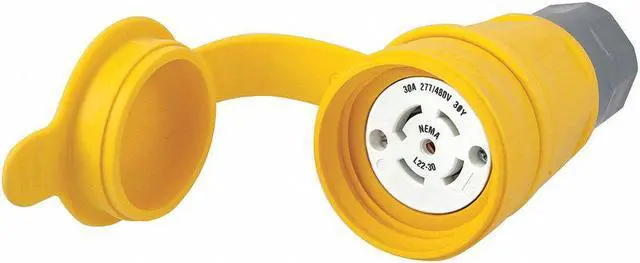

The HUBBELL 30A Watertight Locking Connector (L22-30R) is an electrical connector intended for industrial and commercial applications. It features an IP69K rated enclosure with a smooth body design to minimize debris collection and simplify washdown processes. The connector accommodates 4 poles and 5 wires, supports three-phase power at 277/480VAC, and utilizes screw terminals for secure wire connections.

Key Features of the HUBBELL 30A Watertight Locking Connector:

• Current/Voltage Rating: Rated for 30 amps and 277/480V AC operation


• NEMA Configuration: L22-30R; meets NEMA WD-1, WD-6, ANSI standards


• IP69K rated; constructed to withstand exposure to water and corrosive elements


• Material Construction: Thermoplastic elastomer housing with nickel-plated brass contacts; UV stabilized materials


• Cord Accommodation: Accepts cable diameters from 0.375 in to 1.125 in; maximum wire size up to 8 AWG


• Rated for operation within a temperature range of -40°C to +60°C


• NEMA Enclosure Ratings: Complies with NEMA Types 4, 4X, 6, and 6P for moisture resistance


• Smooth body design with strain relief nut
