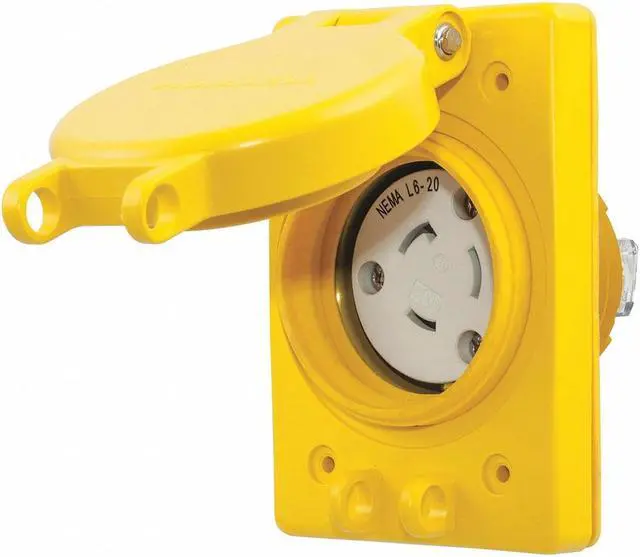

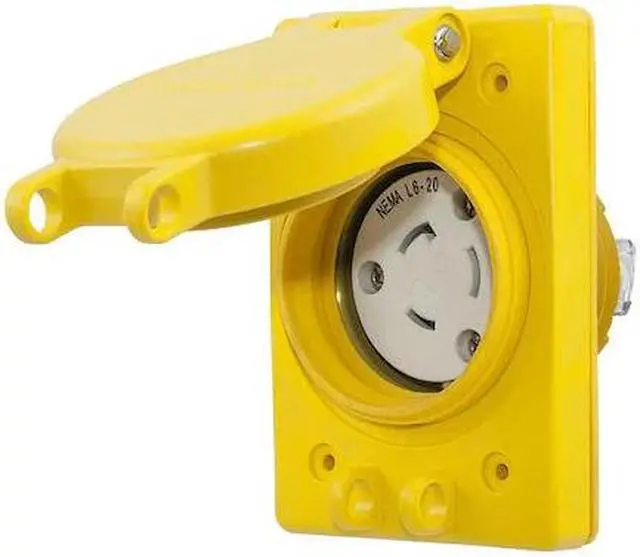

HUBBELL WIRING DEVICE-KELLEMS HBL67W48 Watertight Flanged Locking Receptacle,

The HUBBELL 20A Watertight Locking Receptacle is a flanged, flush-mount electrical device suitable for use in environments requiring rated watertight and impact-resistant electrical connections. This receptacle features a lift cover and is suitable for both panel mounting on flat surfaces and installation to FD/FS boxes. It accommodates NEMA L6-20R configurations with 2 poles, 3 wires, rated at 250V AC and 20 amps.

Key Features of the HUBBELL 20A Watertight Locking Receptacle:

• Watertight Design: Rated IP69K; complies with NEMA enclosure types 4, 4X, 6, 6P, and 12.


• Impact Resistance: Features a PBT lid, cover plate, and receptacle body.


• Corrosion Resistant: Includes stainless steel hardware and connection points made from corrosion-resistant materials.


• Material Construction: Housing made from thermoplastic elastomer; contact material is nickel-plated brass; insulation also uses thermoplastic elastomer.


• Cord Compatibility: Accepts wire sizes from #18 AWG to #8 AWG via screw terminals (standard wiring style).


• NEMA Configuration: L6-20R locking configuration with straight connection orientation; polarized design intended to align with compatible connectors.


• Operating Temperature Range: Suitable for continuous operation from -40°F to +140°F (-40°C to +60°C).


• Standards Compliance: Meets ANSI standards as well as NEMA WD-1 and WD-6 requirements; current interrupting per UL498 testing protocols.
