HUBBELL WIRING DEVICE-KELLEMS HBL25W49 Watertight Locking Connector, L6-15R, 15

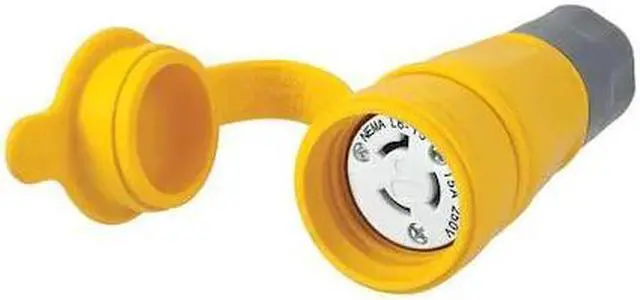

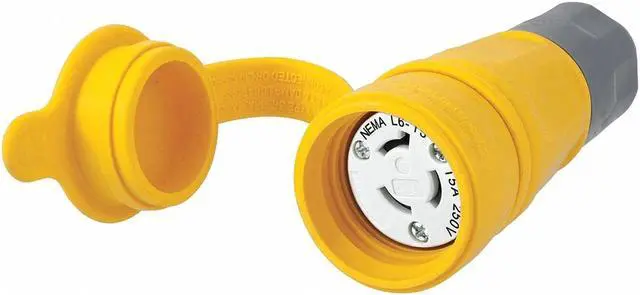

The HUBBELL 15A Watertight Locking Connector (L6-15R) is a two-pole, three-wire device rated for 250V AC and suitable for industrial and commercial applications. This connector features a smooth thermoplastic elastomer body that features a smooth thermoplastic elastomer body intended to facilitate cleaning procedures. It accommodates cord sizes from 0.300 to 0.625 inches and uses screw terminals for secure wire connections.

Key Features of the HUBBELL 15A Watertight Locking Connector:

• Body and Housing Material: Thermoplastic elastomer with Valox components constructed with thermoplastic elastomer and Valox components provides durability and resistance to harsh conditions.


• Contact Material: Nickel-plated brass contacts are used for electrical connections support reliable electrical performance.


• NEMA Enclosure Rating: Rated NEMA 4, 4X, 6, 6P, and 12; see specifications for enclosure suitability including wet locations suitable for wet locations requiring watertight protection.


• IP Rating: IP69K rating per standard testing methods (see manufacturer documentation) indicates high resistance to water ingress during cleaning or operation.


• Cord Accommodation: Accepts cable diameters from 0.375" to 0.625".


• Wire Size Compatibility: Supports wire sizes from #18 AWG up to #10 AWG (16/3 SJ to 10/3 SJ; 18/3 S to 12/3 S).


• Operating Temperature Range: Rated operating temperature range: -40°C to +60°C.


• Corrosion Resistance & UV Stabilization: Exposed materials are specified as corrosion resistant and UV stabilized per manufacturer information.


• Standards Compliance: Meets NEMA WD-1, WD-6, ANSI standards; UL listed as moisture resistant with dielectric strength of up to 2500V AC.

KEY_TAB
