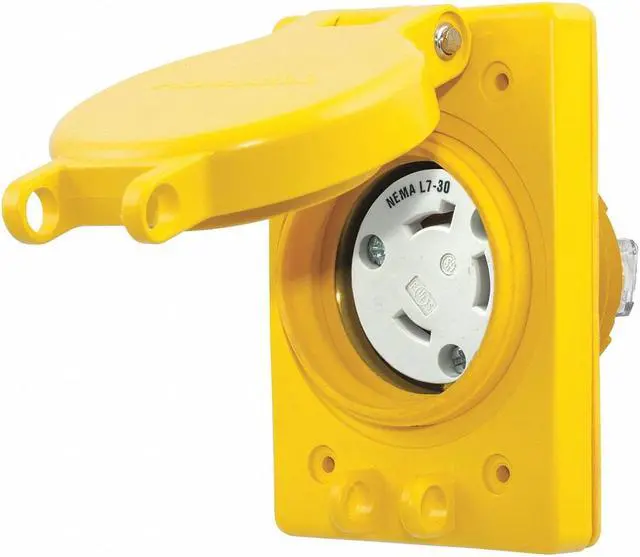

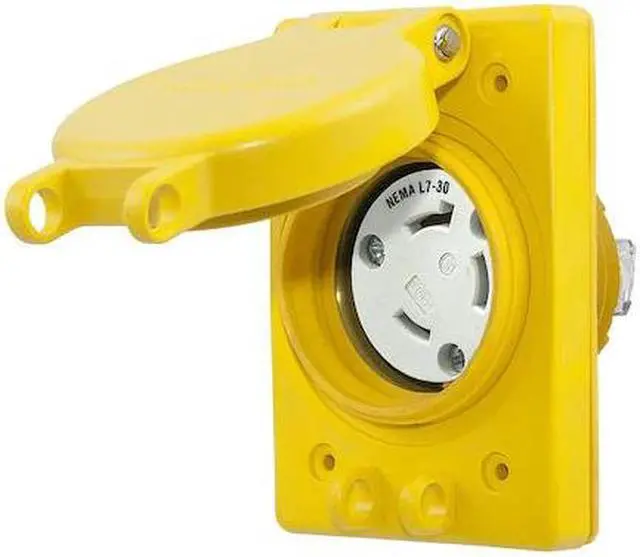

HUBBELL WIRING DEVICE-KELLEMS HBL69W49 Watertight Flanged Locking Receptacle,

The HUBBELL 30A Watertight Locking Receptacle is suitable for use in industrial settings where watertight power connections are specified. This receptacle includes a 2-pole, 3-wire configuration rated for operation at 277V AC; compatible with #18 AWG to #8 AWG conductors. Its construction includes a PBT lid, thermoplastic elastomer housing and insulation, and metallic components. The unit complies with NEMA enclosure ratings (3R, 3RX, 4, 4X, 6, and 6P) and IP69K standard for moisture resistance.

Key Features of the HUBBELL - 30A Watertight Locking Receptacle:

• NEMA Configuration: L7-30R; locking type; screw terminal wire connection


• Current/Voltage Rating: Rated at up to 30 A at 277V AC single phase


• Wire Range: Accepts #18 AWG to #8 AWG conductors


• Material Construction: Nylon body with thermoplastic elastomer seal; nickel-plated brass contacts; stainless steel hardware


• Mount Type: Flush mount with rectangular flange shape


• Enclosure Ratings: Meets NEMA types 3R, 3RX, 4, 4X, 6 & IP69K requirements for watertightness and durability in harsh conditions


• Operating Temperature Range: -40°F to +140°F (-40°C to +60°C)


• Standards Compliance: Conforms to ANSI and NEMA WD-1/WD-6 standards; UL498 current interrupting rated
