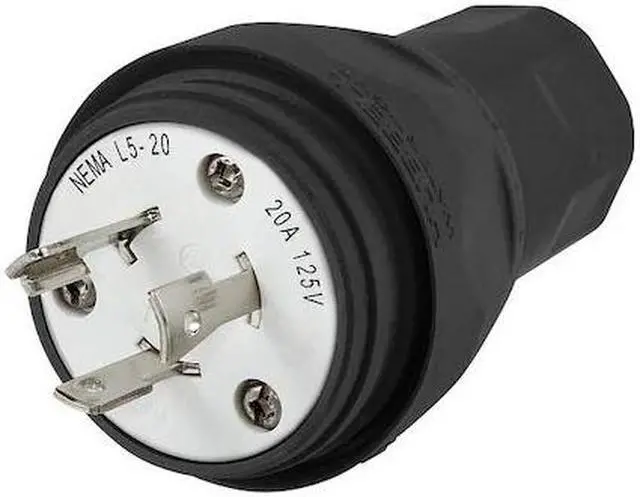

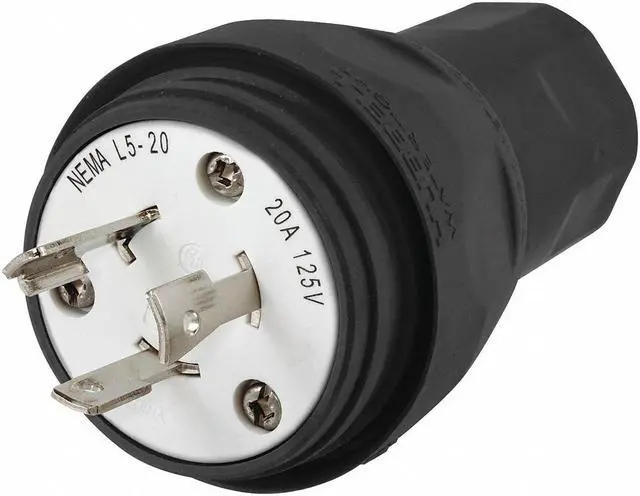

HUBBELL WIRING DEVICE-KELLEMS HBL26W47BK Watertight Locking Plug, L5-20P, 20 A,

The HUBBELL 20A Watertight Locking Plug (L5-20P) is an electrical plug rated for use in specified environments. Featuring a smooth body design and watertight construction; suitable for washdown procedures, this plug minimizes debris collection and simplifies washdown processes. It accommodates cords from 0.375 to 0.875 inches in diameter and is rated for single-phase, 125V AC operation at up to 20 amps.

Key Features of the HUBBELL 20A Watertight Locking Plug:

• Material: Constructed with thermoplastic elastomer housing and nickel-plated brass blades and contacts for durability.


• Moisture & Dust Resistance: Rated IP69K; UL Listed Types 4, 4X, 12, 6, and 6P for watertight performance.


• Chemical & Impact Resistant: Rated for exposure to specified environmental factors.


• UV Stabilized: Exposed materials are rated as UV resistant per manufacturer specifications.


• Operating Temperature Range: -40°C to +60°C continuous operation.


• NEMA Configuration: L5-20P locking configuration with polarized design


• Cord Accommodation: Accepts cord sizes from 0.375" to 0.875" diameter; supports wire sizes ranging from minimum of 16/3 SJ or equivalent up to maximum of 10/3 S or equivalent types.


• Screw Terminals: Standard wiring style using screw terminals for secure wire attachment.


• Standards Compliance: Meets ANSI standards as well as NEMA WD-1 and WD-6 requirements.
