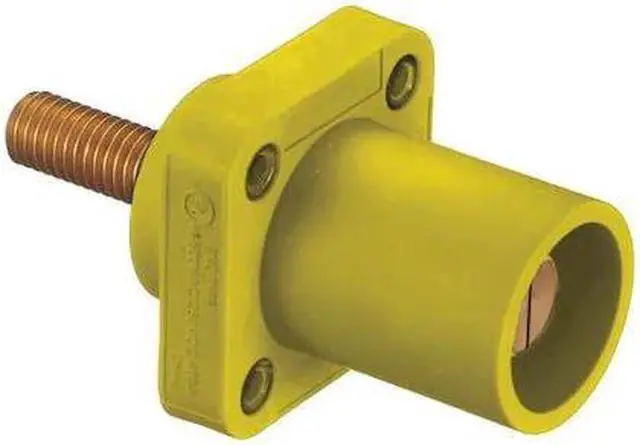

HUBBELL WIRING DEVICE-KELLEMS HBLMRSY Receptacle, 4-4/0, Male, Ylw, Threaded

The HUBBELL Receptacle, Series 16, is a single pole male receptacle rated for use in high ampacity electrical connections. It accommodates wire sizes from #4 AWG to 4/0 AWG and features a threaded stud terminal connection with through hole mounting. The housing is constructed from thermoplastic elastomer and includes screw terminals.

Key Features of the HUBBELL Series 16 Male Receptacle:

• Amperage Rating: Rated up to 400 A (300/400A AC/DC)


• Voltage Rating: Supports up to 600V AC or 250V DC


• Cable Range: Accepts #4 AWG to 4/0 AWG conductors


• Terminal Connection Type: Threaded stud with screw terminals


• Material: Brass contacts; thermoplastic elastomer housing


• NEMA Enclosure Ratings: Types 12, 3R, and 4X


• Mounting Style: Through hole mounting with included hardware


• Standards Compliance: Meets ANSI/NFPA 70, NEC, UL Listed, cUL Listed requirements
