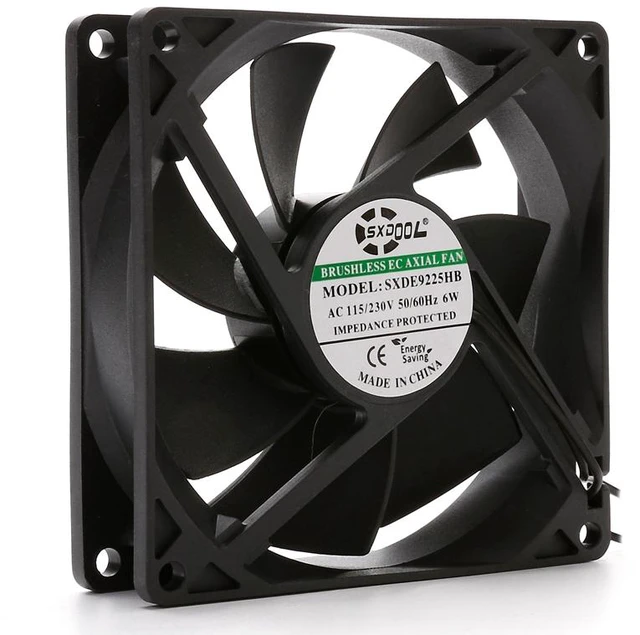

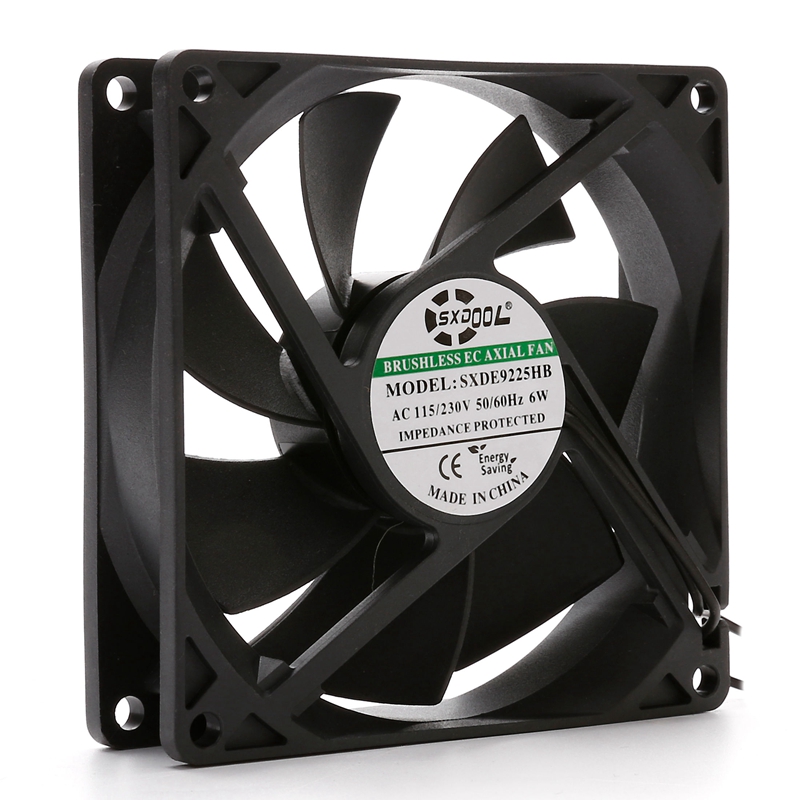

A compact EC fan for equipment ventilation
92 mm frame | 25 mm depth | Dual ball bearings
Choose the 92 x 92 x 25 mm frame for a matching equipment opening. The EC motor uses a 115/230V AC supply and is rated at 6W. Dual ball bearings support the rotating assembly two lead wires connect to the equipment wiring.
Technical Specifications
| Model | SXDE9225HB |
|---|---|
| Dimensions | 92 x 92 x 25 mm |
| Bearing | Dual ball bearing |
| Voltage | 115/230V AC, 50/60Hz |
| Rated power | 6 W |
| Speed | 2850 RPM |
| Airflow | 55.2 CFM |
| Noise | 33 dBA |
| Connection | Two lead wires |
| Products | ||
|---|---|---|
| Frame dimensions | 92 x 92 x 25 mm | 120 x 120 x 25 mm |
| Rated airflow | 55.2 CFM | 102 CFM |
| Rated power | 6 W | 7 W |
Does this model use AC or DC power?
SXDE9225HB is rated for 115/230V AC, 50/60Hz. Check the fan label and equipment wiring before connection.
Does this version have a wall plug?
This version has two lead wires. A power-cord kit is a separate configuration.
Can I replace a different 92 mm fan with it?
Compare depth mounting holes supply voltage and wiring as well as the 92 mm frame size before choosing a replacement.
