High-speed cooling with PWM control and FG feedback
SXD8038B24H-PWM | 24V DC | 0.80A | 10000 RPM nominal

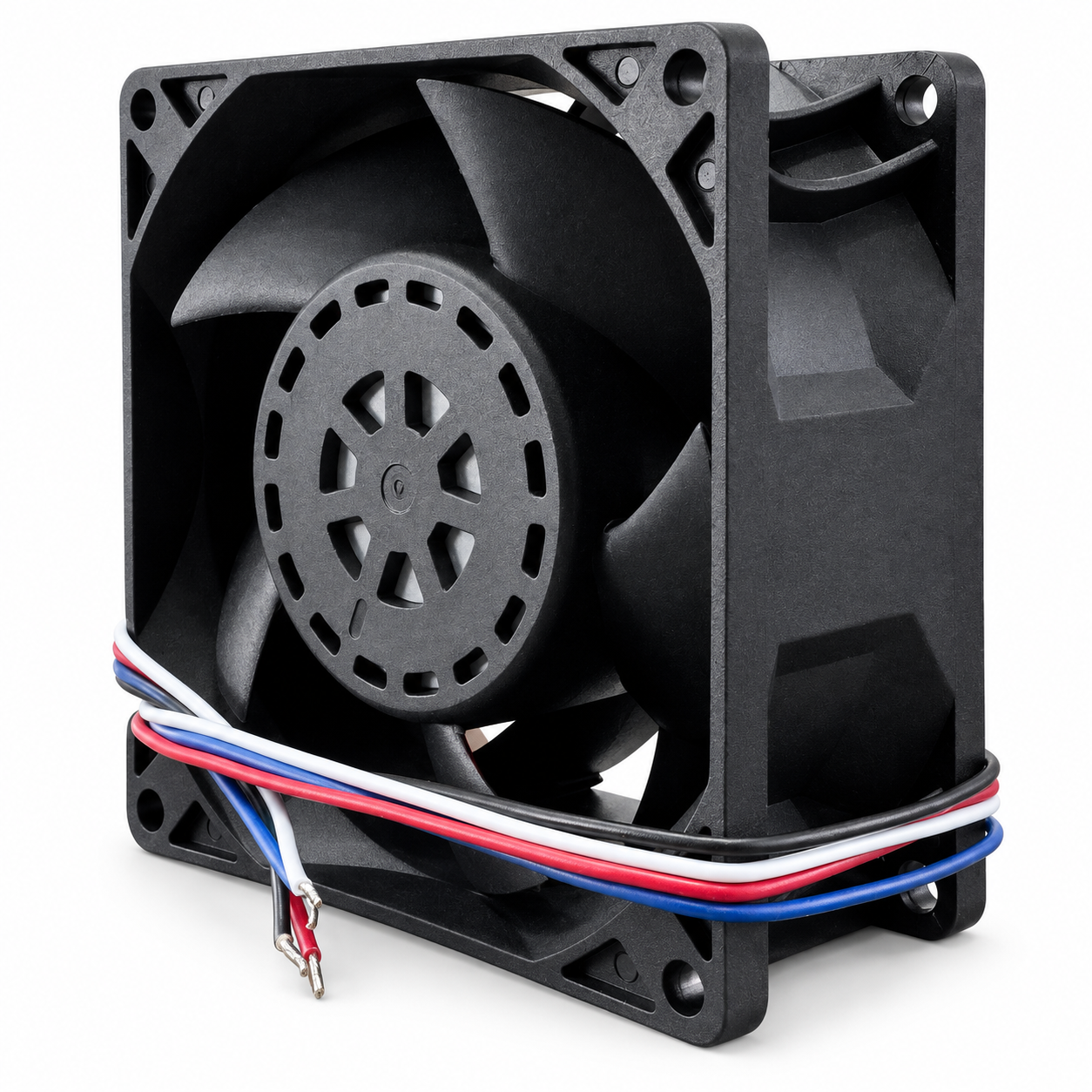

An 8038-format brushless DC fan for equipment ventilation. Dual ball bearings and a copper center tube support the mechanical design. Separate PWM and FG signals provide speed control and speed feedback through four standard 300 mm leads. Match the fan to the supply voltage, controller interface, mounting space and system airflow requirements.
Copper center tube

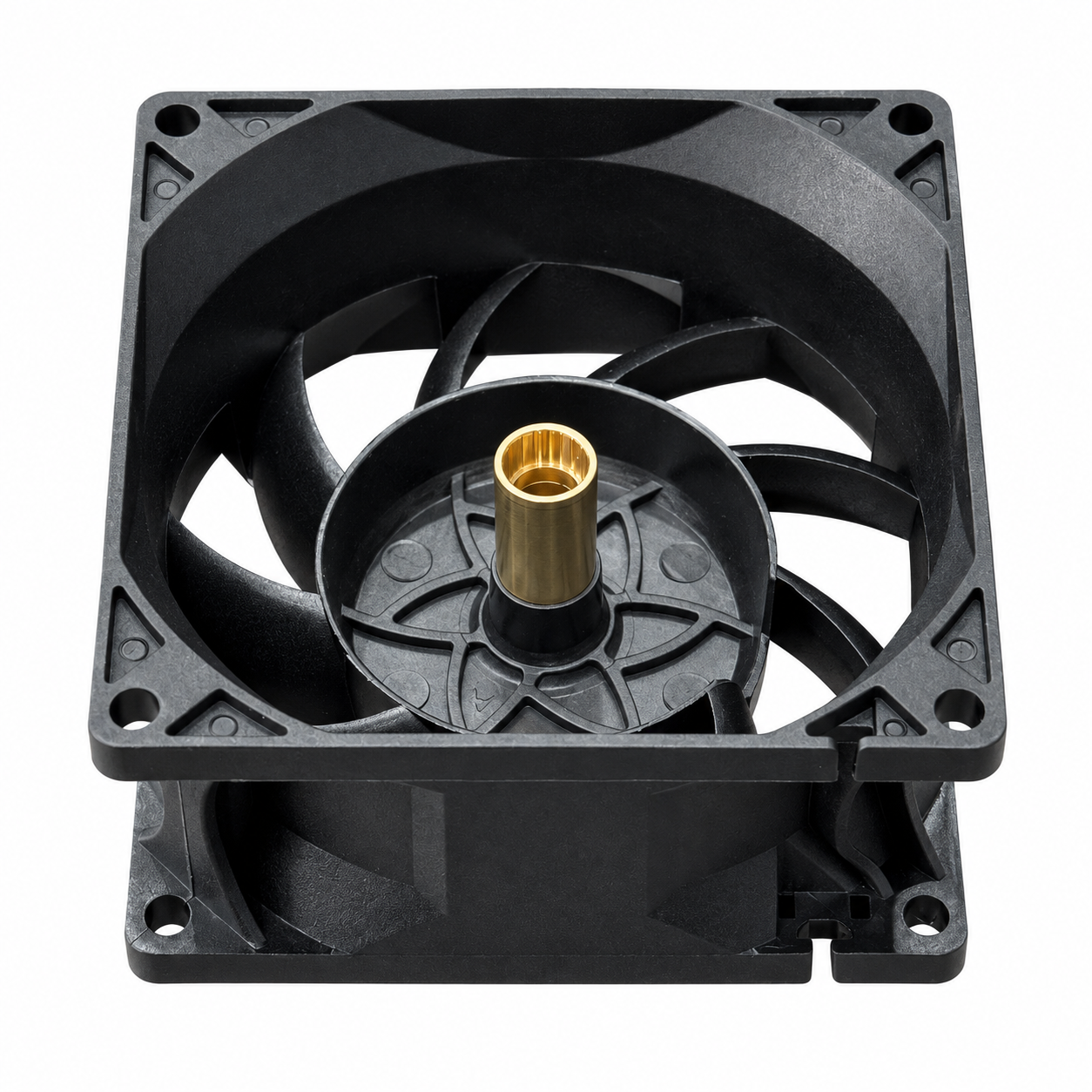

Copper center tube with dual ball bearings. Internal view for illustration; the fan is supplied assembled.
Five-blade impeller

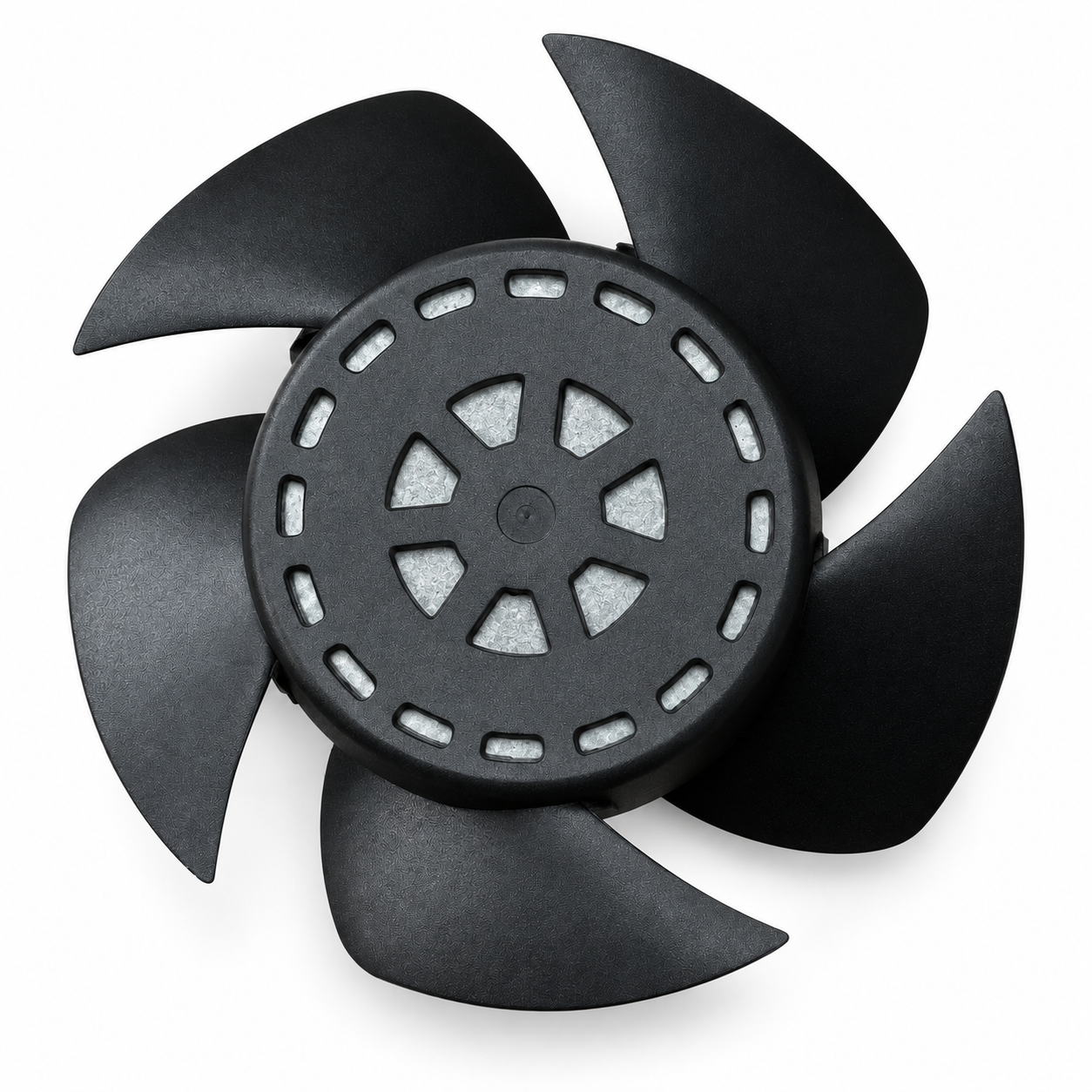

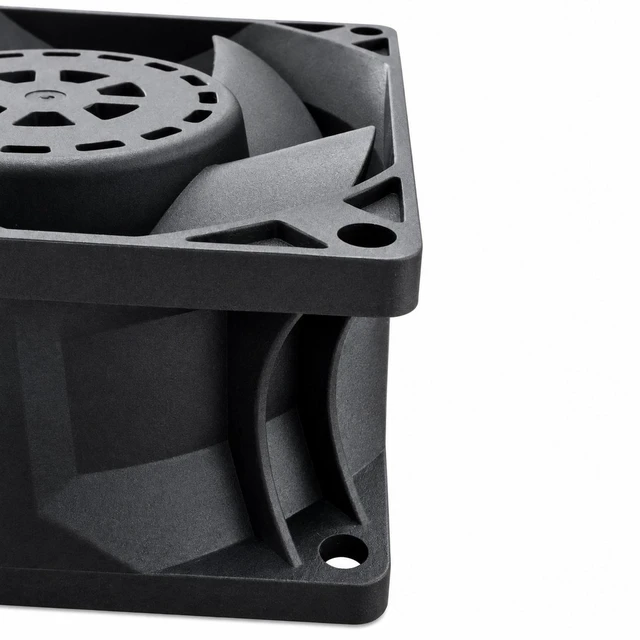

A close look at the impeller geometry used in this high-speed fan. Nominal assembled-fan speed: 10000 RPM.
Rotor and shaft

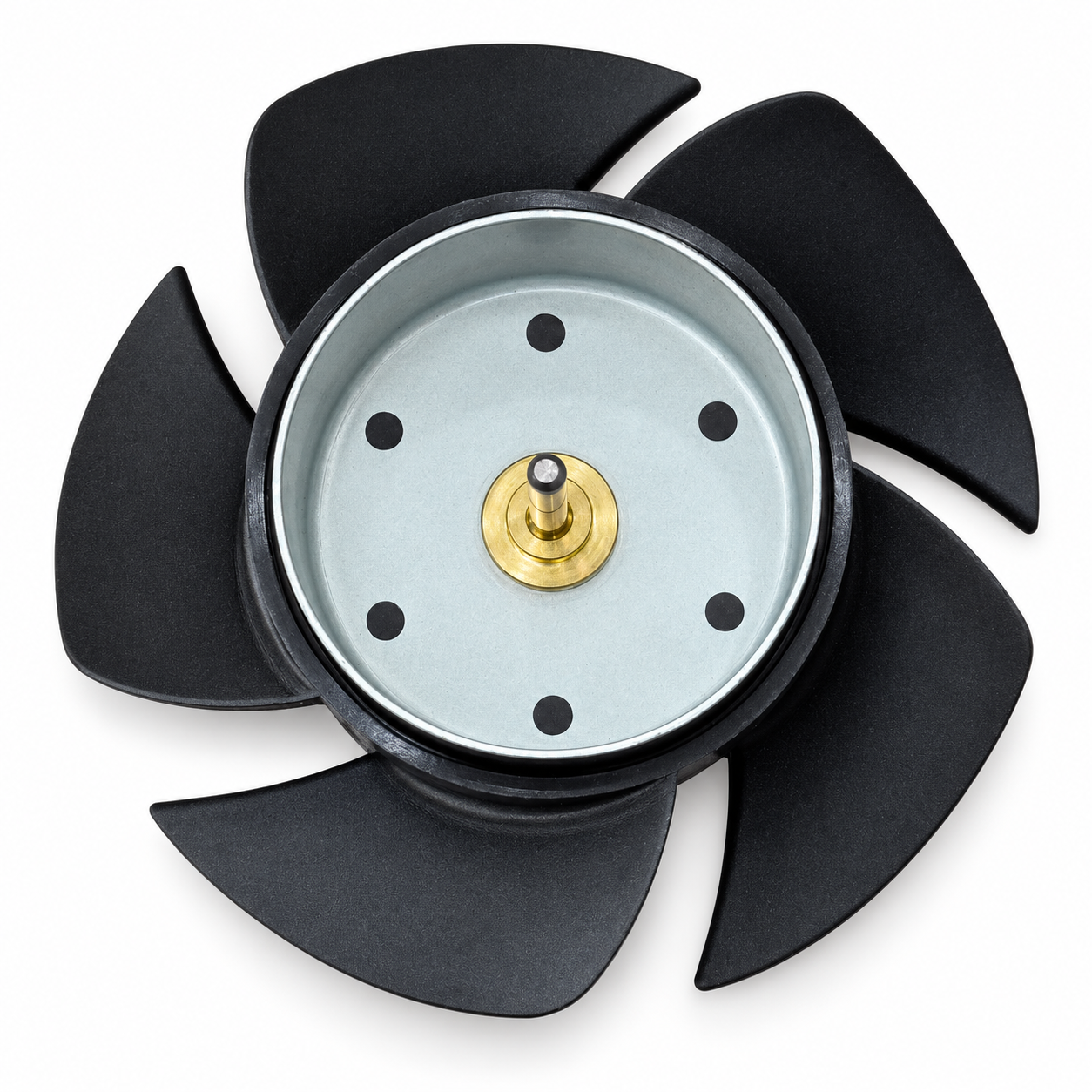

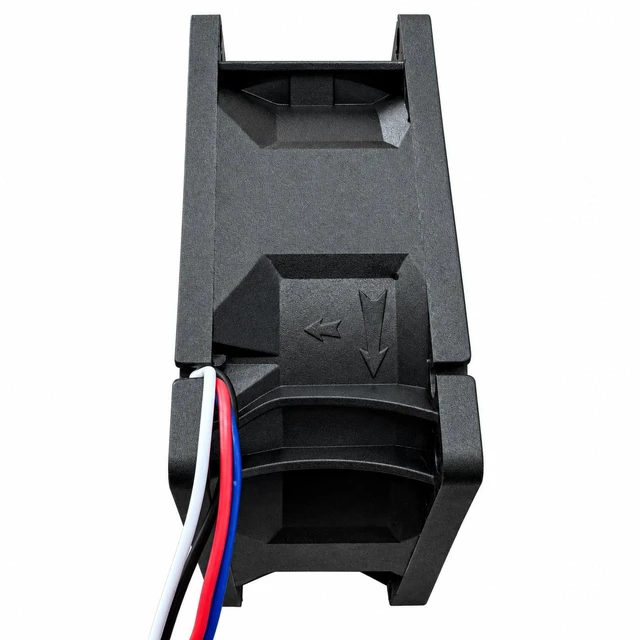

The rear view shows the rotor assembly and shaft. Component photographs help explain the construction of the assembled fan.
Stator and winding detail

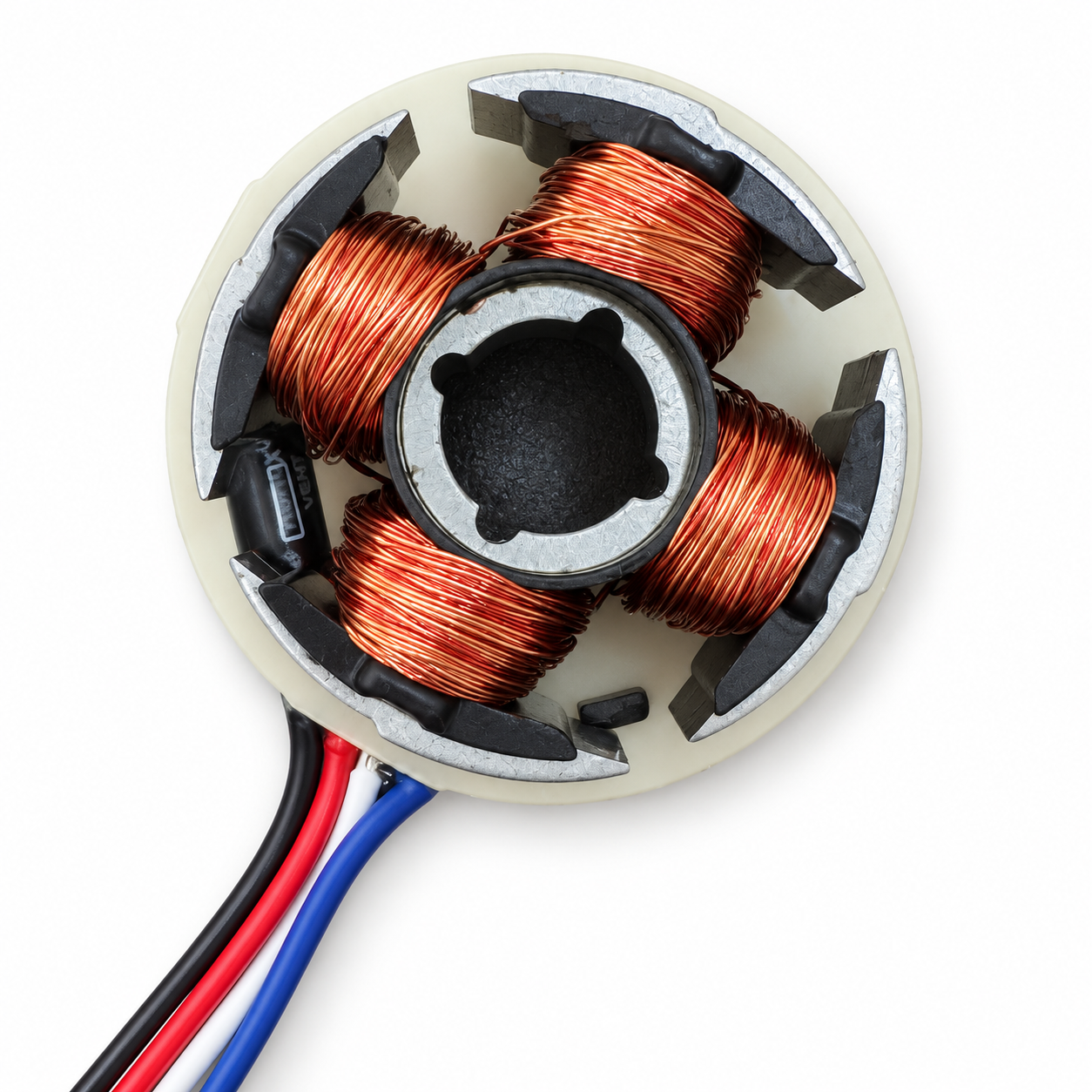

View the stator and winding layout of the brushless DC motor. This internal illustration is not a separate component package.
Control, feedback and installation
Four leads. Two signal functions.
PWM speed control
PWM provides the speed-control input from a compatible controller. Confirm signal specifications before connection.
FG speed feedback

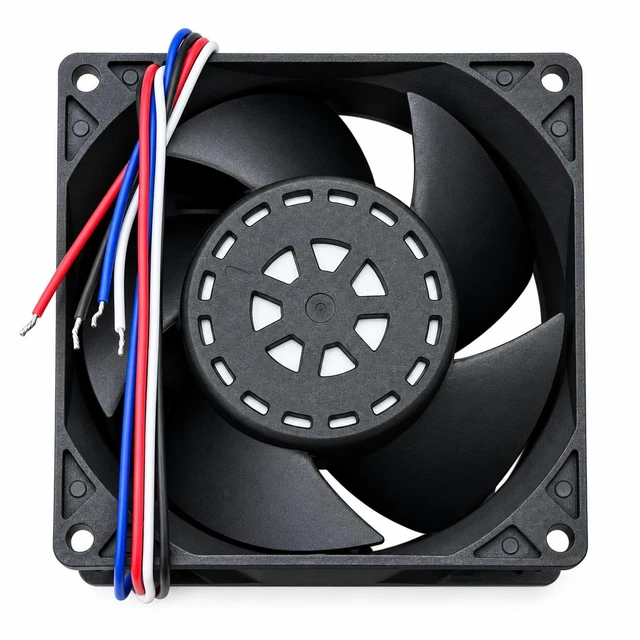

FG provides the speed-feedback signal to compatible monitoring equipment. Four individual leads are supplied as standard; this is not a preinstalled PC 4-pin connector.
Cooling for equipment systems
From server cabinets to industrial controls
Designed for equipment ventilation in AI server cabinets, electrical enclosures, industrial controls, liquid-cooling equipment and EV charging equipment. Select the fan to suit the actual thermal load, airflow resistance, electrical supply and environment. The scene is an application illustration, not a claim of fit with a specific system.
What is included in the standard configuration?
One assembled SXD8038B24H-PWM fan: 24V DC, 0.80A, 10000 RPM nominal, dual ball bearings, copper center tube, PWM control, FG feedback and four individual 300 mm leads. Internal photographs illustrate the construction.
Can protection, speed, connector or lead length be customized?
Protection level, rotational speed, connector and lead length can be specified for a separate configuration. Custom options are not automatically included in this standard listing. Confirm the exact version before ordering.
What should I verify before installation?
Verify the 24V DC supply, mounting space and hole positions, wire assignment, PWM and FG electrical requirements, airflow direction and environmental conditions. Do not assume compatibility with a PC motherboard header or a specific enclosure from the four-wire format alone.
